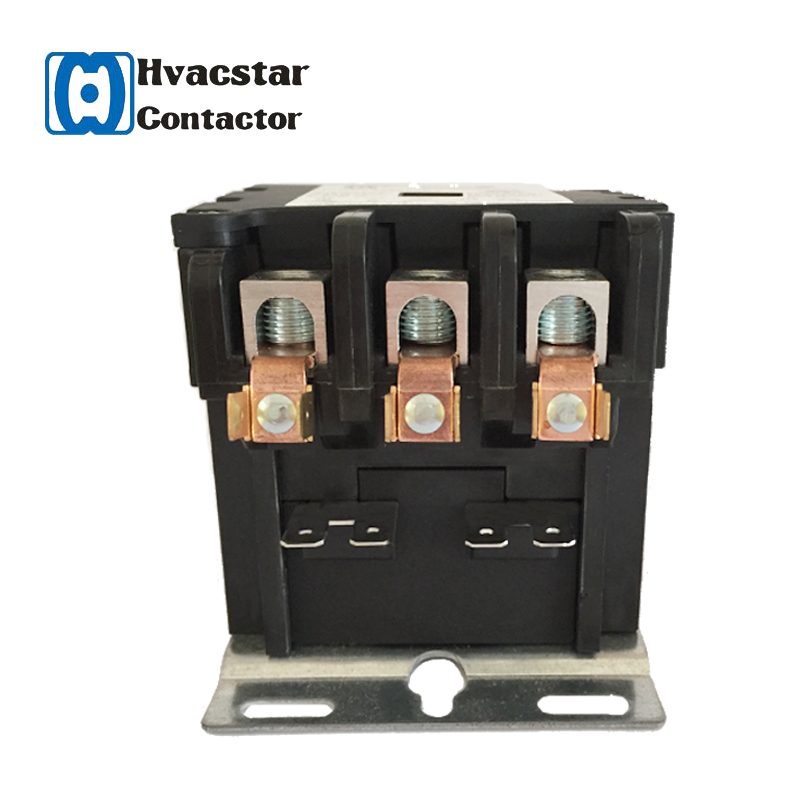

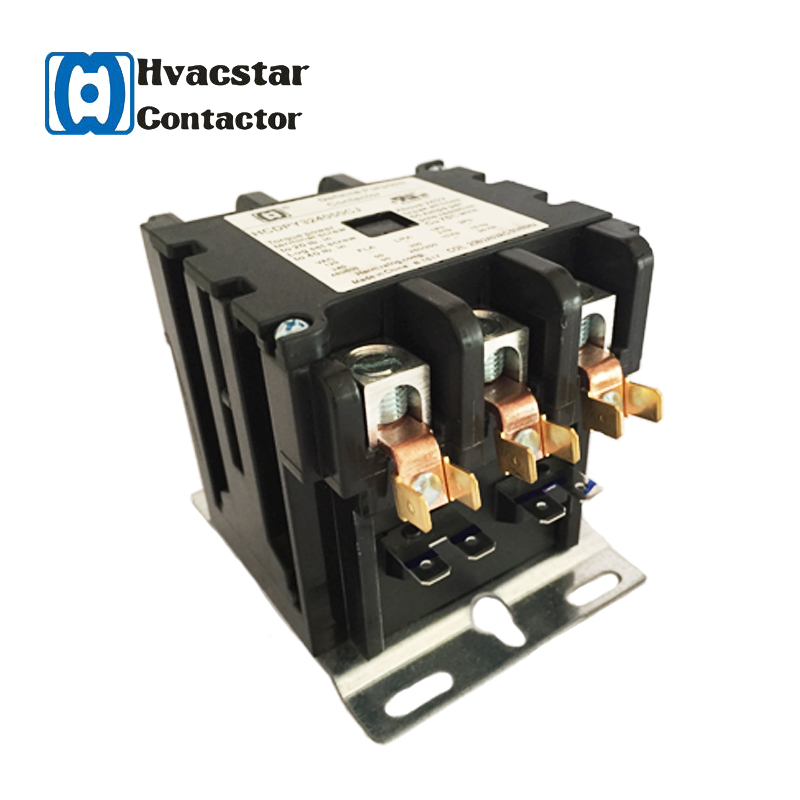

Professional HVAC Contactor
This 3-pole definite purpose magnetic contactor is engineered specifically for reliable switching in air conditioning, refrigeration, and heating systems. It is UL/CUL certified, ensuring it meets rigorous safety and performance standards for electrical equipment. Designed to handle demanding HVAC loads, this electronic contactor provides a secure, durable connection for compressors, fans, and motor loads.
Technical Specifications
Rated Current
50 A
Rated Current
- Number of Poles
- 3
- Coil Voltage
- 208/240VAC
- Operating Voltage
- 24-277V
- Certifications
- ULCUL
Performance Data
Load Ratings Table
| Voltage (VAC) | FLA (A) | LRA (A) | HP |
|---|---|---|---|
| 240 | 40 | 200 | 3 |
| 277 | 40 | 200 | 3 |
| 480 | 30 | 180 | 5 |
| 600 | 25 | 150 | 5 |
Installation & Quality
Installation Requirements
- Torque power terminal screw: 35-45 lb-in
- Wire type: Cu 75C
- Wire gauge: AWG 14-4
- Quality Assurance
- Yes
Commercial Terms
Ordering Information
- OEM/ODM available
- 100% self-inspection and testing before packing
- Delivery time: 15-20 days after deposit
- Payment: 30% deposit, balance against B/L copy
