3-Pole AC Contactor for HVAC Applications
This 3-pole AC contactor is designed for HVAC applications. It is suitable for use in air conditioning and refrigeration systems.
Technical Specifications
Product Overview

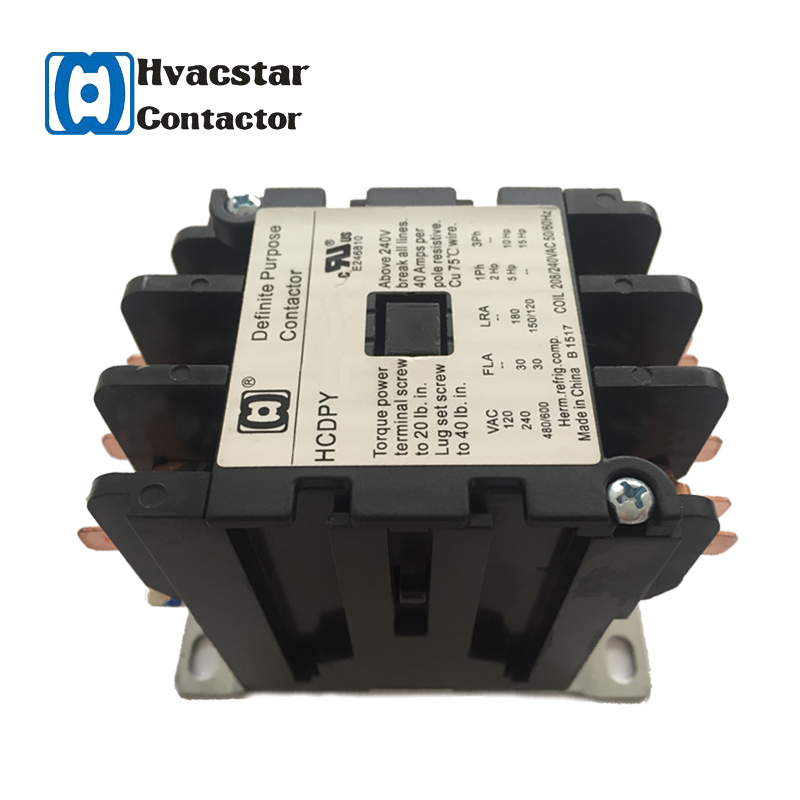

HVAC Definite Purpose Contactor
This 3-pole definite purpose contactor is engineered specifically for reliable performance in HVAC and refrigeration applications. It features robust construction designed to handle varying voltage loads and motor requirements, ensuring consistent operation in air conditioning systems. The unit is built for secure installation with specified torque requirements and is compatible with copper wiring for high-temperature environments.
Technical Specifications
- Number of Poles
- 3
- Coil Voltage
- 208/240VAC
- Operating Frequency
- 60 Hz
- Resistive Rating per Pole
- 40 A
- Wire Compatibility
- Cu 75°C
Performance Ratings
Load Ratings
| Voltage (VAC) | FLA (A) | LRA (A) | HP Rating |
|---|---|---|---|
| 120 | 30 | 180 | 2 HP |
| 240 | 30 | 180 | 5 HP |
| 480/600 | 30 | 150 | 15 HP |
Installation
Terminal Torque Requirements
20 lb. in.
Terminal Screw
40 lb. in.
Lug Set Screw
Compliance & Support
Certifications
UL Certified
After-Sales Support
- OEM/ODM available
- 100% self-inspection and testing
- Replacement policy for quality issues
