Technical Specifications
Overview

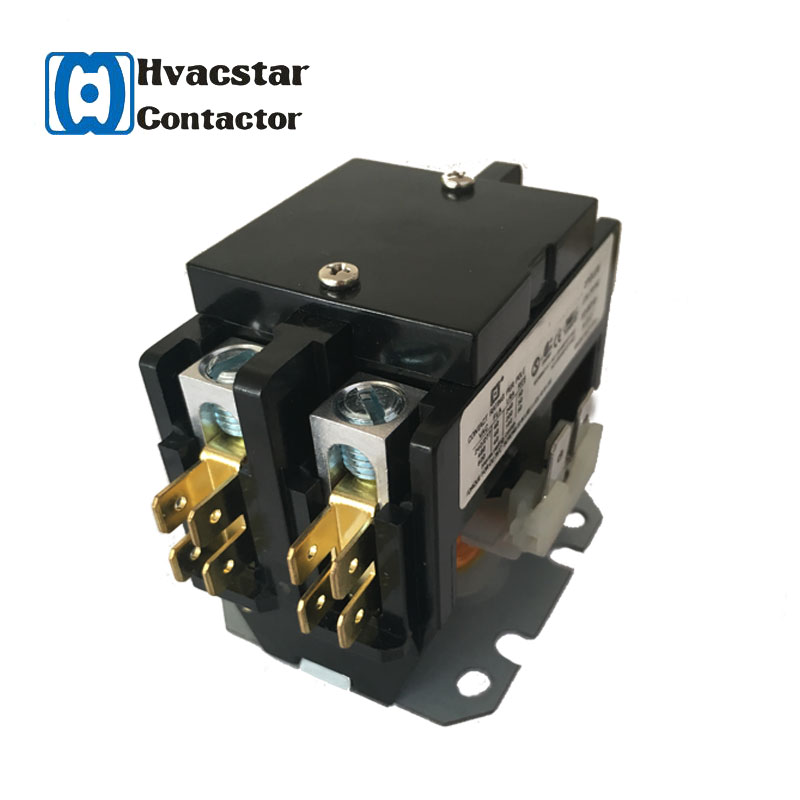

Reliable Definite Purpose Contactor
This definite purpose magnetic contactor is engineered for demanding HVAC and refrigeration applications. Designed for reliability, it ensures consistent switching performance for motors, compressors, and resistive loads in industrial control systems. With robust construction and easy installation features, this unit provides a dependable solution for equipment maintenance and new system integration.
Electrical Specifications

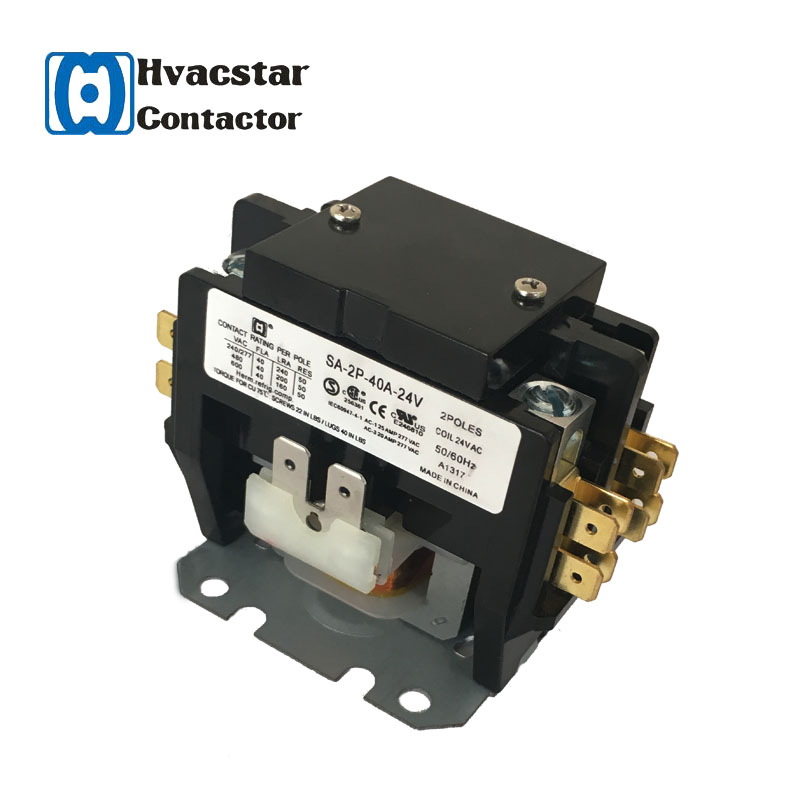

Contact Ratings Table
| Voltage (VAC) | FLA (A) | LRA (A) | Resistive (A) |
|---|---|---|---|
| 240 | 40 | 240 | 50 |
| 480 | 40 | 200 | 50 |
| 600 | 40 | 160 | 50 |
- Rated Current (FLA)
- 40 A
- Coil Voltage
- 24VAC
- Operating Frequency
- 50/60Hz
- Number of Poles
- 2
Installation & Compliance
Torque Requirements
22 in-lbs
CU IST Screws
40 in-lbs
Lugs
Compatible Applications
- HVAC Systems
- Refrigeration Compressors
- Heating Systems
- Industrial Control
- Certifications
- CULCEIEC60947-4-1
