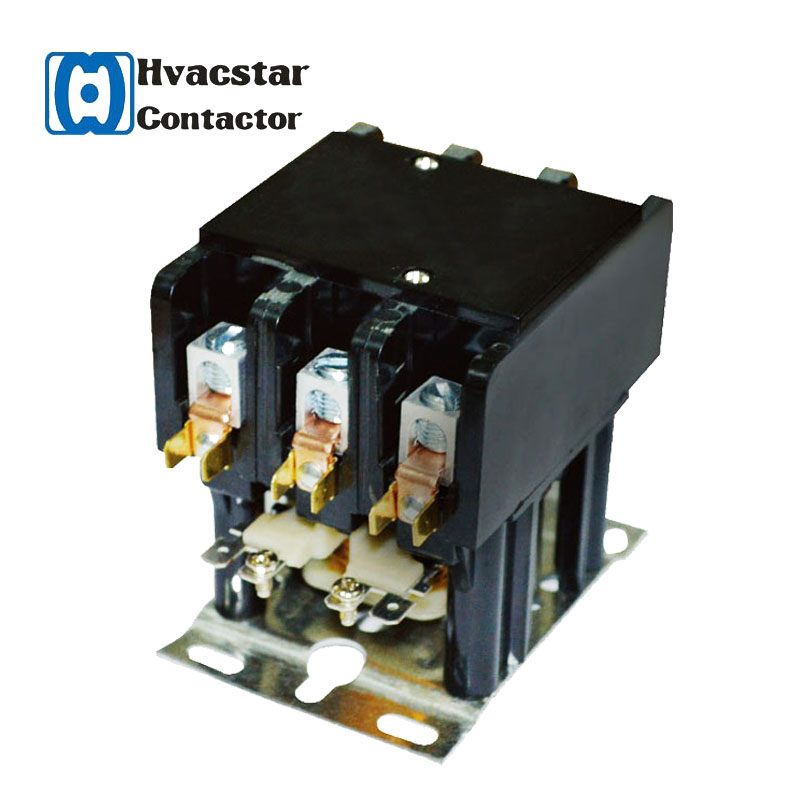

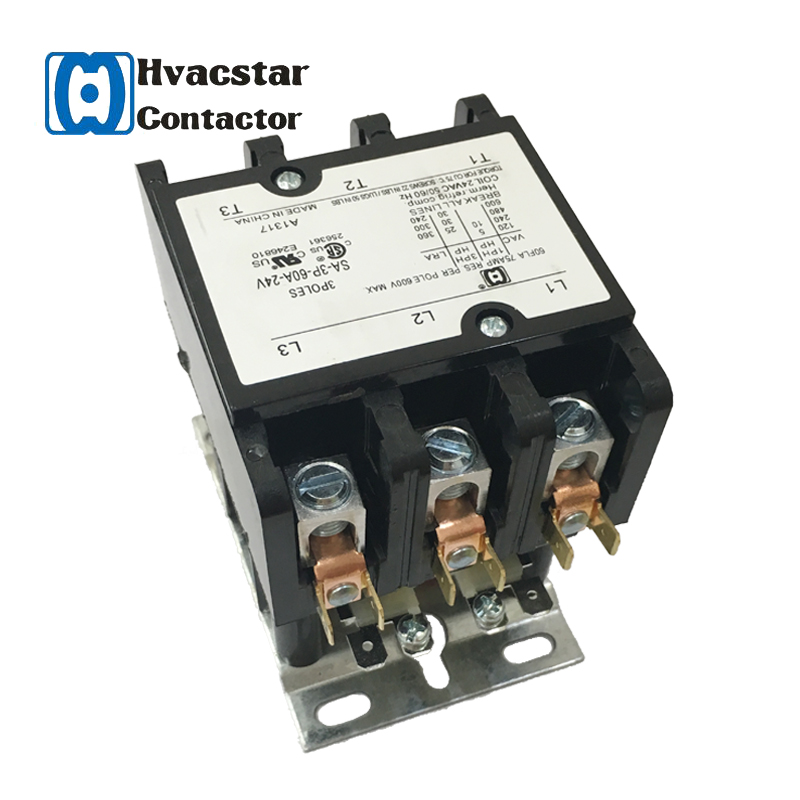

High-Performance HVAC Definite Purpose Contactor
This 3-pole AC contactor is specifically engineered for demanding HVAC and refrigeration applications, providing reliable switching for compressors, motors, and heating elements. Certified to international standards including CUL, IEC60947-4, and GB14048.4, it ensures safety and long-term durability in industrial environments. With a compact magnetic design and electronic responsiveness, it is an ideal choice for frequently starting machines and interlocking devices.
Electrical Ratings
Current Ratings
30 A
Rated Current
60 A
Full Load Amps (FLA)
75 A
Resistive Load
Voltage Specifications
| Parameter | Value |
|---|---|
| Max Rated Voltage | 660V |
| Coil Voltage | 24VAC |
| Frequency | 50Hz / 60Hz |
| Phase | 3-Phase |
Performance Data
Horsepower & LRA Ratings
| Voltage (VAC) | Horsepower (HP) | Locked Rotor Amps (LRA) |
|---|---|---|
| 120 | 5 | 25 |
| 240 | 10 | 360 |
| 480 | 30 | 300 |
| 600 | 30 | 240 |
Physical & Installation
Outline Dimensions
- Width: 3.563 inches
- Height: 4.055 inches
- Depth: 3.19 inches
- Mounting Slot Spacing: 3.25 inches
Terminal Torque Requirements
- Screw Torque: 22 in-lbs
- Lug Torque: 50 in-lbs
- Conductor Type: Copper (CU) 75°C
Compliance & Applications
Primary Applications
- Air Conditioning (HVAC) Systems
- Refrigeration Compressors
- Heating Elements
- Star-Delta Starters
- Mechanical Interlocking Devices
- Certifications
- CULCEISO 9001:2008IEC60947-4GB14048.4CQC
