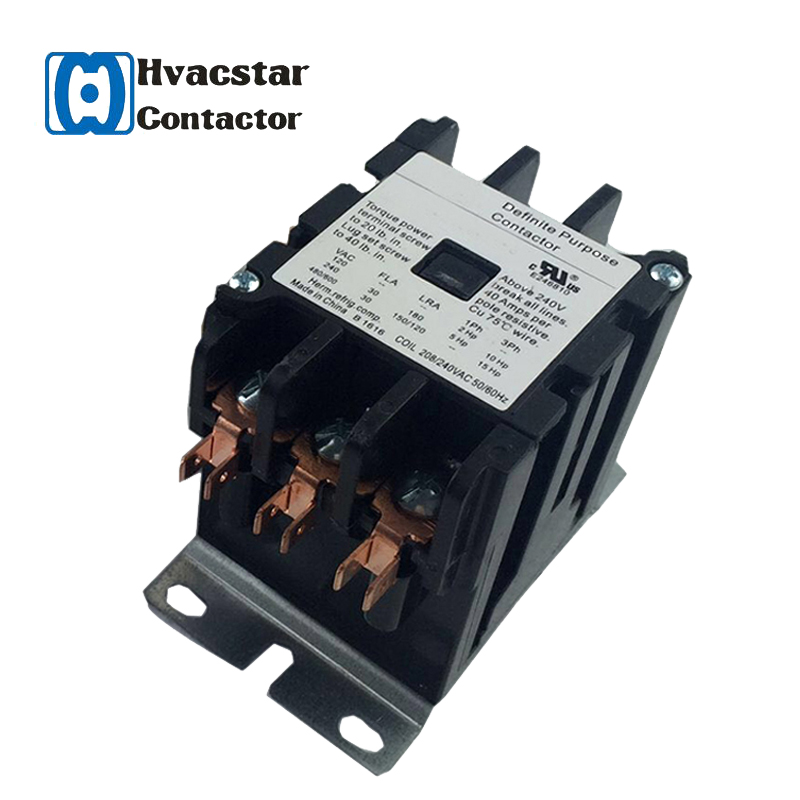

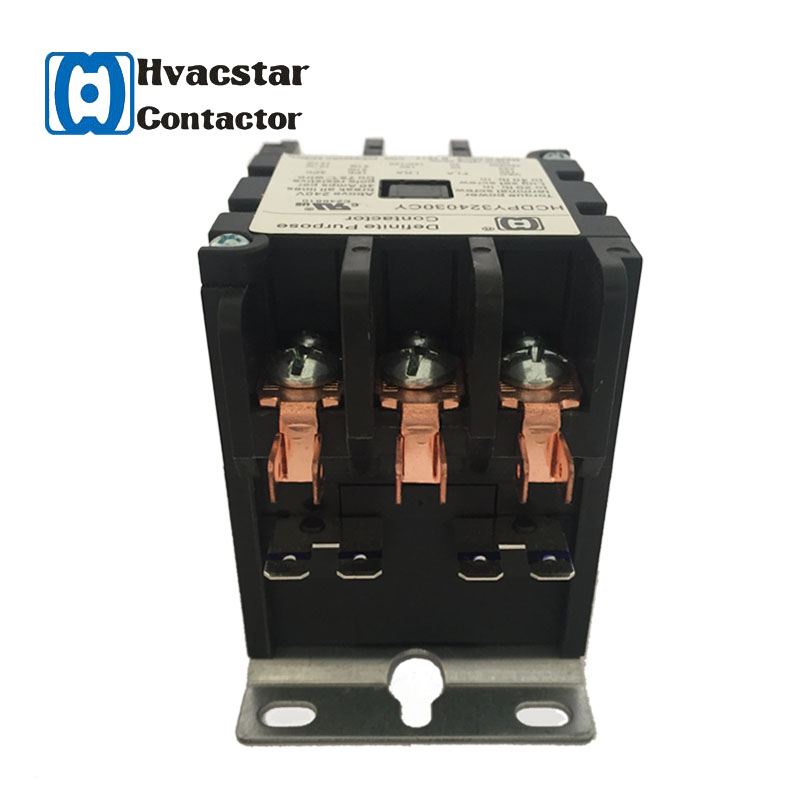

3-Pole 30A AC Magnetic Contactor
This definite purpose contactor is designed for commercial applications such as air conditioners, refrigeration, and resistive heating. The device is built to meet electrical and mechanical requirements for definite purpose contactors in USA and Canada.
Technical Specifications
Product Overview
Reliable HVAC Switching
This 3-pole magnetic contactor is engineered for demanding HVAC and refrigeration environments, offering robust switching capabilities for compressors and motors. It is CUL certified, ensuring it meets rigorous safety and performance standards for professional installations. Designed for versatility, this unit handles significant electrical loads while maintaining reliable operation in heating and cooling systems.
Electrical Specifications
- Rated Current
- 30 A
- Number of Poles
- 3
- Coil Voltage
- 208/240VAC 50/60Hz
- Resistive Load Rating
- 40 A/pole
Installation & Compliance
Torque Specifications
| Component | Torque Rating |
|---|---|
| Power Terminal Screw | 20 lb. in. |
| Lug Set Screw | 40 lb. in. |
- Certifications
- CUL Certified
- Conductor Requirements
- Copper conductors rated at 75°C
Service & Support
Service Policies
- Free samples available for testing (shipping paid by customer)
- OEM/ODM support
- 100% self-inspection and testing prior to packing
- Replacement guarantee for quality issues
