Technical Specifications
Overview

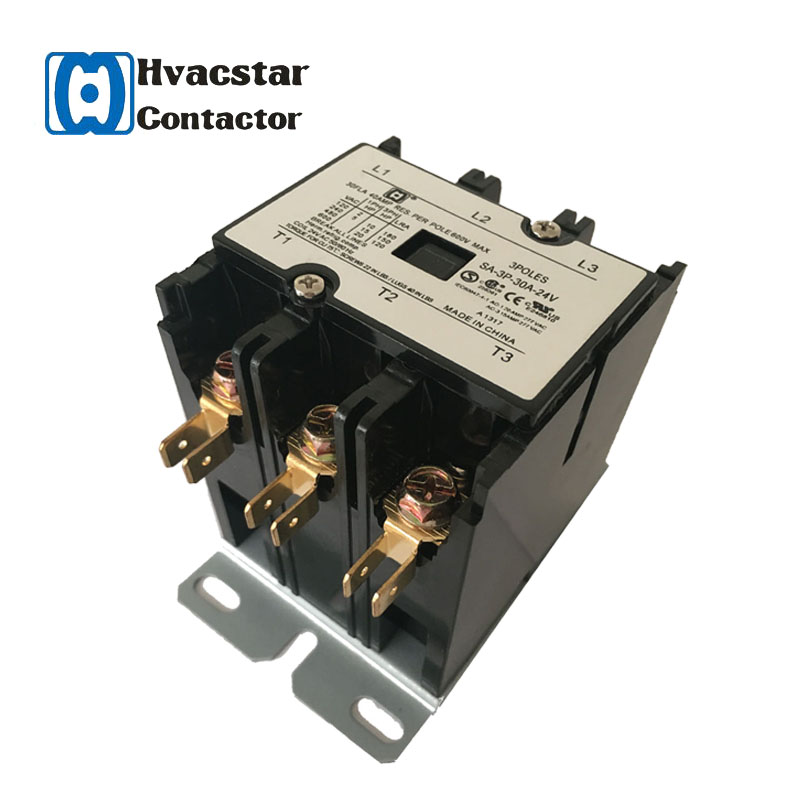

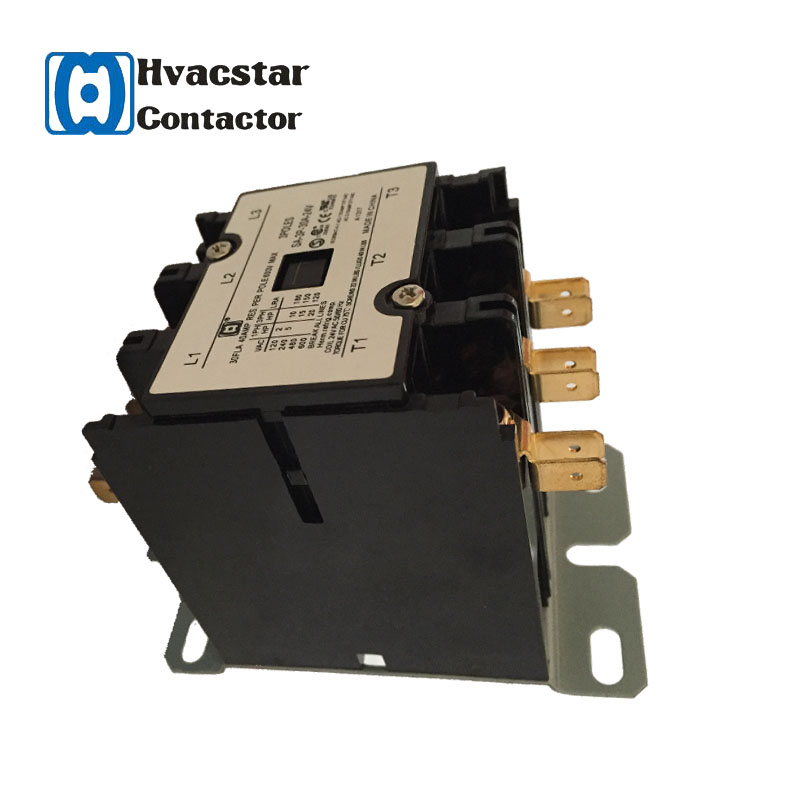

Professional HVAC Contactor
This 3-pole magnetic contactor is engineered specifically for HVAC applications, offering reliable performance for demanding electrical control tasks. It handles a full load amperage (FLA) of 30A and supports resistive loads up to 40A per pole. Designed for versatility, this unit is compatible with a wide range of voltages up to 600V, making it a robust component for air conditioning and refrigeration systems.
Electrical Ratings
Performance Specifications
| Voltage (VAC) | Horsepower (HP) | FLA (A) | LRA (A) |
|---|---|---|---|
| 120 | 2 | 30 | 180 |
| 240 | 5 | 30 | 150 |
| 480 | 10 | 30 | 60 |
| 600 | 10 | 30 | 30 |
- Coil Voltage
- 24 VAC
- Resistive Load
- 40 A
Physical and Installation
- Number of Poles
- 3
- Terminal Torque
- 40 in-lbs / 4.5 Nm
Compliance
Certifications
CE
Service and Support
- Service Options
- OEM AvailableODM Available100% Inspection
