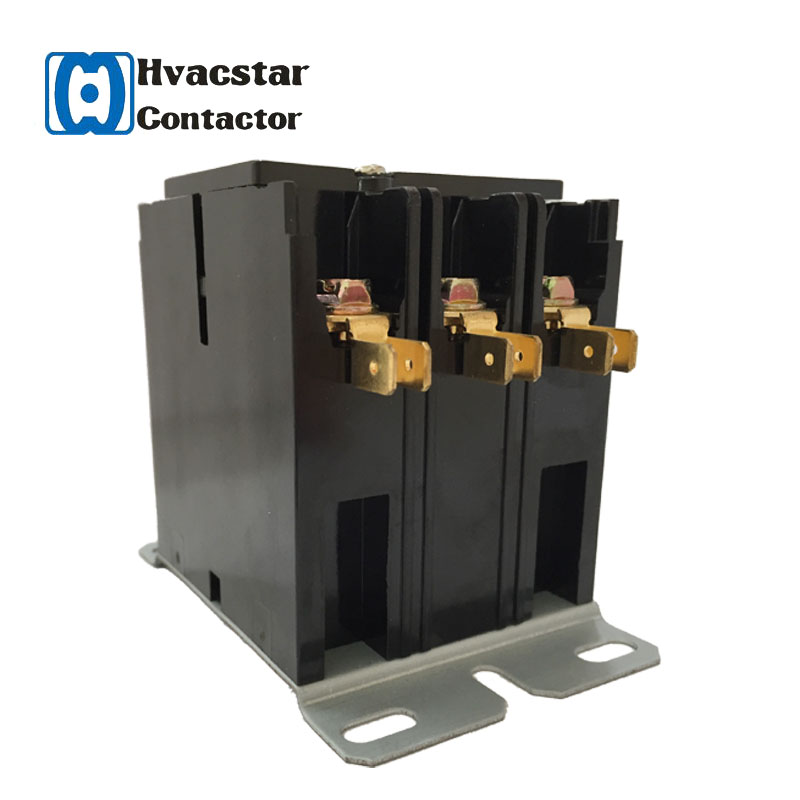

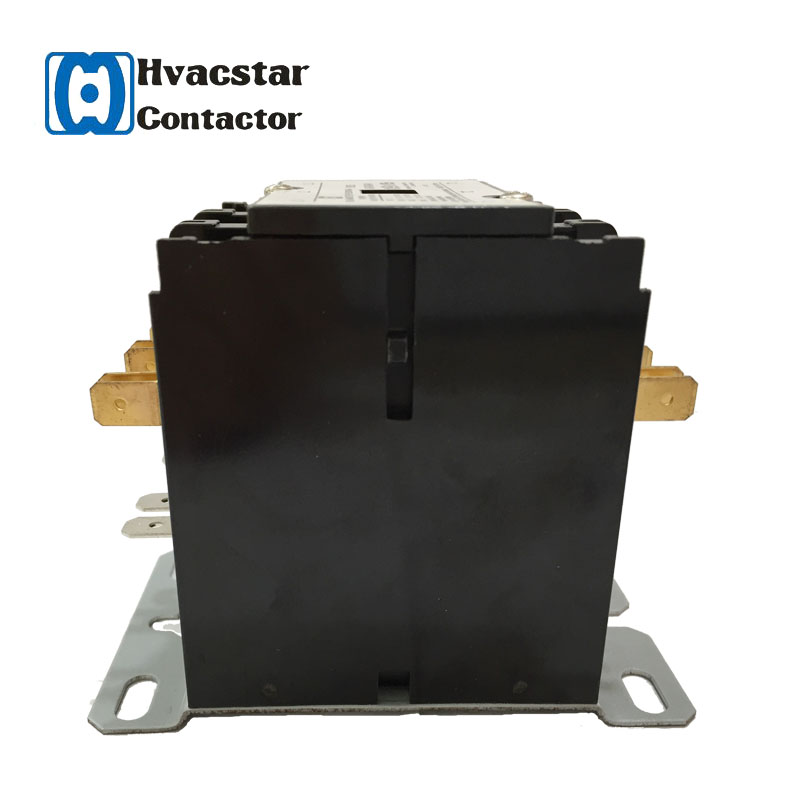

3-Pole 25A AC Definite Purpose Contactor
This 3-pole AC contactor is rated for 25A and designed for definite purpose applications. It is suitable for use in HVAC, refrigeration, resistive heating, and lighting systems.
Technical Specifications
Product Overview
High-Performance Definite Purpose Contactor
This 3-pole definite purpose contactor is engineered for reliable performance in demanding commercial HVAC and refrigeration applications. Designed to meet or exceed strict electrical and mechanical standards, it provides a cost-effective solution for switching air conditioners, resistive heating, and lighting systems. Its robust construction ensures durability and flexibility across a wide range of installation requirements.
Electrical Specifications
Locked Rotor Amps (240/480/600V)
- 360
- 300
- 240
- Number of Poles
- 3
- Full Load Amps (FLA)
- 60 A
- Resistive Amps
- 75 A
- Coil Voltage
- 120 V
- Frequency
- 50/60 Hz
Performance & Compatibility
Termination Types
| Model FLA | Termination Style |
|---|---|
| 20, 25, 30 | #10-32 screw |
| 40, 50, 60, 75, 90 | Box Lug |
- Temperature Range
- -40°C to +65°C (-40°F to +150°F)
Features
Available Options
1-4 Pole configurations24-600V Coil ratingsScrew/Box/Pressure plate connectionsNEMA mounting baseNO/NC end switch kits
- Standards Compliance
- ULCSA
