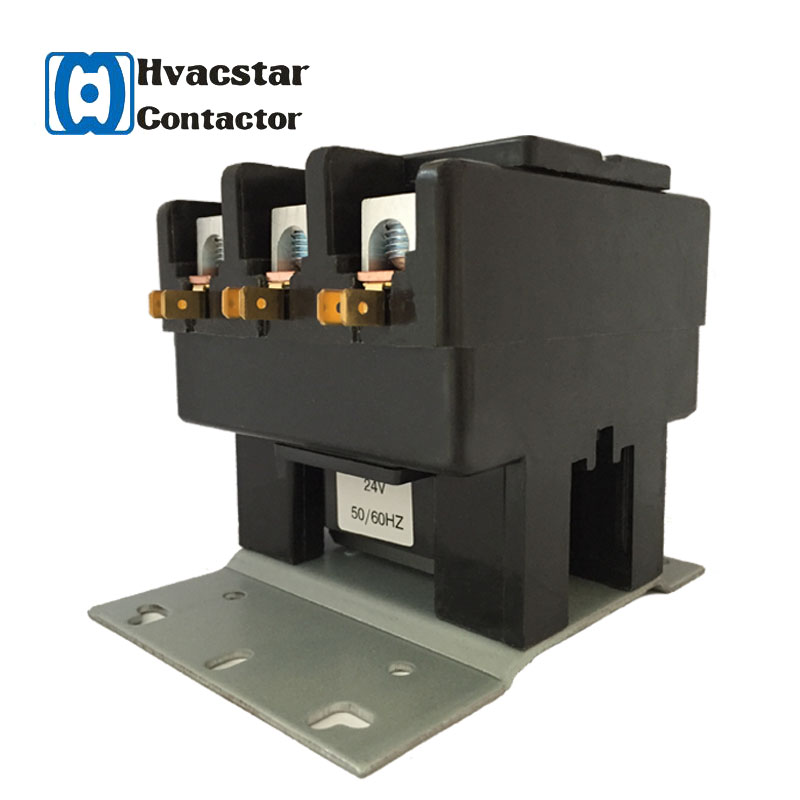

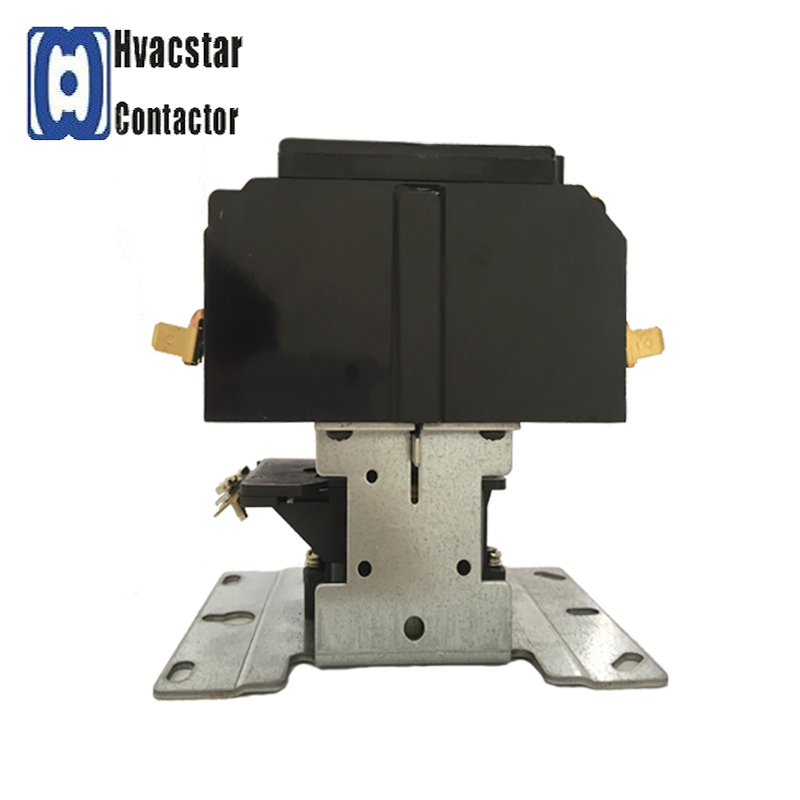

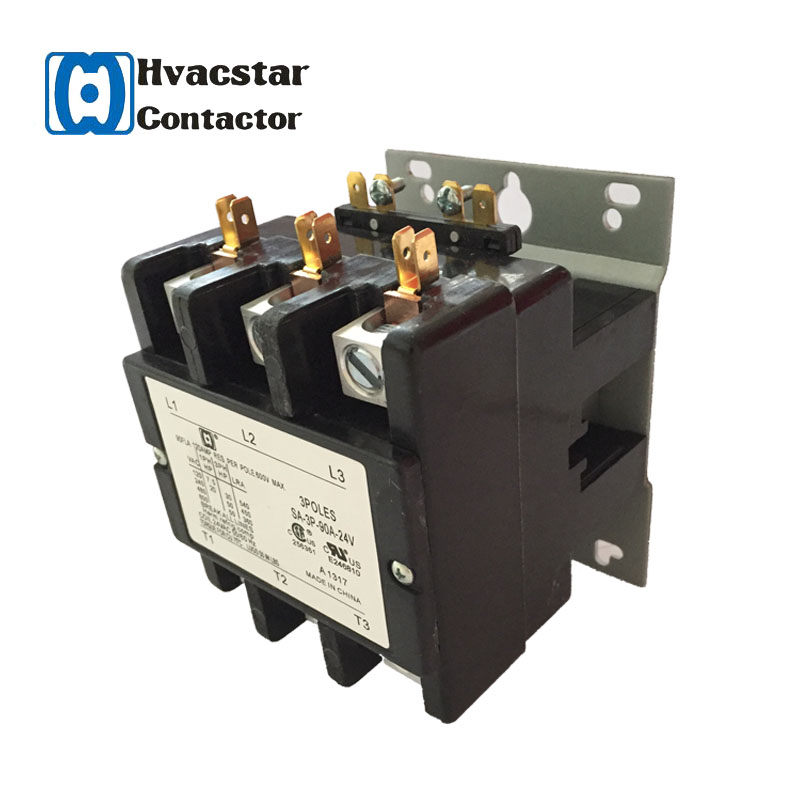

3-Pole 240V 75A AC Definite Purpose Magnetic Contactor
This 3-pole AC definite purpose magnetic contactor is rated for 240V and 75A. It is designed for applications including air conditioners, refrigeration, resistive heating, and lighting.
Technical Specifications
Overview
High-Performance Definite Purpose Contactor
This 3-pole AC definite purpose magnetic contactor is engineered for demanding commercial applications including air conditioning, refrigeration, and resistive heating systems. Designed to meet or exceed rigorous electrical and mechanical standards, it provides a high-performance yet cost-effective solution for motor and load control. Its robust construction ensures reliable switching for compressors and heating elements in diverse HVAC&R installations.
Electrical Ratings
Key Performance Metrics
75 A
Full Load Amps (Inductive)
90 A
Resistive Amps
240 V
Coil Voltage
Locked Rotor Amps (LRA)
| Voltage (V) | LRA (A) |
|---|---|
| 240V | 450 |
| 480V | 375 |
| 600V | 300 |
Technical Configuration
Terminal Specifications
- Designed for Copper (CU) conductors
- Rated for 75°C wiring
- Lug Torque: 50 in-lbs
- Number of Poles
- 3
- Frequency
- 50/60 Hz
Applications
- Target Applications
- Air ConditioningRefrigerationResistive HeatingLightingHermetic CompressorsMotor Control
Compliance & Quality

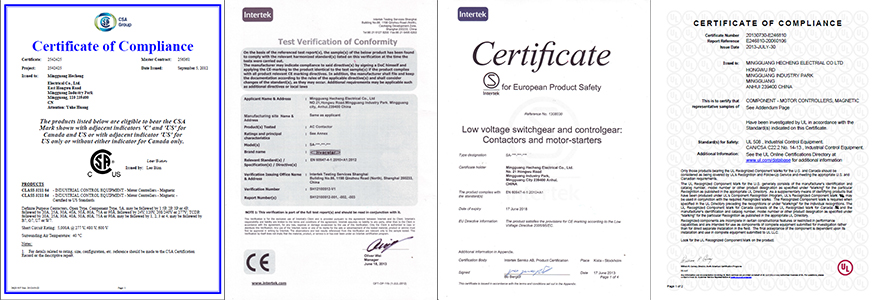

Product Certifications
ULCECCCCSA
- Quality Assurance
- 100% self-inspection and testing before packing
