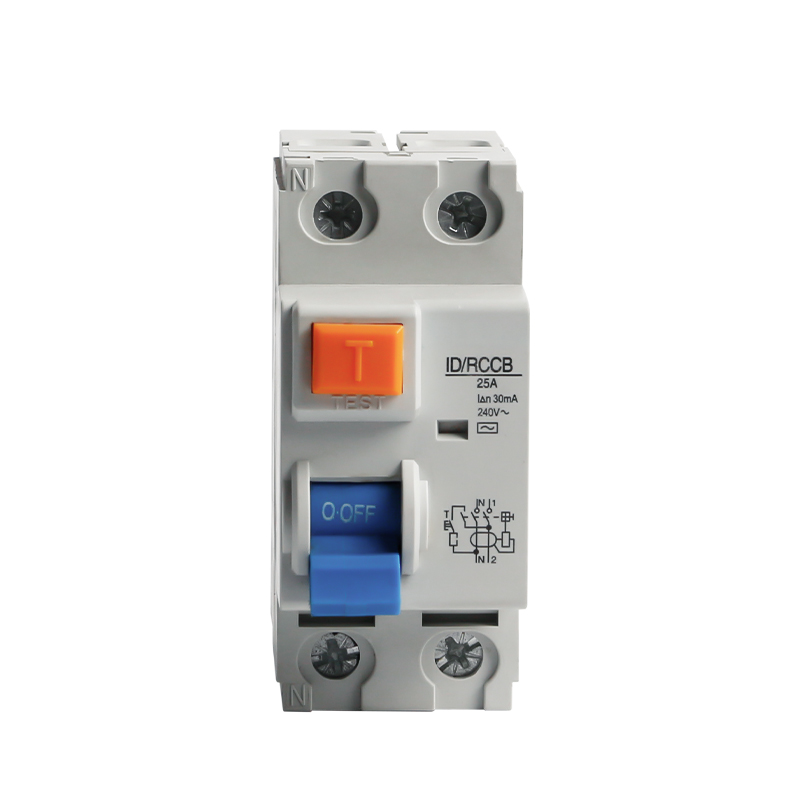

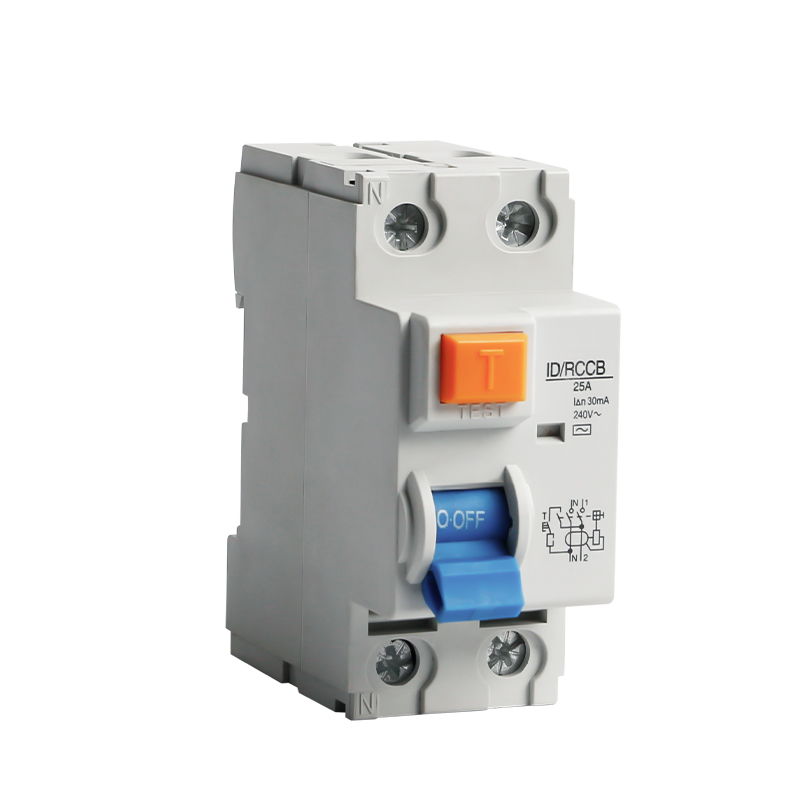

25A 30mA Residual Current Circuit Breaker
This residual current circuit breaker provides overcurrent protection. It is rated at 25A with a 30mA residual current sensitivity and operates at 240V AC.
Technical Specifications
Product Overview
Professional Protection
This Residual Current Circuit Breaker (RCCB) is engineered to prevent personal electric shock by automatically interrupting the circuit when leakage current exceeds defined safety thresholds. Suitable for both direct and indirect contact protection, it provides essential safety for electrical installations. The device features a user-friendly test mechanism to ensure ongoing operational integrity and reliable performance in residential or commercial circuits.
Technical Specifications
Rated Current
25 A
Rated Current
Residual Current Sensitivity
30 mA
Residual Current
- Operating Voltage
- 240V AC
- Device Classification
- Current TypeElectromagneticElectronic
Installation and Safety
Connection Interface
- Neutral (N) terminal
- Line input terminal (IN 1)
- Line output terminal (IN 2)
- Integrated circuit diagram reference
Functional Features
Test ButtonOn/Off Circuit ControlShock Protection
