Technical Specifications
Overview
Professional Inverter MMA Welder
This 250A Inverter Arc Welder utilizes advanced IGBT technology to deliver high output with low energy consumption. Designed for versatility, it features a smart button control panel that allows for precise digital adjustments of current, thrust, and arc striking. Its robust build supports a wide range of power grid adaptations and provides stable welding performance with minimal spatter for various electrode types.
Performance Metrics
Key Performance Metrics
120 A
Max Adjustment Current
62 V
No-load Voltage
85 %
Efficiency
Technical Specifications
- Input Voltage
- AC220V±15% (Automatic 220V/380V switching)
- Frequency
- 50 Hz
- Rated Input Capacity
- 4.8 KVA
- Rated Duty Cycle
- 30 %
Features & Protection
Core Features
- Advanced IGBT inverter technology
- Digital control for improved reliability

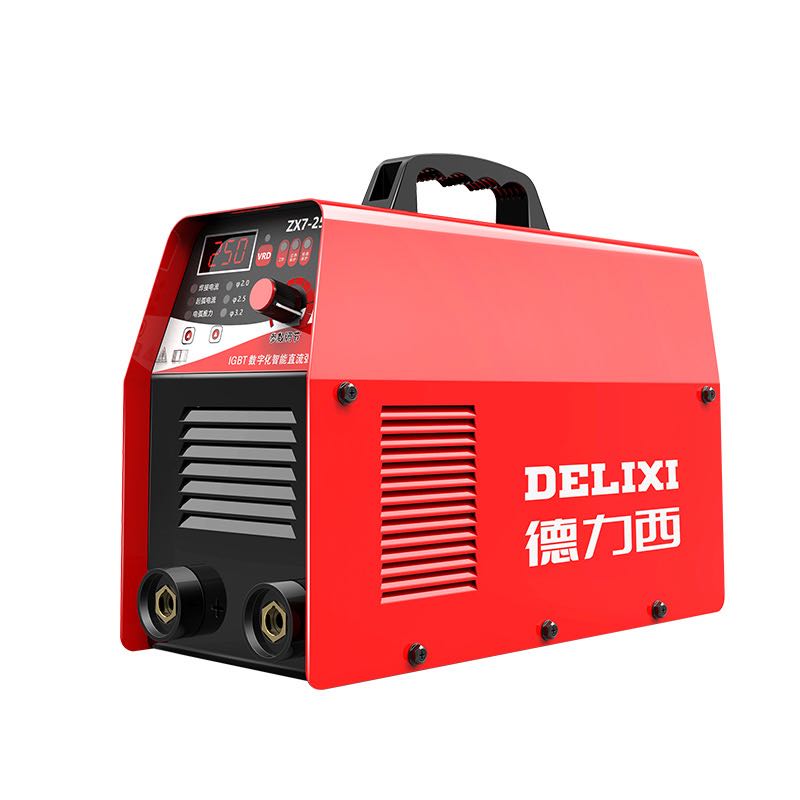

- Smart button common panel
- High-speed cooling fan
- One-click adjustment
- All copper output
- Safety Protections
- Over-currentOver-voltageOver-heat
Physical Properties
- Product Dimensions
- 125mm x 210mm x 300mm
- Net Weight
- 2.83 kg
Applications
Compatible Electrodes
Acid ElectrodesAlkalic Electrodes
Suitable Materials
- Mild Steel
- Stainless Steel
- Ferrous Metals
