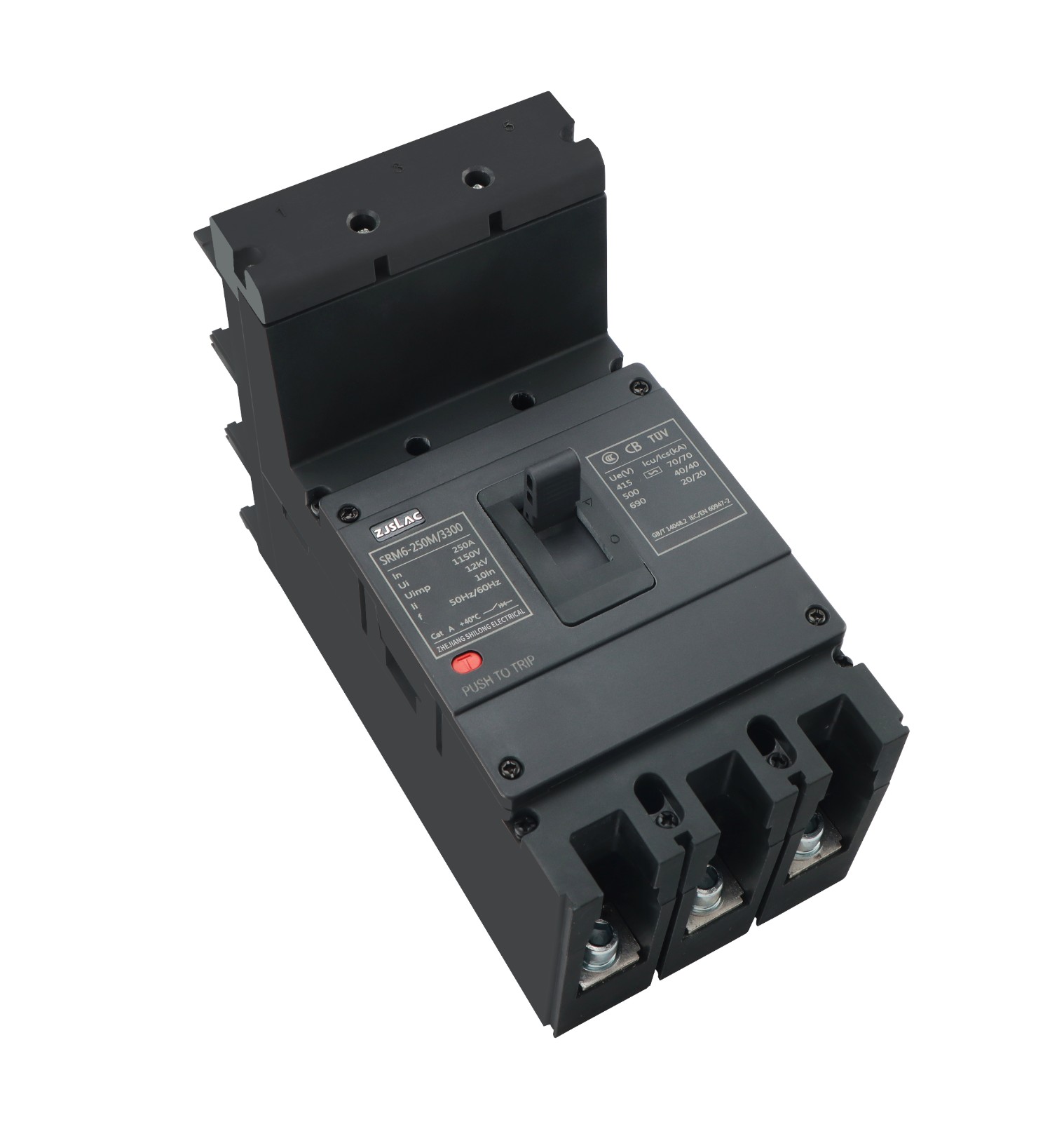

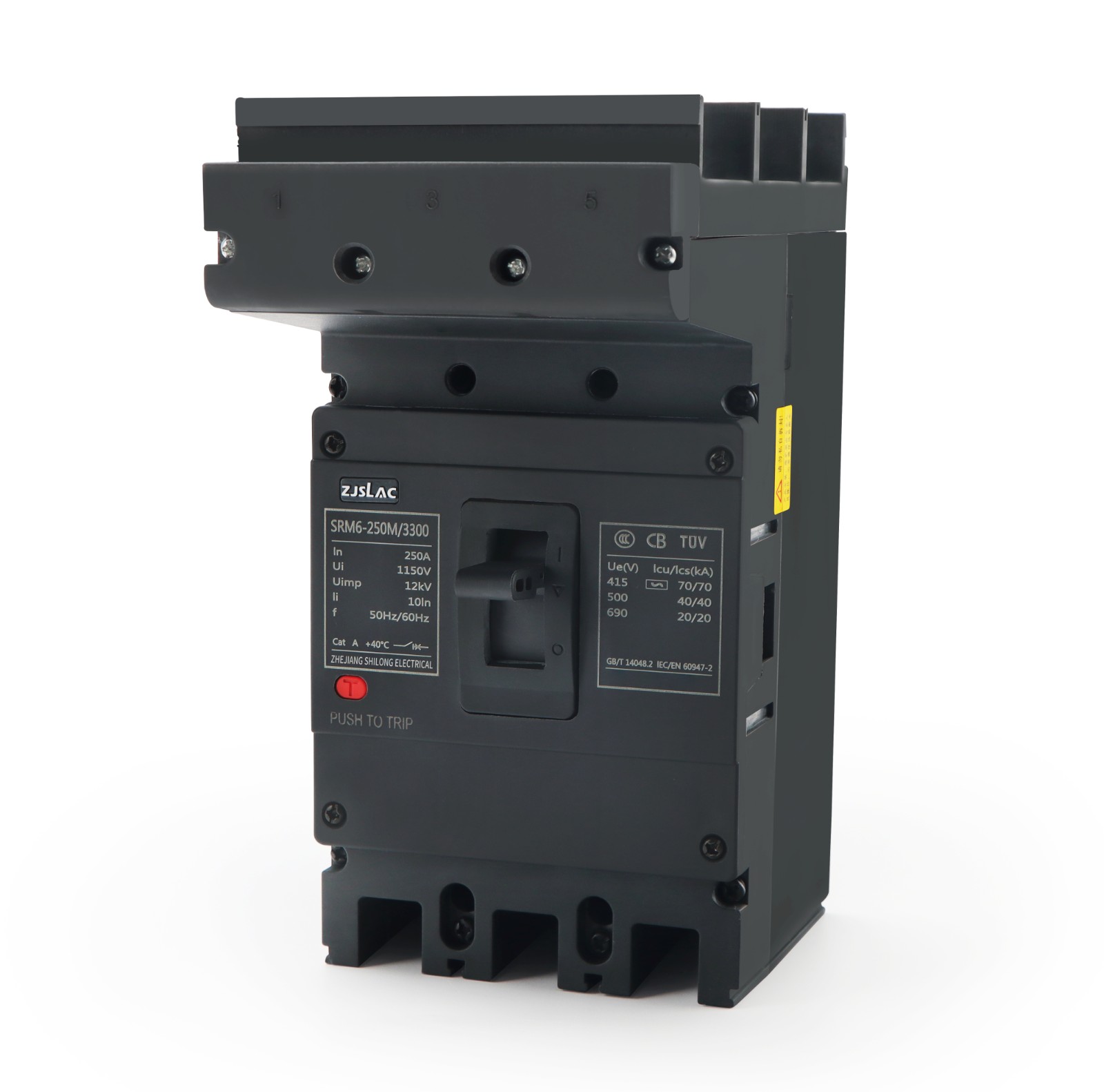

250A Drawout Busbar Molded Case Circuit Breaker
This 250A molded case circuit breaker is designed for drawout busbar type installations. It features a high breaking capacity and is suitable for systems with voltages of 415V, 500V, and 690V.
Technical Specifications
Overview
Professional Grade MCCB
This 3-phase molded case circuit breaker is engineered for robust performance in drawout busbar installations. It offers versatile current ratings and high breaking capacity, making it suitable for demanding industrial and commercial electrical systems. Designed for reliability, it features a manual 'Push to Trip' mechanism and adheres to international safety and quality standards.
Electrical Ratings
Rated Current Range
- 125
- 140
- 160
- 180
- 200
- 225
- 250
Breaking Capacity (Icu/Ics)
| Voltage (V) | Capacity (kA) |
|---|---|
| 415 | 70/70 |
| 500 | 40/40 |
| 690 | 20/20 |
Key Performance Metrics
1,150 V
Insulation Voltage (Ui)
12 kV
Impulse Voltage (Uimp)
50 Hz/60Hz
Frequency
Technical Specifications
- Number of Poles
- 3
- Over Current Release Type
- Thermal-magnetic
- Mechanical Life
- 20000 cycles
- Electrical Life
- 8000 cycles
Compliance
Certifications
CCCCBCETüV
- Standards Compliance
- IEC/EN 60947-2GB/T 14048.2
