Technical Specifications
Overview

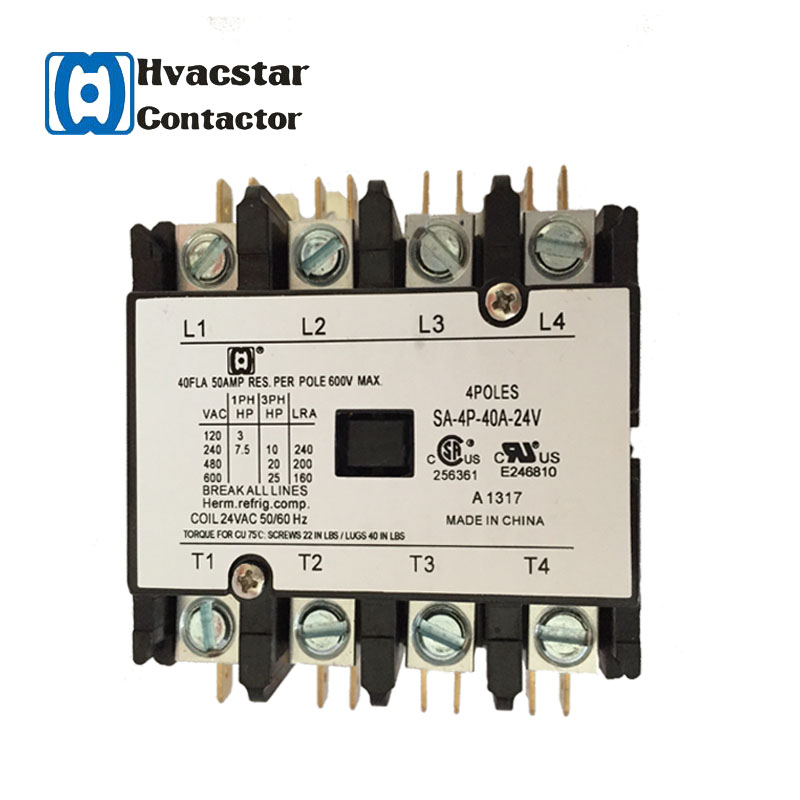

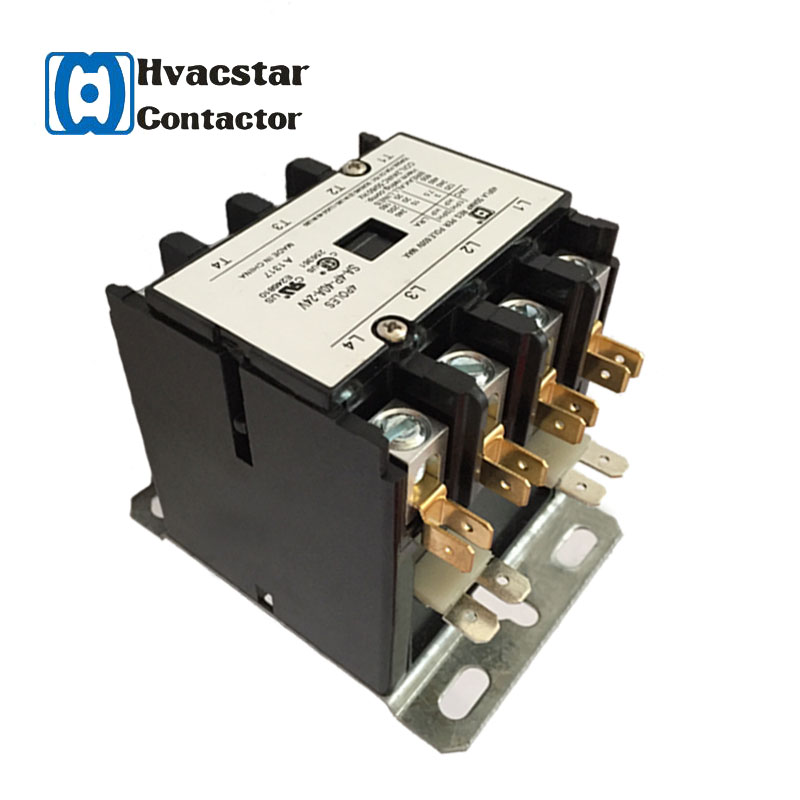

Professional HVAC Contactor
This high-performance AC contactor is engineered specifically for HVAC and refrigeration systems, providing reliable electrical switching for compressor and fan motor circuits. Featuring a 24V coil voltage and a robust 50A resistive rating per pole, it is designed to handle demanding electrical loads with ease. The unit is built for durability and safety, meeting rigorous industry standards for hermetic refrigeration compressor applications.
Electrical Ratings
- Coil Voltage
- 24V AC (50/60 Hz)
- Maximum Voltage
- 600 V
- Resistive Current Rating
- 50 A
- Full Load Amps (FLA)
- 40 A
Configuration
- Pole Configuration
- 4-Pole
- Phase Compatibility
- 1-Phase3-Phase
Performance Metrics
Horsepower Ratings
| Voltage (VAC) | 1-Phase (HP) | 3-Phase (HP) |
|---|---|---|
| 120 | 3 | 0 |
| 240 | 7.5 | 10 |
| 480 | 0 | 20 |
| 600 | 0 | 25 |
Locked Rotor Amps (LRA)
240 A
at 240VAC
200 A
at 480VAC
160 A
at 600VAC
Installation & Safety
Recommended Torque
- Screws: 22 in-lbs (CU 75C)
- Lugs: 40 in-lbs (CU 75C)
Certifications
ULCSA
