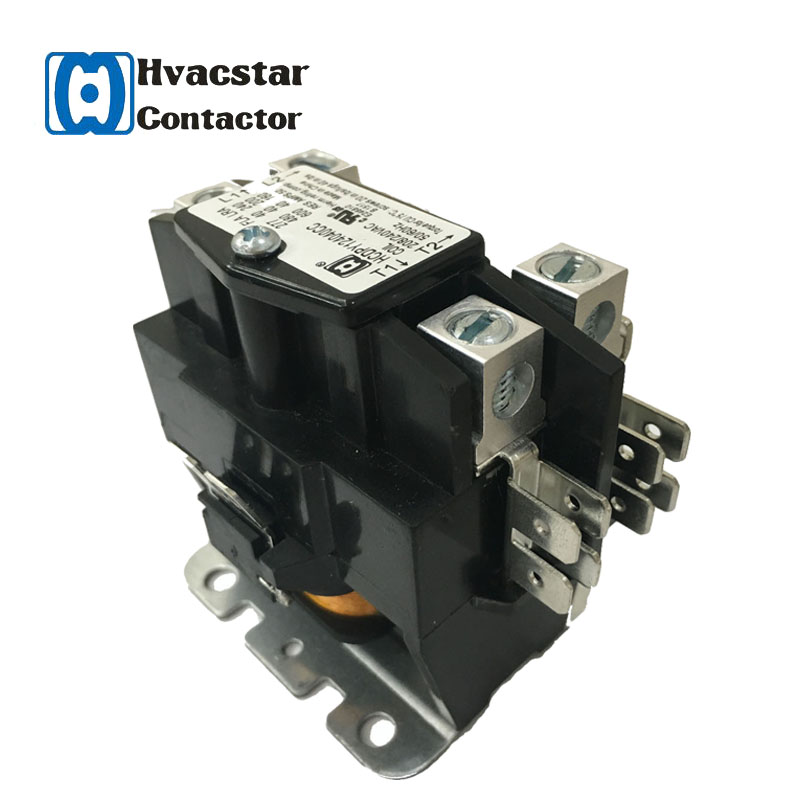

24V 40A 1P AC Definite Purpose Contactor
This definite purpose contactor series is compact and offers three convenient wiring methods: quick connect terminals, screws, or box lugs. These models come standard with combination quick connect terminals and screws compatible with hex, slotted, or Phillips screwdrivers.
Technical Specifications
Product Overview
Reliable HVAC Switching
This 24V 40A single-pole definite purpose contactor is engineered for robust performance in air conditioning and refrigeration applications. Designed for reliability, it effectively controls compressors, fans, and other electrical loads within HVAC&R systems. The unit features a 24VAC coil and is built to withstand high-demand operational environments.
Electrical Ratings
Performance Metrics
40 A
Full Load Amps (FLA)
24 VAC
Coil Voltage
50 A
Resistive Amps

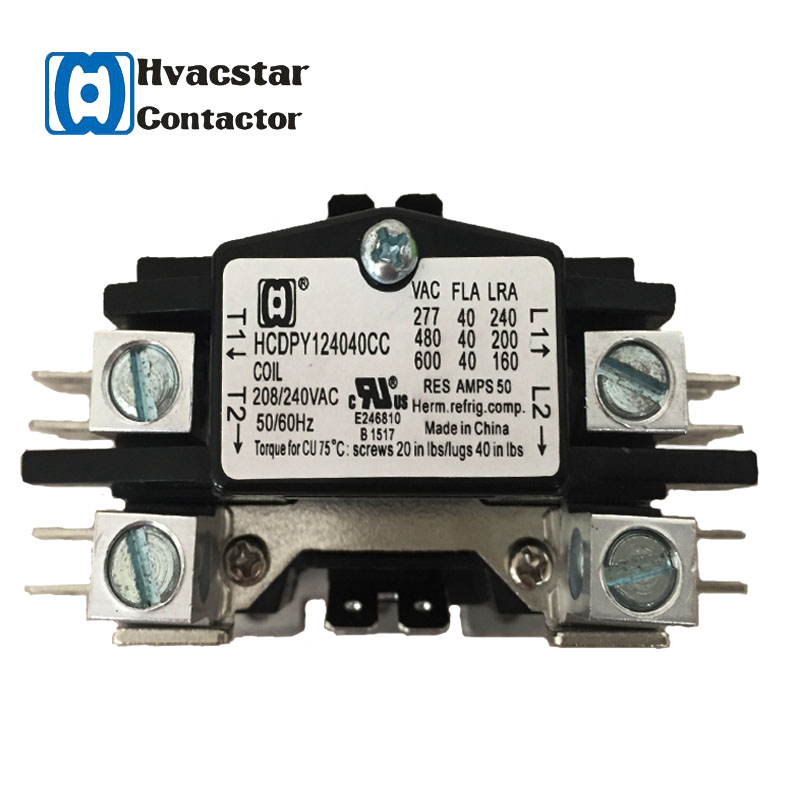

Load Ratings by Voltage
| Voltage (VAC) | FLA (A) | LRA (A) |
|---|---|---|
| 277 | 40 | 240 |
| 480 | 40 | 200 |
| 600 | 40 | 160 |
Technical Specifications
Torque Requirements
- Screws: 20 in-lbs (CU 75°C)
- Lugs: 40 in-lbs (CU 75°C)
- Number of Poles
- 1
- Frequency
- 50/60 Hz
Compliance & Quality
- Testing
- 100% Self-InspectionPre-packing Testing
