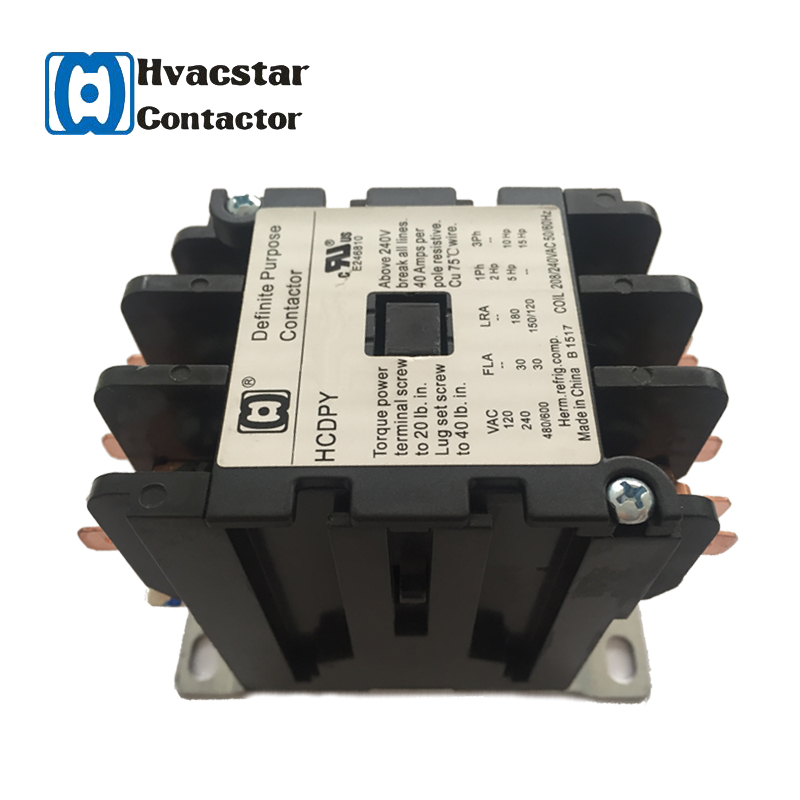

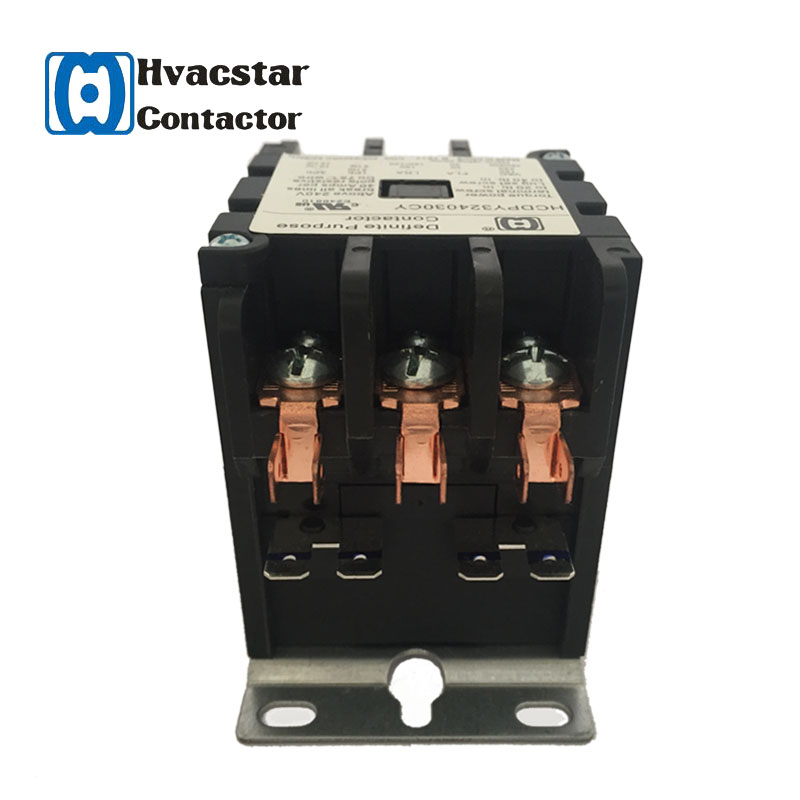

24V 20A 3-Pole AC Electrical Contactor
This 24V 20A three-pole AC contactor is designed for air conditioning and refrigeration applications. It is suitable for electrical magnetic control in HVAC&R systems.
Technical Specifications
Product Overview
Professional HVAC Contactor
This 3-pole definite purpose AC contactor is engineered for reliable performance in air conditioning and refrigeration systems. Designed for durability and versatility, it supports a wide range of electrical loads and is suitable for various HVAC&R applications. With robust terminal torque specifications and standard compliance, this component ensures safe and efficient electrical magnetic control.
Electrical Ratings
Resistive Load per Pole
40 A
Resistive Load
- Rated Current
- 20 A
- Coil Voltage
- 24V AC
- Number of Poles
- 3
Performance Specifications
Performance Metrics
| Parameter | 120VAC | 240VAC |
|---|---|---|
| FLA (Full Load Amps) | 30A | 30A |
| LRA (Locked Rotor Amps) | 180A | 150/120A |
Horsepower Ratings
- 2Hp at 120VAC (1Ph)
- 5Hp at 240VAC (1Ph)
- 2Hp at 120VAC (3Ph)
- 10Hp at 240VAC (3Ph)
- 15Hp at 480/600VAC (3Ph)
Installation & Compliance
Terminal Torque Specifications
20 lb.in
Power Terminal Screw
40 lb.in
Lug Set Screw
- Certifications
- UL CertifiedE246810
- Wire Compatibility
- Cu 75°C wire
