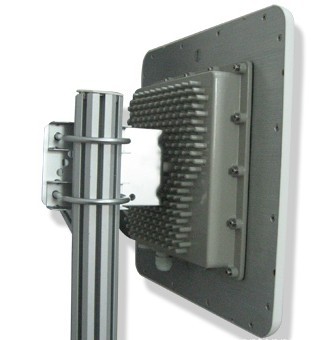

2.4 GHz 18 dBi CPE Enclosure Panel Antenna
This is a 2.4 GHz enclosure panel antenna with 18 dBi gain. It is designed for long-range wireless communication and features a robust enclosure for outdoor deployment.
Technical Specifications
Product Overview
High-Performance CPE Enclosure Antenna
The HXD24P-18 is a professional-grade 2.4 GHz CPE enclosure panel antenna engineered for long-range wireless communication. Featuring a robust aluminum die-cast enclosure, it provides superior weather protection for internal electronics while simplifying installation for outdoor point-to-point and point-to-multipoint networks. With an 18 dBi gain and focused beam width, this antenna ensures reliable connectivity and enhanced signal strength in demanding environmental conditions.
Electrical Specifications
Gain
18 dBi
Gain
Beam Width
| Plane | Width |
|---|---|
| Horizontal | 20 |
| Vertical | 22 |
- Frequency Range
- 2400 MHz
- Polarization
- Vertical
- VSWR
- ≤1.5
- Maximum Input Power
- 100 W
- Impedance
- 50 Ω
Mechanical Specifications
- Dimensions
- 280 x 280 x 70 mm
- Weight
- 3.5 kg
- Construction Materials
- ABS RadomeAluminum Die Cast Enclosure
- Connector Type
- N-Female
- Rated Wind Velocity
- 60 m/s
- Compatible Pole Diameter
- 35–50 mm
Safety & Protection
- Lightning Protection
- DC Ground
