Technical Specifications
Overview

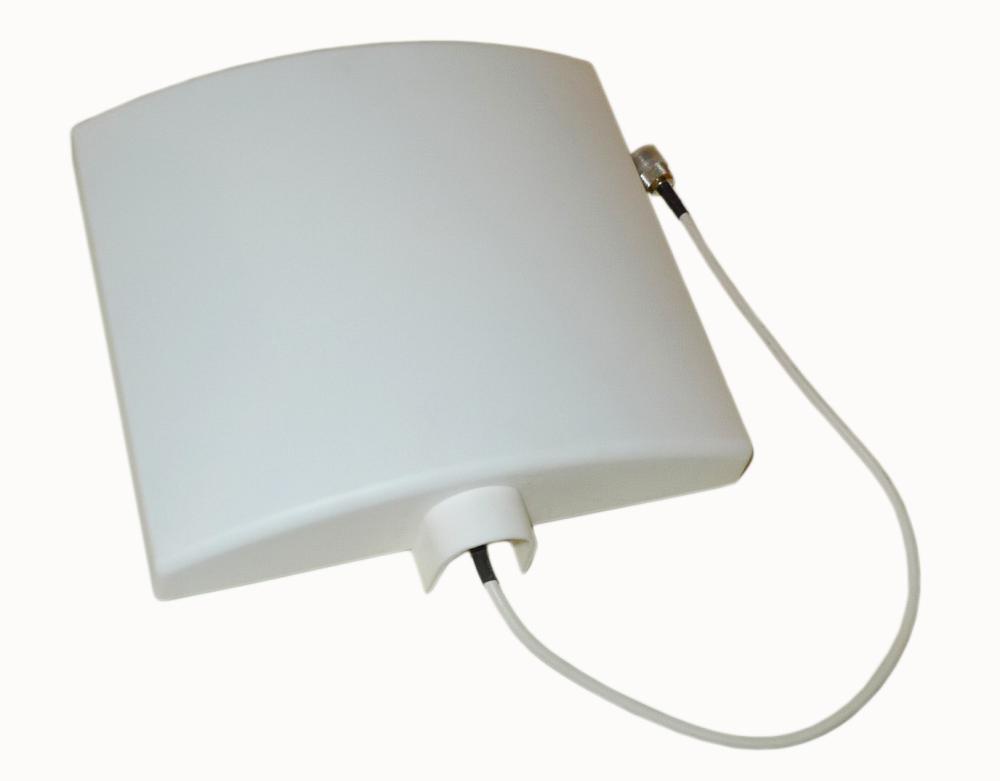

High-Performance Directional Antenna
The HXD24W-14 is a robust 2.4 GHz directional antenna engineered to extend wireless network range and significantly improve signal strength. Designed with a durable, weather-resistant ABS radome, it is ideal for both indoor and outdoor point-to-point or point-to-multipoint installations. With its versatile wall-mount design and standard N-Female connector, this antenna offers a reliable solution for enhancing connectivity in homes, offices, and industrial wireless systems.
Electrical Specifications
Gain
14 dBi
Gain
Lightning Protection
DC Ground
- Frequency Range
- 2400-2500 MHz
- VSWR
- ≤1.5
- Maximum Input Power
- 100 W
- Polarization
- Vertical
- Impedance
- 50 Ω
Mechanical Specifications
- Dimensions (L x W x H)
- 250 x 220 x 50 mm
- Weight
- 1 kg
- Connector
- N-Female
- Radome Material
- ABS
- Rated Wind Velocity
- 60 m/s
