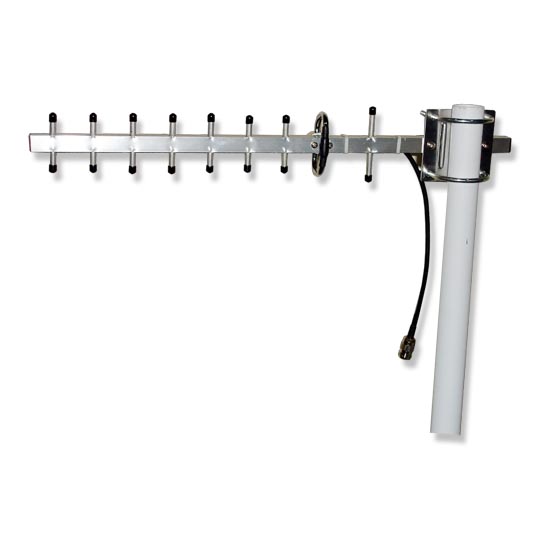

2.4 GHz 12 dBi Yagi Antenna
This is a Yagi antenna operating in the 2.4 GHz ISM band. It features a 12 dBi gain, allowing for extended range and improved signal strength in wireless communication systems.
Technical Specifications
Overview
High-Performance Directional Connectivity
The 2.4 GHz 12 dBi Yagi antenna is a robust, directional solution engineered for the 2.4 GHz ISM band. Featuring a specialized Yagi-Uda design, it minimizes signal interference while maximizing transmission efficiency, making it ideal for point-to-point wireless links and industrial network extensions. Constructed from durable aluminum, this antenna is built for reliable outdoor performance and includes versatile mounting hardware for easy installation.
Electrical Specifications
Half-power Beam Width
36 º
Horizontal
32 º
Vertical
- Frequency Range
- 2400-2500 MHz
- Gain
- 12 dBi
- Polarization
- VerticalHorizontal
- Front-to-back Ratio
- >18 dB
- Impedance
- 50 Ω
- VSWR
- 1.5
- Maximum Input Power
- 100 W
- Lightning Protection
- DC Ground
Mechanical Specifications
Connector
N-Female
- Antenna Weight
- 0.7 kg
- Rated Wind Velocity
- 60 m/s
- Reflector Material
- Aluminum
- Mounting Hardware Diameter
- φ35～φ50 mm
