22mm 3-Position Selector Switch with Indicator Light
This 22mm selector switch features a 3-position configuration and an integrated indicator light. It is designed for industrial control applications, offering reliable operation and clear visual indication.
Technical Specifications
Product Overview
Industrial 3-Position Selector Switch

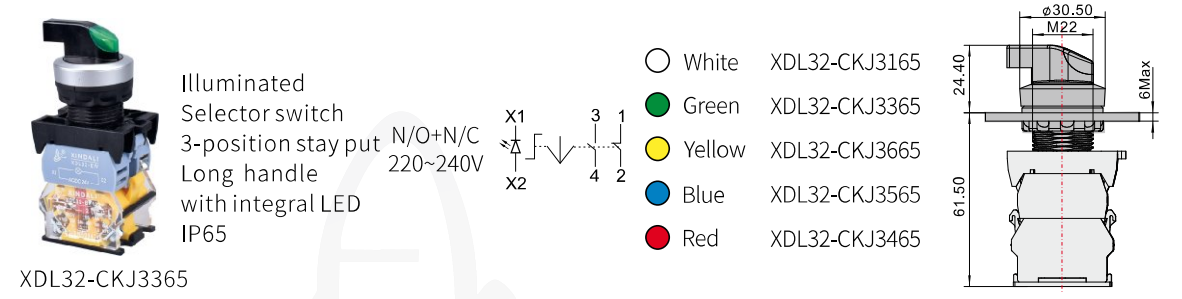

The XDL32-CKJ3365 is a high-performance 22mm selector switch featuring a 3-position stay-put mechanism and an integrated indicator light. Designed for industrial control circuits, this unit is built with a durable zinc alloy and flame-retardant plastic housing, utilizing silver alloy contacts for excellent anti-electrical erosion properties. It is fully compliant with international safety standards including IEC60947-5-1, making it a reliable solution for machinery control and signaling applications.
Technical Specifications
Protection Grade
IP65IP66IP67IP68
- Rated Insulation Voltage
- 600 V
- Mounting Hole Diameter
- 22 mm
- Pollution Grade
- 3
Operational Parameters
Mechanical Life
3,000,000 ops
Push Button Cycles
- Operating Temperature Range
- -5°C to +55°C
- Relative Humidity
- 35% to 85% RH
Compliance and Standards
- International Certifications
- CEISO 9001RoHSULIEC 60947-5-1
