220V Coil AC Magnetic Contactor
This AC magnetic contactor is designed for circuits up to 660V AC. It is suitable for frequently starting and controlling AC motors.
Technical Specifications
Product Overview
Industrial AC Magnetic Contactor

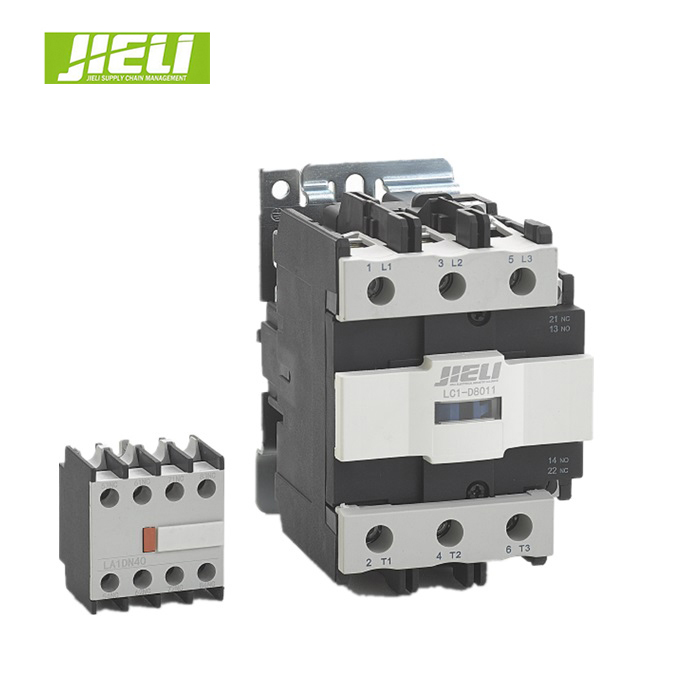

This LC1 series AC magnetic contactor is engineered for reliable switching and control of electrical circuits. Designed for high-performance motor control, it supports frequent starting and operation in industrial environments. The unit is compatible with various accessories, including auxiliary contact blocks, timer delays, and mechanical interlocking devices, allowing for flexible configuration as a delay contactor or star-delta starter.
Electrical Ratings
- Rated Voltage
- 660 V
- Max Rated Current
- 95 A
- Coil Voltage
- 220 V
- Operating Frequency
- 50Hz60Hz
Technical Standards
Compliance
IEC 60947-4
Configuration & Compatibility
System Compatibility
- Delay contactor (with timer delay)
- Mechanical interlocking contactor
- Star-delta starter
- Electromagnetic starter (with thermal relay)
Terminal Configuration
| Terminal Type | Designation |
|---|---|
| Power Terminals | 1 L1, 3 L2, 5 L3, 2 T1, 4 T2, 6 T3 |
| Auxiliary NC | 21 NC, 22 NC |
| Auxiliary NO | 13 NO, 14 NO |
