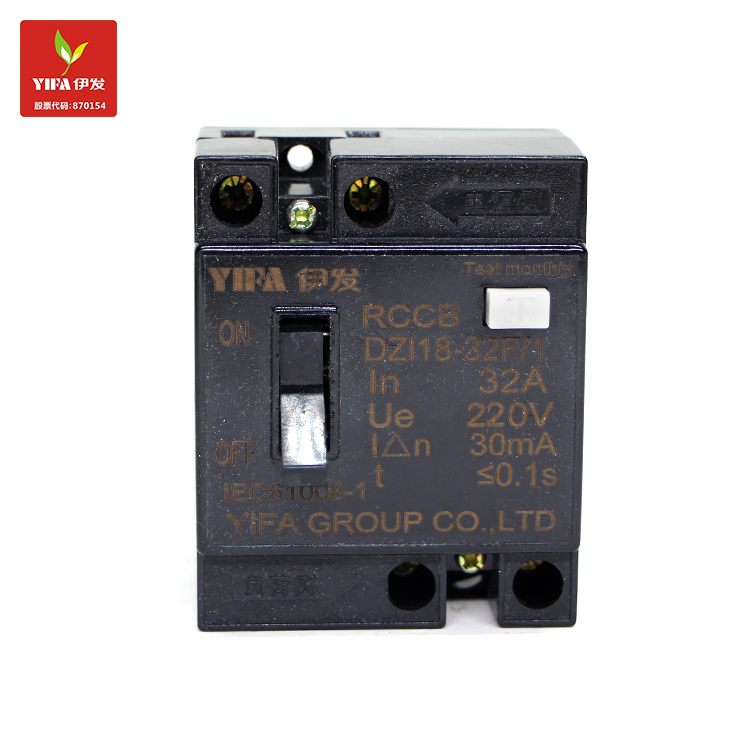

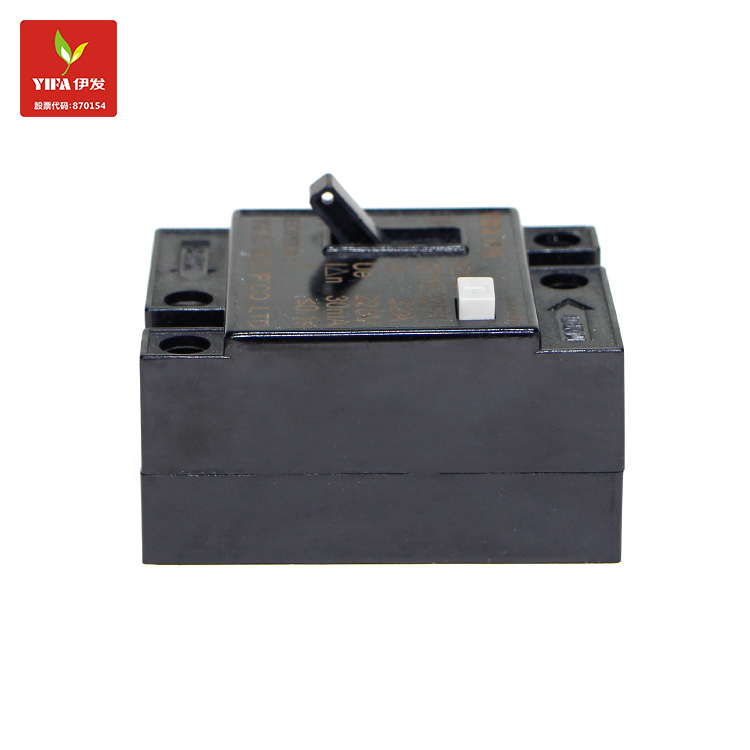

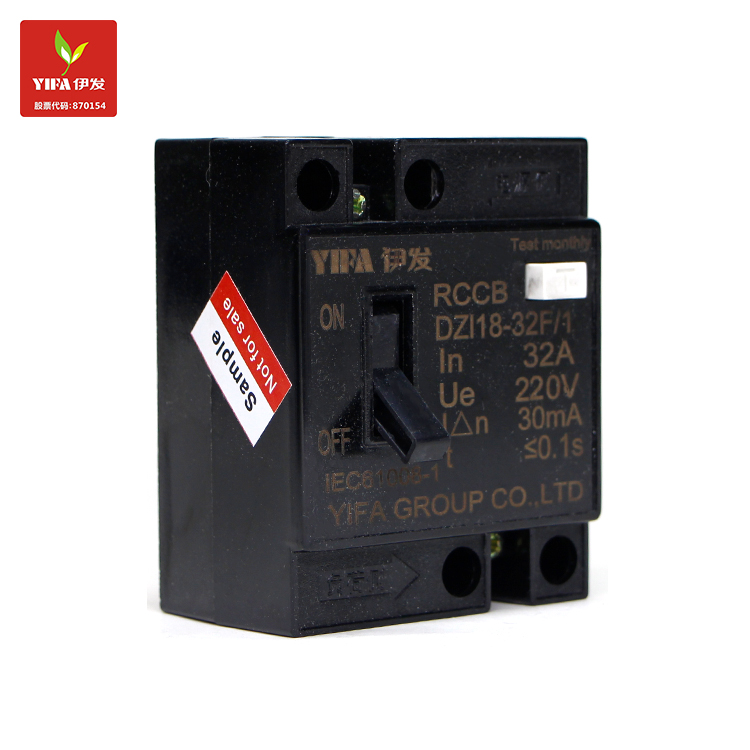

220V 32A Leakage Circuit Breaker
This leakage circuit breaker is designed for AC 220V circuits with a frequency of 50Hz and a rated current up to 32A. It protects against electric shock and prevents fire accidents caused by earth faults due to insulation damage.
Technical Specifications
Product Overview
Professional Leakage Circuit Protection
This leakage circuit breaker is engineered for single-phase 220V, 50Hz circuits with a rated current up to 32A. Designed to enhance safety, it provides essential protection against electric shocks and prevents fire hazards resulting from earth faults and insulation damage. The unit supports optional thermal release for overload protection and features advanced over-voltage detection to safeguard lines against main power failures and unstable loads.
Electrical Ratings
Rated Current
- 10
- 16
- 20
- 32
- Rated Voltage
- 220 V
- Frequency
- 50 Hz
Protection Features
- Rated Residual Non-operating Current
- 10mA15mA30mA
- Over-voltage Operating Value
- 275 V
Mechanical Specifications
- Number of Poles
- 2
Compliance
- Industry Standards
- GB16916.1IEC61008-1
Technical Data
Standard Performance Metrics
| Model | Residual Current (mA) | Breaking Capacity (kA) |
|---|---|---|
| DZL18-32(F)/1 | 30/15/10 | 3,000 |
| DZL18-32/2 | 30/15/10 | 3,000 |
| DZL18-32(F)/3 | 30/15/10 | 3,000 |
| DZL18-32/4 | 30/15/10 | 3,000 |
