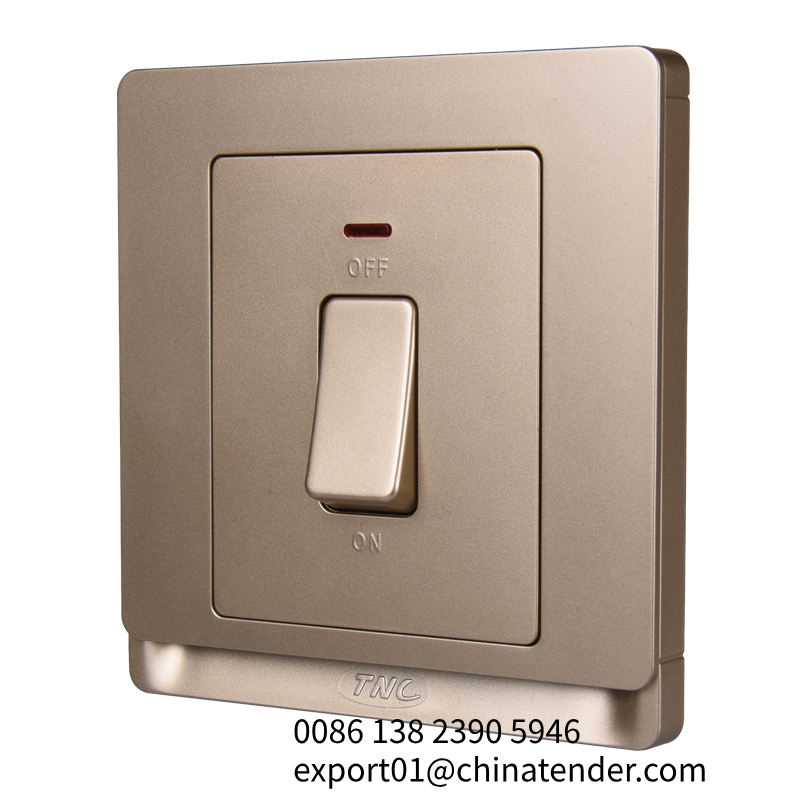

20A Double Pole Switch with Neon Indicator
This is a 20A double pole (DP) switch with a neon indicator, designed for use with heaters. The neon indicator provides visual confirmation of the switch's status, enhancing user awareness.
Technical Specifications
Product Overview
High-Performance Double Pole Switch
The Q6 series 20A double pole switch is engineered to control both live and neutral lines simultaneously, providing an enhanced safety profile for high-load applications like heaters. Featuring a high-visibility neon indicator, users can instantly verify the operational status of their connected equipment. The internal contact mechanism utilizes premium red copper coated with silver, ensuring superior electrical conductivity and durability for long-term professional use.
Electrical Specifications
Rated Current
20 A
Rated Current
250 V
Rated Voltage
- Frequency
- 50/60Hz
Standards & Compliance
- Compliance Standards
- IEC 60669-1BSEN 60669-1
Design & Features
- Contact Material
- Silver-coated red copper
- Indicator
- Yes
Terminal Configuration
Terminal Identification
| Terminal Type | Label |
|---|---|
| Input | L1, N1 |
| Output | L2, N2 |
