20A 1-Phase HVAC Definite Purpose Contactor
This 20A 1-phase contactor is designed for HVAC applications. It is suitable for definite purpose applications within HVAC&R systems.
Technical Specifications
Overview
Reliable HVAC Switching

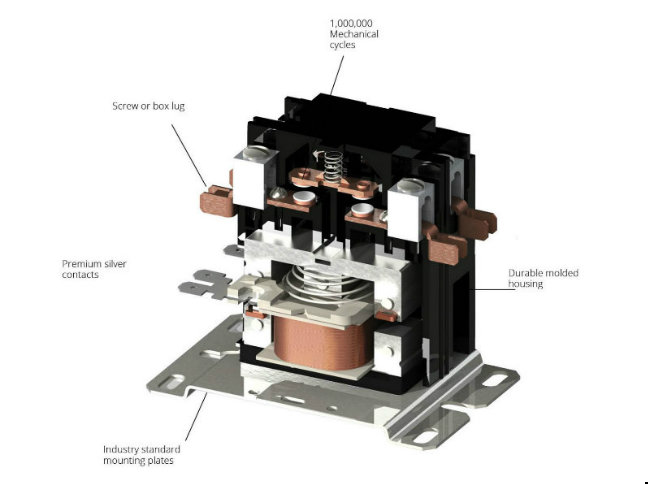

This 1-phase definite purpose contactor is engineered for demanding HVAC and refrigeration applications. Featuring premium silver alloy contacts and shock-resistant actuator arms, it provides consistent performance and long service life. The unit is housed in a durable molded plastic casing and includes industry-standard mounting plates for simplified installation in existing systems.
Electrical Ratings
Performance Metrics
20 A
AC-1 Rating (277V)
15 A
AC-3 Rating (277V)
1,000,000 cycles
Mechanical Cycles
- Coil Voltage
- 24VAC (50/60Hz)
- Current Rating
- 20 A
Technical Specifications
Tightening Torque
| Connection Type | Torque |
|---|---|
| Screws | 22 in-lbs |
| Lugs | 40 in-lbs |
- Standards & Certifications
- IEC60947-4-1UL Certified
Features
Key Features
- Premium silver alloy contacts
- Shock-resistant actuator arms
- Durable molded plastic housing
- Industry standard mounting plates
- Compact, easy-to-install design
