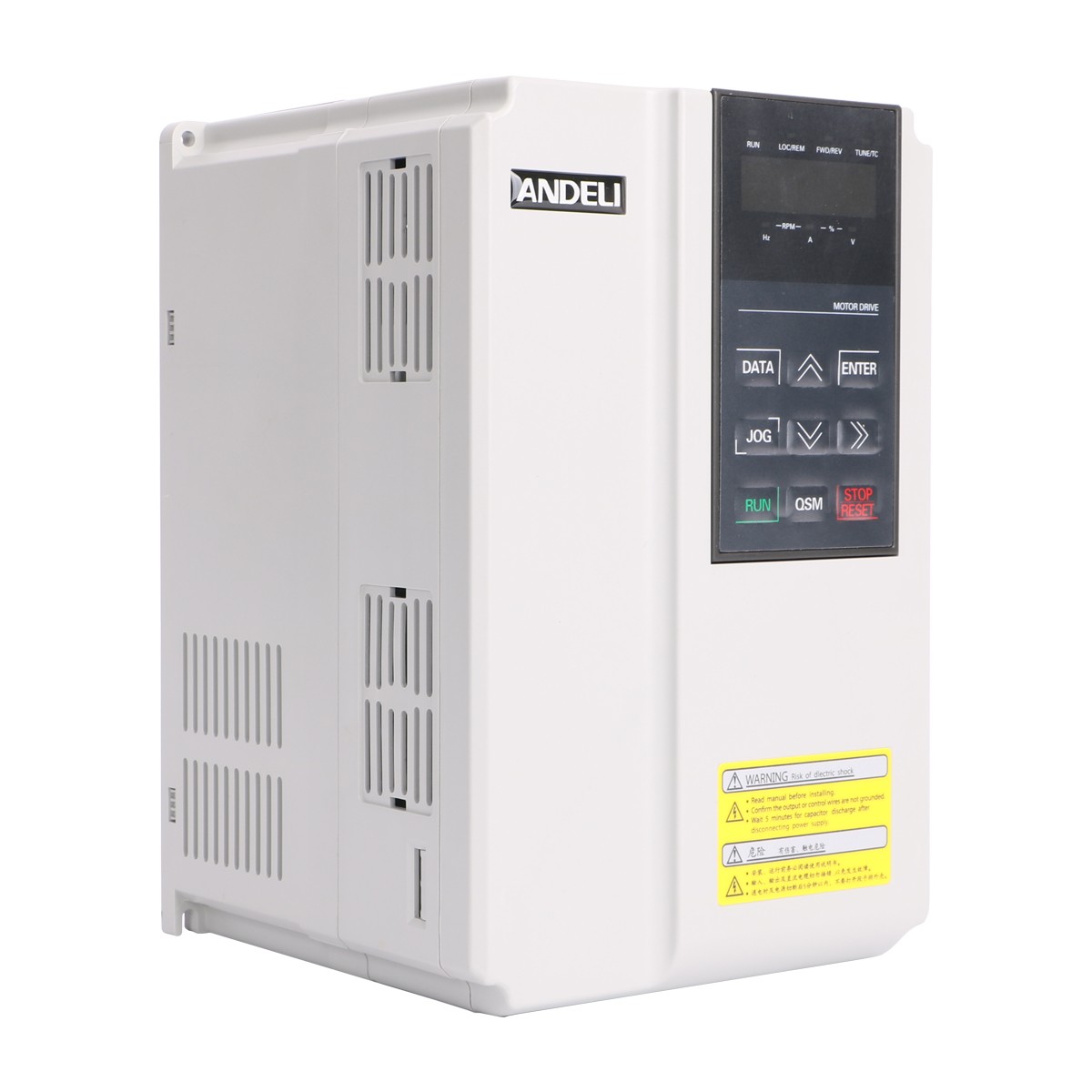

200G Variable Frequency Drive
This variable frequency drive offers precise motor control through a user-friendly interface with a digital display. It incorporates an efficient cooling system and advanced control algorithms for reliable performance in electric power transmission and distribution systems.
Technical Specifications
Overview
High-Performance Variable Frequency Drive
The 200G series is a versatile frequency inverter designed for precise motor control in transmission and distribution applications. It combines high torque output at low frequencies with advanced energy-saving capabilities to optimize industrial operations. Featuring a robust design with high-quality internal components, this drive ensures stable performance and long-term reliability for professional power systems.
Key Performance Metrics
Key Capabilities
0.75 kW
Min Power
45 kW
Max Power
176 A
Max Rated Current
Technical Specifications
Model Specifications Table
| Power Rating (kW) | Rated Current (A) | Unit Weight (kg) |
|---|---|---|
| 0.75kW / 1.5kW | 3.8A / 5.1A | 1.1 |
| 2.2kW / 3.7kW | 9A / 13A | 2.5 |
| 5.5kW / 7.5kW | 25A / 32A | 6.5 |
| 11kW / 15kW | 45A / 60A | 20 |
| 18.5kW / 22kW / 30kW | 75A / 91A / 112A | 32 |
| 37kW / 45kW | 150A / 176A | 47 |

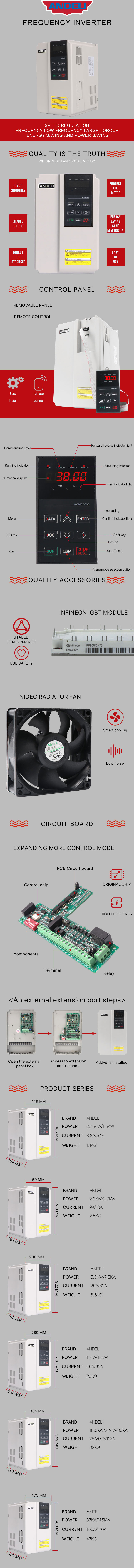

Hardware & Construction
Core Components
- Infineon IGBT Module for stable performance
- NIDEC radiator fan for low-noise cooling
- High-efficiency PCB circuit board
- Integrated control chips and relays
- External extension port for panel box
- Cooling System
- Dual-fan smart cooling with high-performance radiator
User Interface & Control
- Control Features
- Removable Control PanelRemote Control SupportDigital DisplayJog FunctionStatus Indicators (RUN, FWD/REV, TUNE/TC)
Safety & Compliance
Safety Protections
- Electric shock risk protection
- Capacitor discharge safety timing (5 minutes)
- Grounding confirmation protocols
- Smart cooling system
