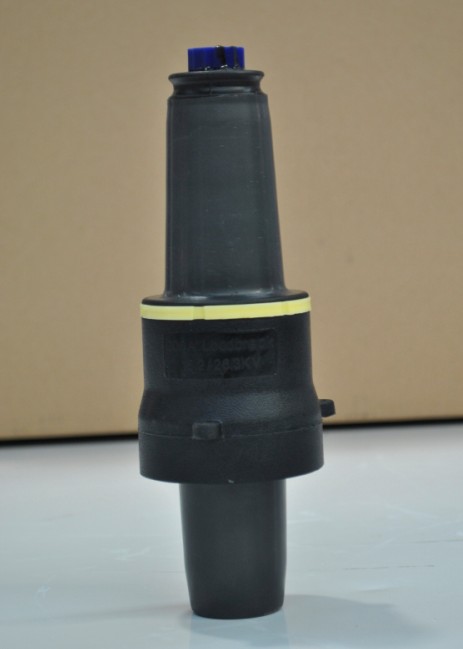

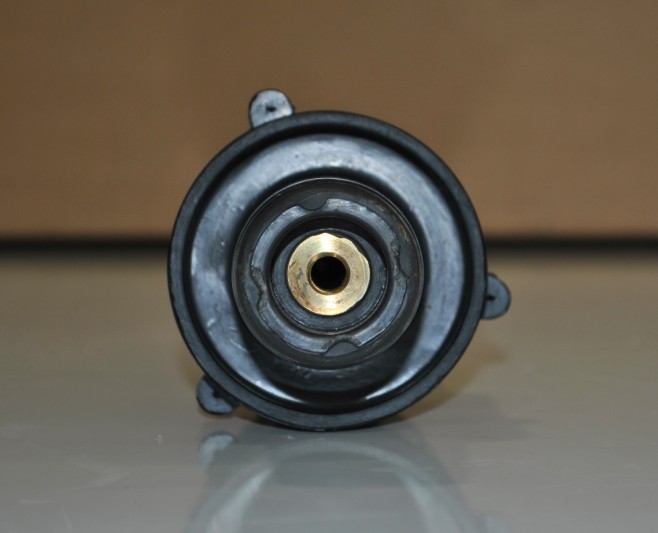

200A 15kV Loadbreak Bushing Insert
This 200A 15kV loadbreak bushing insert is designed for connecting and disconnecting energized circuits safely and efficiently. It is suitable for medium-voltage applications.
Technical Specifications
Overview
High-Performance Loadbreak Bushing Insert
This 200A 15kV Loadbreak Bushing Insert is a critical component for medium-voltage electrical power systems, designed to thread into universal bushing wells for seamless loadbreak operations. Constructed from high-quality peroxide-cured EPDM insulation, it ensures a fully shielded and submersible connection. Its design supports efficient field installation and replacement without the need for special tools, offering reliability for padmounted transformers, submersible transformers, and switching cabinets.
Technical Ratings
Rated Current
200 A
Rated Current
Rated Voltage
15 kV
Rated Voltage
Design & Construction
Installation Features
- Universal bushing well compatibility
- Internal hex broach for torque control
- Tool-free hand installation possible
- Optional installation torque tool support
- Insulation Material
- Peroxide-cured EPDM
Applications
- Typical Applications
- Padmounted TransformersSubmersible TransformersSwitching CabinetsLoadbreak Connections
Performance
Environmental Capability
Fully ShieldedSubmersible
