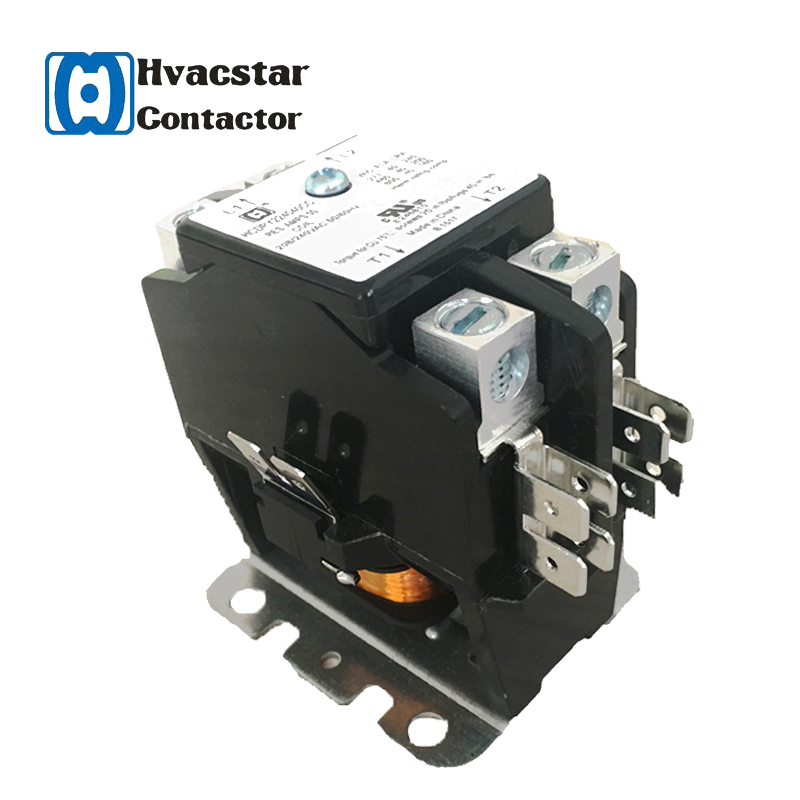

20 Amp 2-Pole Magnetic Contactor
This 20 amp magnetic contactor is designed for air conditioning and refrigeration applications. It is suitable for controlling compressors, fans, and other electrical loads.
Technical Specifications
Overview
Professional Grade Magnetic Contactor
This 2-pole magnetic contactor is engineered for reliable performance in air conditioning and refrigeration applications. Designed to handle demanding electrical loads, it ensures efficient switching for compressors and fans. The unit is built for durability and compatibility with standard 208/240VAC power systems, making it an ideal component for HVAC&R maintenance and installation.
Electrical Ratings
Rated Current
20 A
Rated Current
50 A
Resistive Amps
Load Ratings Table
| Voltage (VAC) | FLA (A) | LRA (A) |
|---|---|---|
| 277 | 40 | 240 |
| 480 | 40 | 200 |
| 600 | 40 | 160 |
- Coil Voltage
- 208/240VAC 50/60Hz
Installation & Compliance
Terminal Torque Specifications
- Screws: 20 in-lbs
- Lugs: 40 in-lbs
- Conductor Compatibility
- CU 75°C
- Compliance Tags
- 2-PoleHermetic Refrigeration Compressor Compatible
Service & Support
Service Terms
- 100% self-inspection and testing before packing
- Quality guarantee: Replacement for defective items
- OEM and ODM services available
- Free samples available (shipping cost excluded)
- Order Fulfillment
- 15-20 days lead time after deposit
