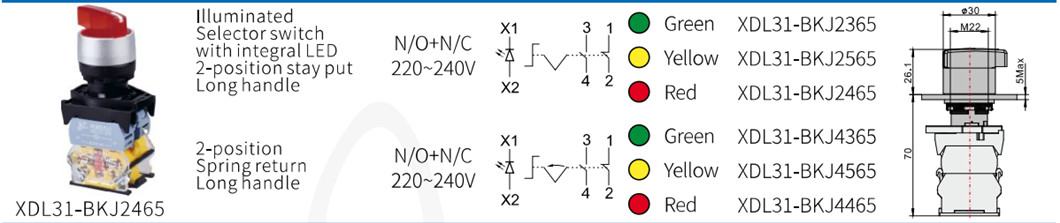

2-Position Selector Switch with Long Handle and Indicator Lamp
This 2-position selector switch is designed with a long handle for easy operation. It includes an indicator lamp for clear status indication.

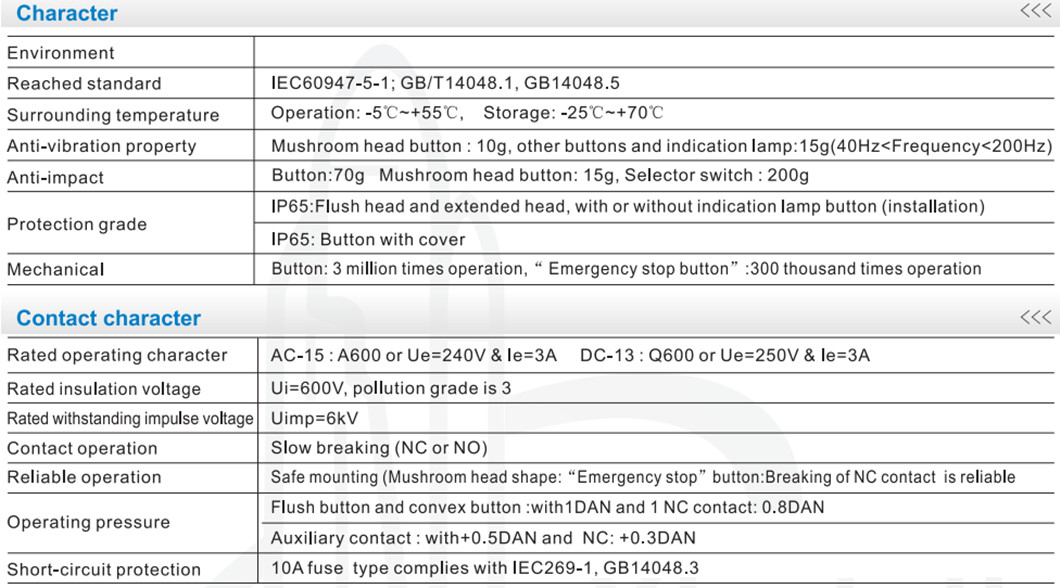

Technical Specifications
Product Overview
Industrial Selector Switch
This 2-position selector switch is engineered for demanding industrial control environments, providing reliable signal and interlocking capabilities. Featuring a durable long handle and integrated indicator lamp, the unit is constructed from zinc alloy and high-grade anti-flame plastic. It adheres to strict international safety standards, making it an ideal choice for control panels requiring robust operation and visual status confirmation.
Electrical Specifications
Contact Rating (AC-15)
240 V
Voltage
3 A
Current
- Rated Insulation Voltage
- 600 V
- Operating Voltage (AC)
- Up to 660V (50/60Hz)
- Operating Voltage (DC)
- Below 400V
Mechanical and Environmental
- Operating Temperature
- -5°C to +55°C
- Protection Grade
- IP40IP54IP65IP66IP67IP68
- Mechanical Life
- 3,000,000 cycles
- Mounting Diameter
- 22 mm
Standards and Compliance
Certifications
CEISO 9001RoHSUL
Regulatory Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
