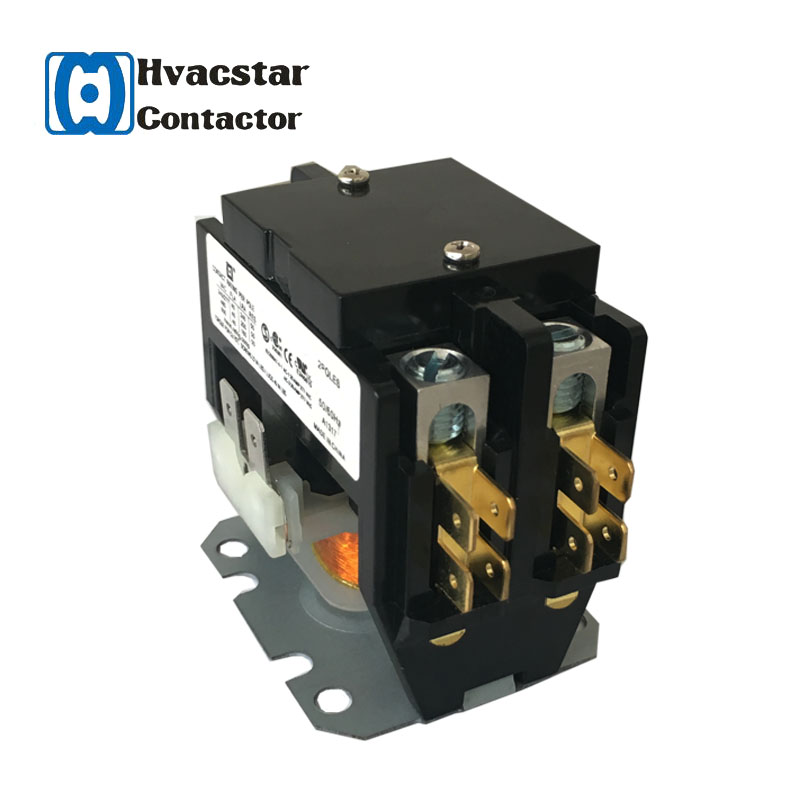

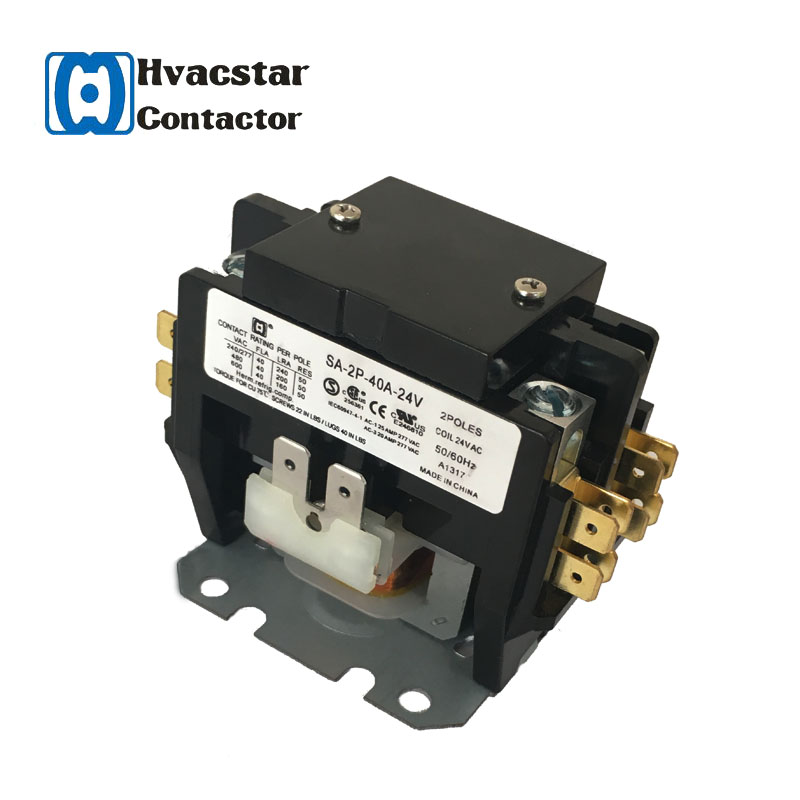

2-Pole AC Contactor for HVAC Applications
This 2-pole AC contactor is designed for HVAC applications. It provides reliable switching for compressors, fans, and other electrical loads in air conditioning and refrigeration systems.
Technical Specifications
Product Overview
High-Performance HVAC Definite Purpose Contactor
This 2-pole magnetic AC contactor is specifically engineered for HVAC and refrigeration applications, providing reliable switching for compressors, fans, and heating elements. Certified by CUL and designed to meet IEC60947-4-1 standards, it ensures safety and durability in demanding environments. With a 40A rating and 24VAC coil, it offers a robust solution for air conditioning and industrial cooling systems.
Electrical Ratings
Contact Rating Per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | Resistive (A) |
|---|---|---|---|
| 240/277 | 40 | 240 | 50 |
| 480 | 40 | 200 | 50 |
| 600 | 40 | 160 | 50 |
- Full Load Amperage (FLA)
- 40 A
- Coil Voltage
- 24VAC
- Frequency
- 50/60Hz
Technical Specifications
Tightening Torque
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
- Number of Poles
- 2
- Application Type
- Definite Purpose / Hermetic Refrigeration Compressor
Compliance & Certifications
- Safety Certifications
- CULULCSACE
- Applicable Standards
- IEC60947-4-1 (AC-1, AC-3)
Service & Logistics
- OEM/ODM Support
- Yes
- Delivery Time
- 15-20 days after deposit
- Payment Terms
- 30% deposit, balance against B/L copy
