Technical Specifications
Product Overview
Reliable HVAC Power Switching

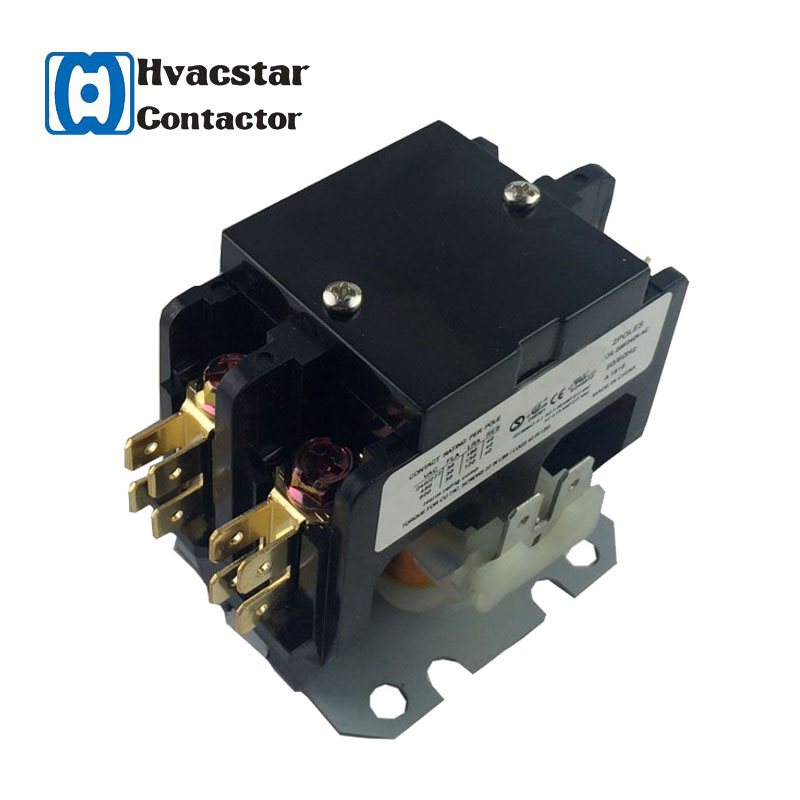

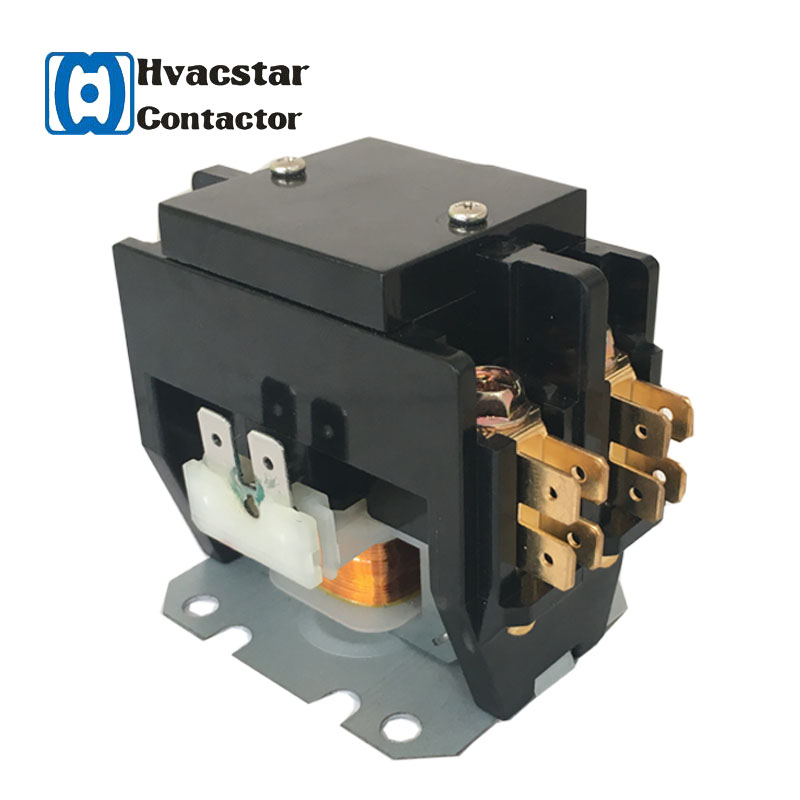

This definite purpose magnetic contactor is engineered for robust power switching in HVAC and refrigeration systems. Featuring a 2-pole configuration and a 40A rated current, it is designed to efficiently manage electrical loads for compressors, fans, and other critical equipment. It supports a wide range of control voltages, ensuring broad compatibility with diverse electrical setups.
Technical Specifications
Terminal Torque
25 in-lbs
Torque for CU 75°C Wire
2.8 Nm
Torque for CU 75°C Wire
- Number of Poles
- 2
- Rated Current
- 40 A
- Control Voltage Range
- 24-277V
- Operating Frequency
- 50/60Hz
Electrical Ratings
Contact Rating Per Pole
| VAC | HP | FLA (A) | LRA (A) | RES (A) |
|---|---|---|---|---|
| 240 | 3 | 40 | 200 | 50 |
| 480 | 5 | 40 | 200 | 50 |
| 600 | 5 | 40 | 200 | 50 |
Service & Quality
Service Terms
- OEM and ODM available
- Free samples available for testing (shipping cost excluded)
- Replacement policy for quality issues
- Quality Control
- 100% Self-InspectionPre-packing Testing
