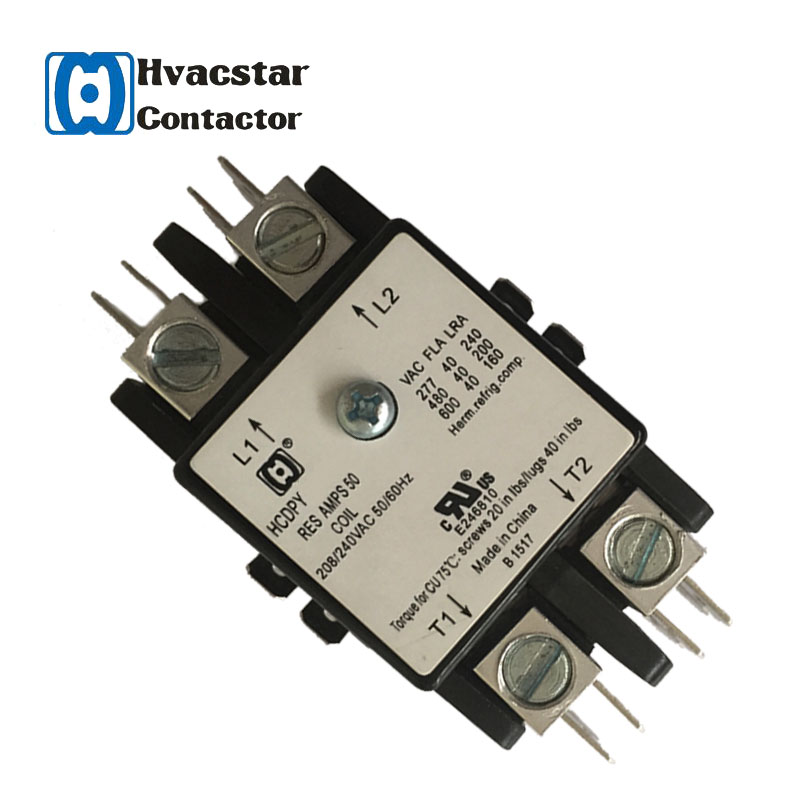

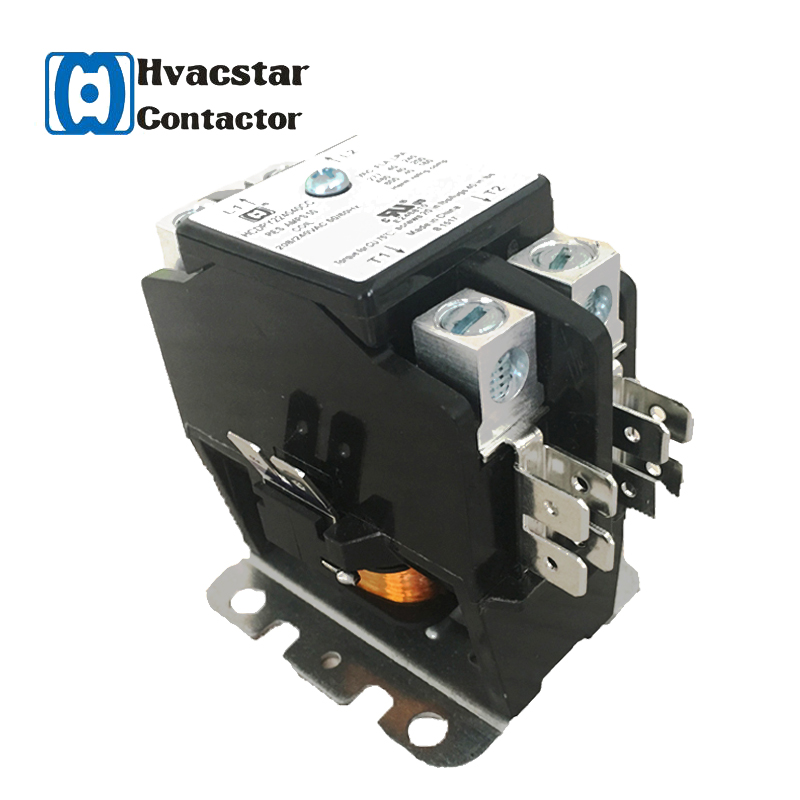

2-Pole 40A AC Definite Purpose Contactor
This 2-pole AC contactor is designed for definite purpose applications. It is rated for 40A and commonly used in HVAC systems for switching electrical circuits.
Technical Specifications
Product Overview
Reliable Switching for HVAC & Industrial Systems
This 2-pole definite purpose contactor is engineered for reliable switching in demanding HVAC, refrigeration, and heating applications. Designed for versatility, it supports a wide range of electrical loads and is suitable for use in compressors, pumps, and industrial equipment. With robust construction and compliance with international safety standards, this component ensures consistent performance and longevity in critical electrical circuits.
Electrical Ratings
Featured Metrics
40 A
Resistive Amps
30 A
Full Load Amps (FLA)
2
Poles
Locked Rotor Amps (LRA)
| Voltage (V) | LRA (A) |
|---|---|
| 240 | 180 |
| 480 | 150 |
| 600 | 120 |
Technical Specifications
- Coil Voltage
- 24V (Range: 24-277V)
- Operating Frequency
- 50/60 Hz
- Short Circuit Rating
- 5000 A
- Surrounding Air Temperature
- 40 °C
Installation & Connections
- Connection Options
- ScrewBoxPressure Plate
- Mounting Base
- NEMA
Compliance & Standards
Certifications
UL RecognizedCSA CertifiedCE Compliant
Applications
Typical Applications
- Refrigeration
- Air Conditioning
- Heating Systems
- Food Service Equipment
- Vending Machines
- Compressors
- Pumps
- Cranes & Hoists
- Welding Machines
- Power Supplies
- Lighting
