2-Pole 40A AC Air Conditioning Definite Purpose Contactor

This 2-pole, 40A definite purpose contactor is designed for AC air conditioning applications. It is UL listed and suitable for use in HVAC and refrigeration systems.

Request a Quote Download PDFPDF

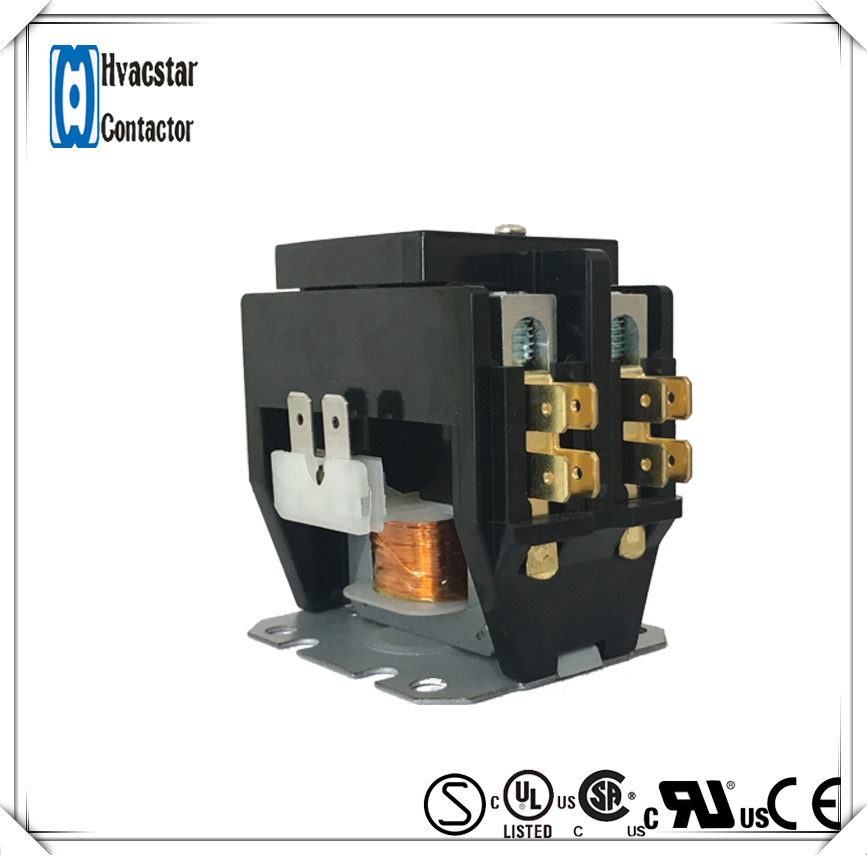

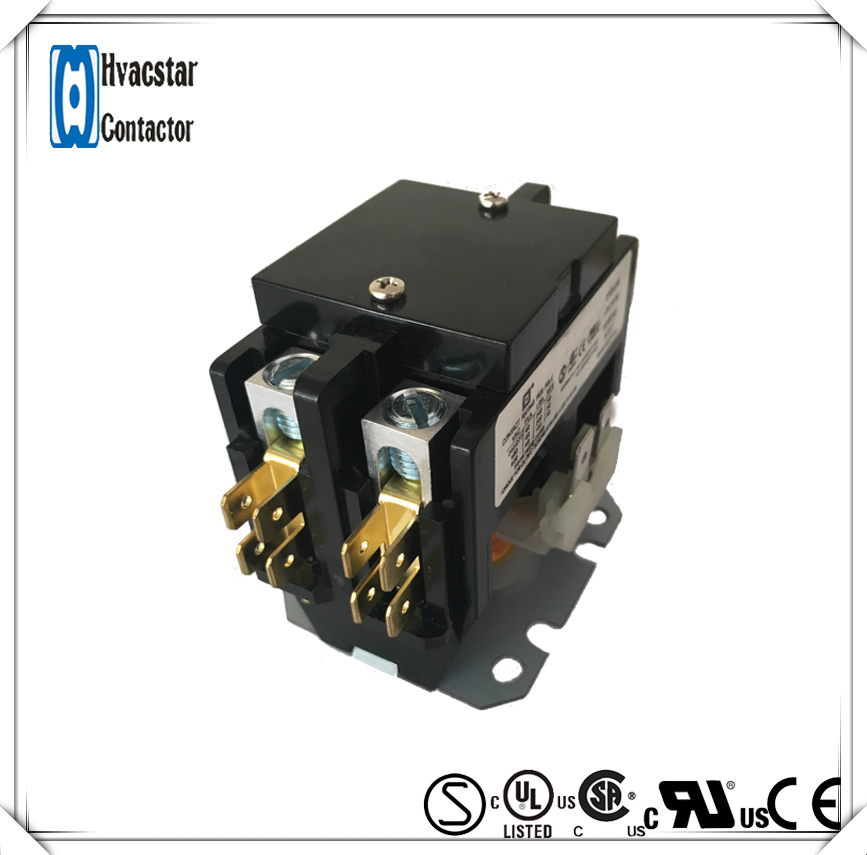

UL AC air conditioning 2POLE 40A definite purpose Contactor - Image 1

Technical Specifications

Product Overview

High-Performance Definite Purpose Contactor

This 2-pole definite purpose contactor is engineered for reliable switching in HVAC and refrigeration systems. Featuring premium silver cadmium oxide contacts, it ensures superior electrical conductivity and a long operational lifespan. Designed for demanding applications, the unit provides robust control for motors, compressors, and heating elements with verified safety certifications.

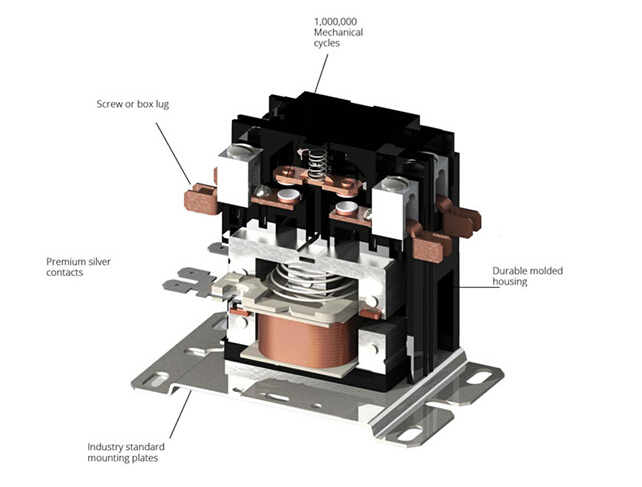

Internal construction and features of the 40A contactor — Built with durable molded housing and industry-standard mounting for reliable HVAC performance.

Technical Specifications

Featured Metrics

40 A

Resistive Amps

30 A

Full Load Inductive Amps

120 V

Coil Voltage

50 Hz

Frequency

Poles: 2P
Locked Rotor Amps (240/480/600V): 180A150A120A

Range of HVAC contactors showing 2-pole configuration — Standardized 2-pole configuration suitable for various household air conditioning systems.

Certifications

Safety Standards

UL 508CECSAEN60947-4-1:2010

Compatibility

Cross-Reference Compatibility

Original Manufacturer	Part Number
Siemens	45EG20AF
Fasco	C2S30B
Cutler-Hammer	C25BNB230A
GE	CR453CC2AAA
Gemline	GDP3021
