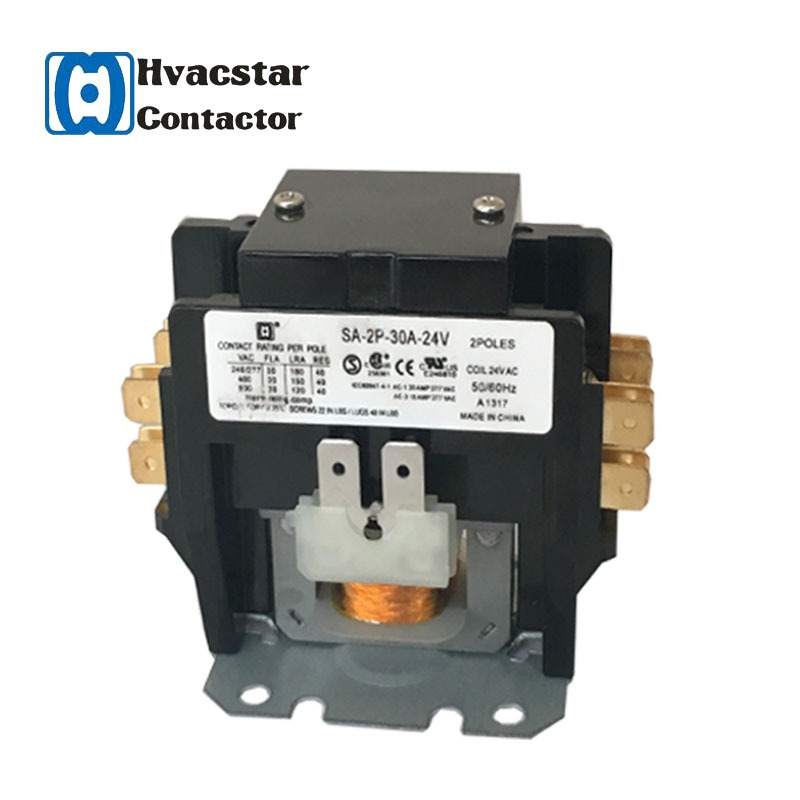

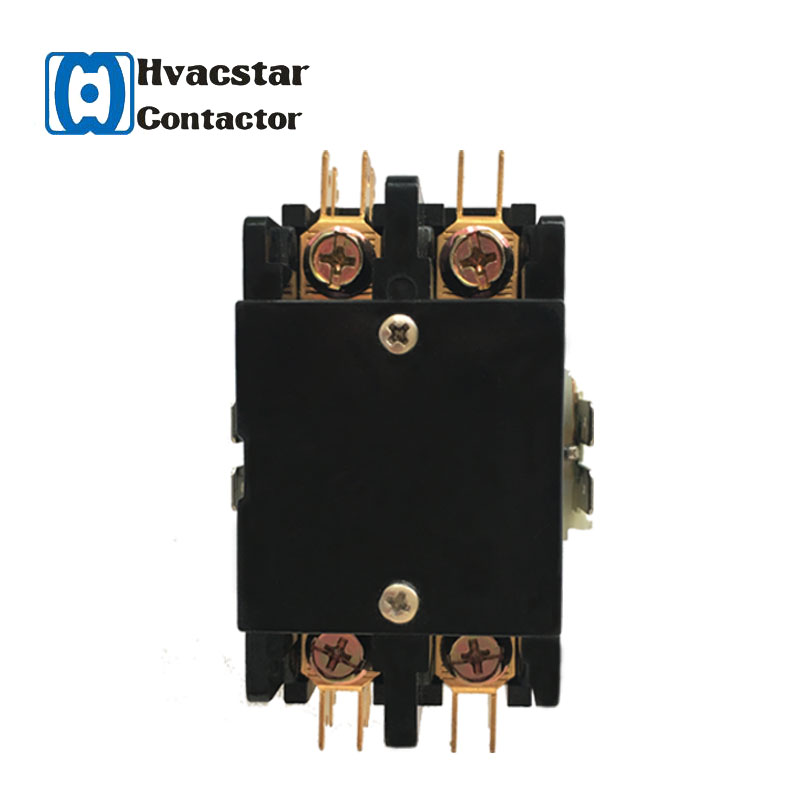

2 Pole 30A HVAC Definite Purpose Contactor
This 2 pole, 30A definite purpose contactor is designed for HVAC and refrigeration applications. It is CUL certified, ensuring compliance with safety standards.
Technical Specifications
Overview
Reliable HVAC Switching Solution
This 2-pole definite purpose contactor is engineered for demanding HVAC and refrigeration applications, providing reliable control for motors and compressors. It features a magnetic design for efficient switching and is CUL certified to meet rigorous safety standards. Designed for durability, it supports a wide range of voltages and is suitable for both inductive and resistive loads.
Technical Specifications
Rated Current
30 A
Full Load Amps (FLA)
40 A
Resistive Amps (RES)
- Number of Poles
- 2
- Coil Voltage
- 24 VAC
- Frequency
- 50/60Hz
Performance Ratings
Contact Rating per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | RES (A) | Horsepower (HP) |
|---|---|---|---|---|
| 120 | 30 | 180 | 40 | 2 |
| 240 | 30 | 150 | 40 | 3 |
| 277 | 30 | 120 | 40 | 5 |
Installation & Compliance
Wire Type
CU/ALCLASS B
- Certifications
- CULUL
- Terminal Torque
- 25 IN-LBS (2.8 NM)
Service & Logistics
- Customization
- Yes
- Lead Time
- 15-20 days after deposit
- Quality Control
- 100% self-inspection and testing before packing
