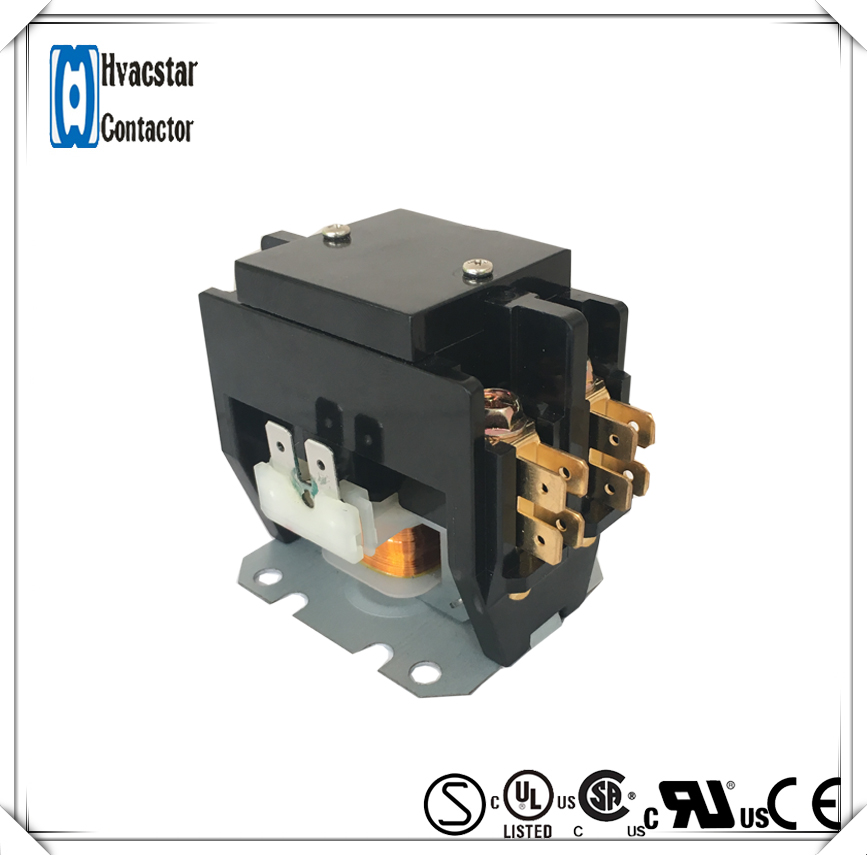

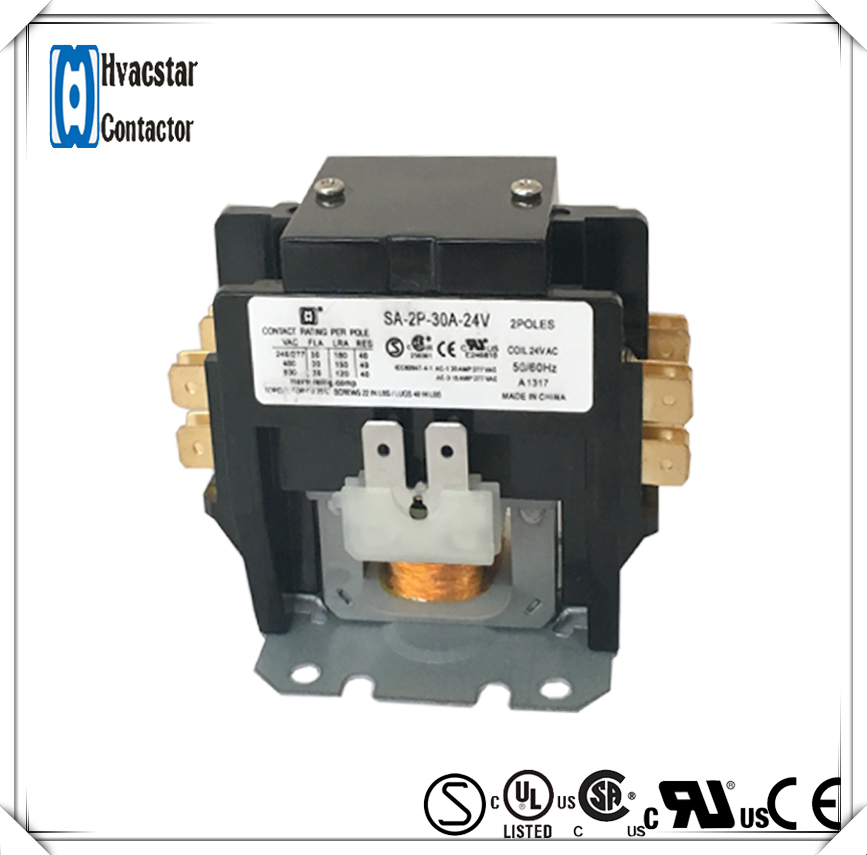

2-Pole 30A AC Air Conditioning Definite Purpose Contactor
This 2-pole contactor is rated at 30A and designed for AC air conditioning applications. It is UL listed to meet safety standards.
Technical Specifications
Product Overview
Professional Grade AC Contactor
This 2-pole definite purpose contactor is engineered for reliable switching in HVAC&R and air conditioning applications. It features high-quality silver cadmium oxide contacts to ensure excellent electrical conductivity and long-term durability. Built for demanding environments, this component meets strict international safety standards and is designed to provide up to 1,000,000 mechanical cycles.
Electrical Specifications
F/L Inductive Amps
30 A
Inductive Current
Locked Rotor Amps
| Voltage (V) | Amperage (A) |
|---|---|
| 240 | 180 |
| 480 | 150 |
| 600 | 120 |
- Resistive Amps
- 40 A
- Coil Voltage
- 120 V
- Frequency
- 50/60 Hz
- Number of Poles
- 2
Compliance and Standards
- Certifications
- UL 508CESemkoCSA
Compatibility
Cross-Reference Models
- Siemens 45EG20AF
- Fasco C2S30B
- Cutler-Hammer C25BNB230A
- GE CR453CC2AAA
- Gemline GDP3021

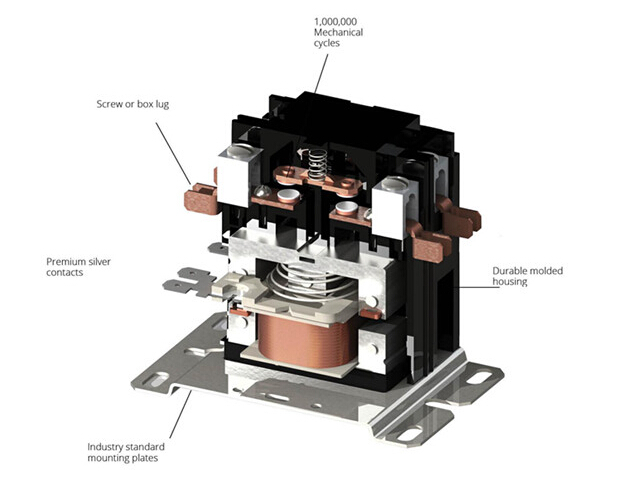

Construction
Design Highlights
Silver Cadmium Oxide ContactsDurable Molded HousingScrew/Box Lug TerminalsStandard Mounting Plate
