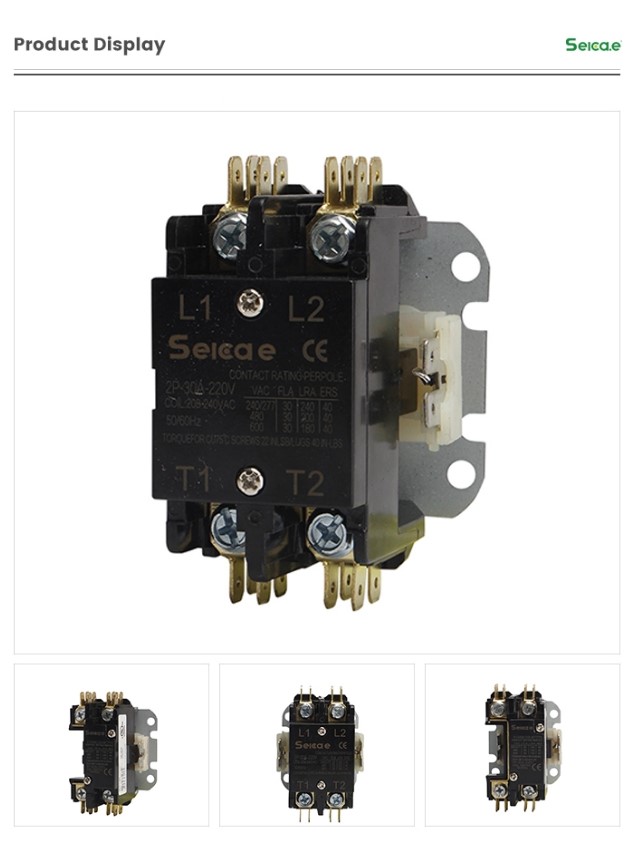

2-Pole 30A 220V AC Magnetic Contactor
This 2-pole AC magnetic contactor is rated at 30A and 220V. It is suitable for a variety of electrical applications and operates at 50/60Hz.
Technical Specifications
Product Overview
Reliable 2-Pole AC Magnetic Contactor
This 2-pole AC magnetic contactor is designed for efficient power control in various industrial and commercial electrical applications. Rated for 30A and 220V operation, it supports a wide coil voltage range of 208-240VAC at 50/60Hz. Built for durability and safety, it features clearly labeled terminals and meets CE certification standards for international market compliance.
Key Performance Metrics
Key Performance Metrics
30 A
Rated Current
2
Number of Poles
220 V
Rated Voltage
Technical Specifications
- Number of Poles
- 2
- Electricity Type
- AC
- Coil Voltage
- 208-240VAC
- Frequency
- 50/60Hz
Contact Ratings
Contact Rating Per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | ERS (A) |
|---|---|---|---|
| 240/277 | 30 | 240 | 40 |
| 480 | 30 | 200 | 40 |
| 600 | 30 | 180 | 40 |
Installation & Safety
Torque Requirements
- Standard Screws: 22 in-lbs
- Lugs: 40 in-lbs
Certifications
CE
- Terminal Markings
- L1L2T1T2
Logistics
- Shipping Ports
- NingboShanghai
