Technical Specifications
Overview
Reliable HVAC Switching

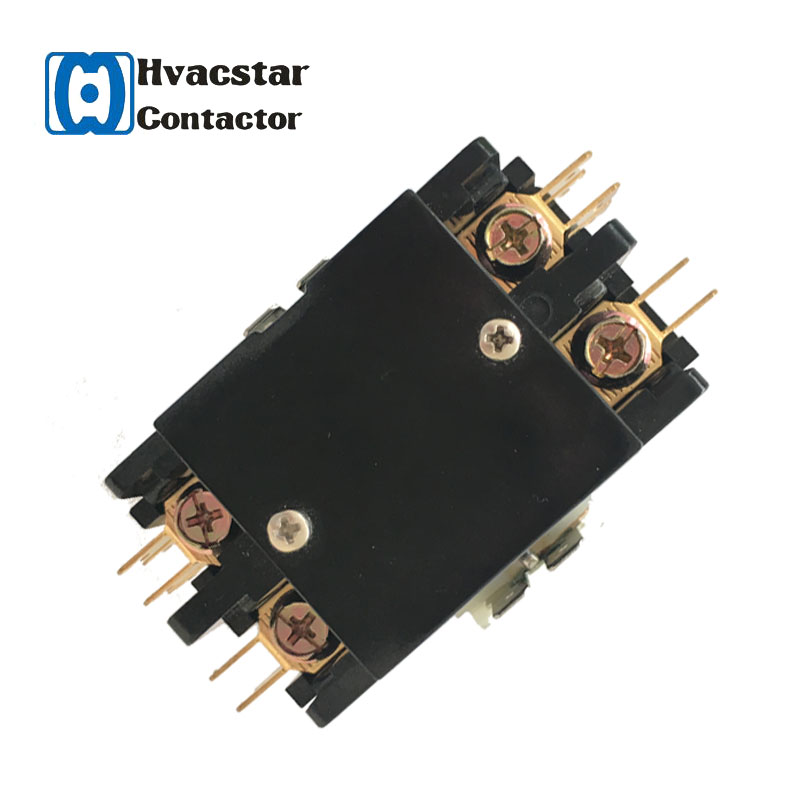

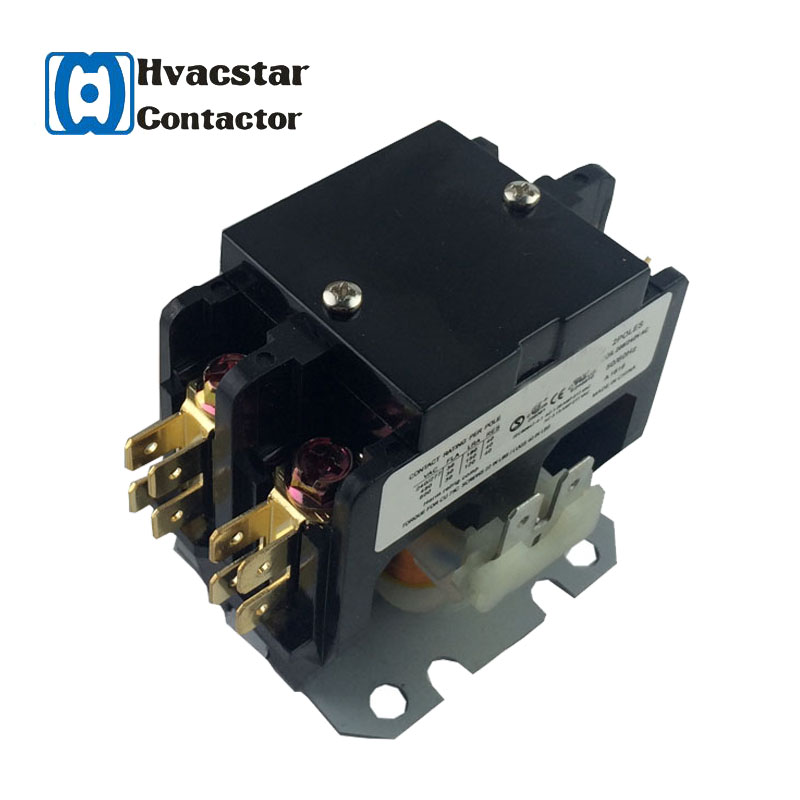

This 2-pole electronic AC contactor is engineered for consistent performance in HVAC, refrigeration, and heating systems. Designed for demanding electrical environments, it provides robust switching capabilities for inductive loads such as compressors, motors, and fans. Its compact footprint ensures seamless integration into control panels and equipment assemblies.
Electrical Ratings
Key Performance Metrics
25 A
Rated Current (FLA)
150 A
Locked Rotor Amps (LRA)
30 A
Resistive Load
Contact Ratings Per Pole
| Voltage (VAC) | Horsepower (HP) |
|---|---|
| 120 | 1.5 |
| 240 | 3 |
| 277 | 3 |
Technical Specifications
Physical and Coil Specs
- Configuration: 2 Poles
- Coil Voltage: 24-28 VAC/DC
- Terminal Torque: 25 in-lbs (2.8 Nm) Max
- Certifications
- CUL Certified
Ordering Information
Lead Time and Terms
- Delivery Time: 15-20 days after deposit
- Payment Terms: 30% deposit, balance against B/L copy
