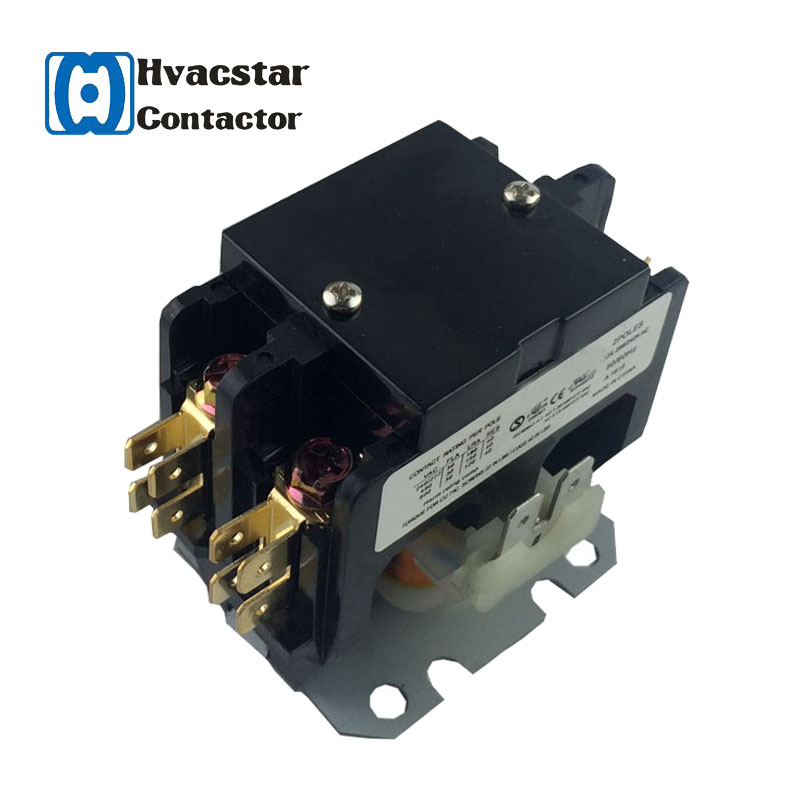

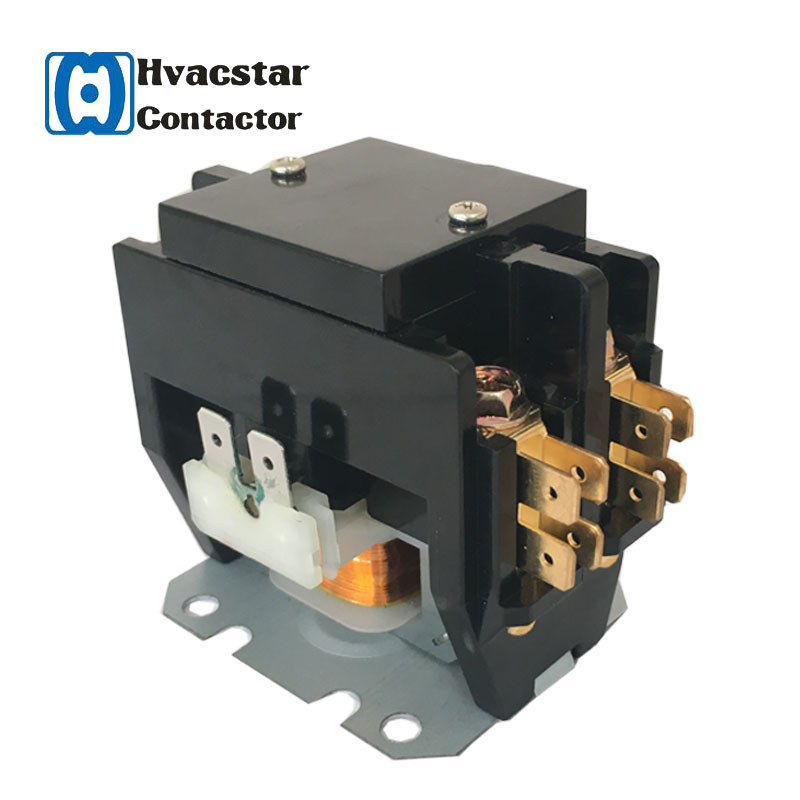

2-Pole 25A AC Definite Purpose Contactor
This 2-pole, 25A definite purpose contactor is designed for heating, air conditioning, refrigeration, data processing, and food service equipment. It features quick connect terminals and binder head screws for easy wiring.
Technical Specifications
Overview
Reliable HVAC Switching Solution
This definite purpose magnetic contactor is engineered for reliable switching in HVAC and refrigeration systems. Featuring a robust 2-pole configuration and a 25A current rating, it ensures consistent performance across various electrical loads. The unit is CUL certified, confirming compliance with rigorous safety and quality standards for professional equipment.
Electrical Specifications
Performance Metrics
50 Hz
Frequency
60 Hz
Frequency
Contact Ratings Table
| VAC | HP | FLA | LRA |
|---|---|---|---|
| 115 | 1.5 | 16 | 96 |
| 230 | 3 | 12 | 72 |
| 460 | 3 | 6 | 36 |
- Number of Poles
- 2
- Rated Current
- 25 A
- Voltage Range
- 24-277V AC
Compliance and Installation
Insulation Class
Class B
- Certifications
- CUL Certified
- Terminal Torque
- 25 IN-LBS (2.8 NM)
Order Information
Payment Terms
- 30% deposit
- Balance against B/L copy
- Typical Lead Time
- 15-20 days after deposit
