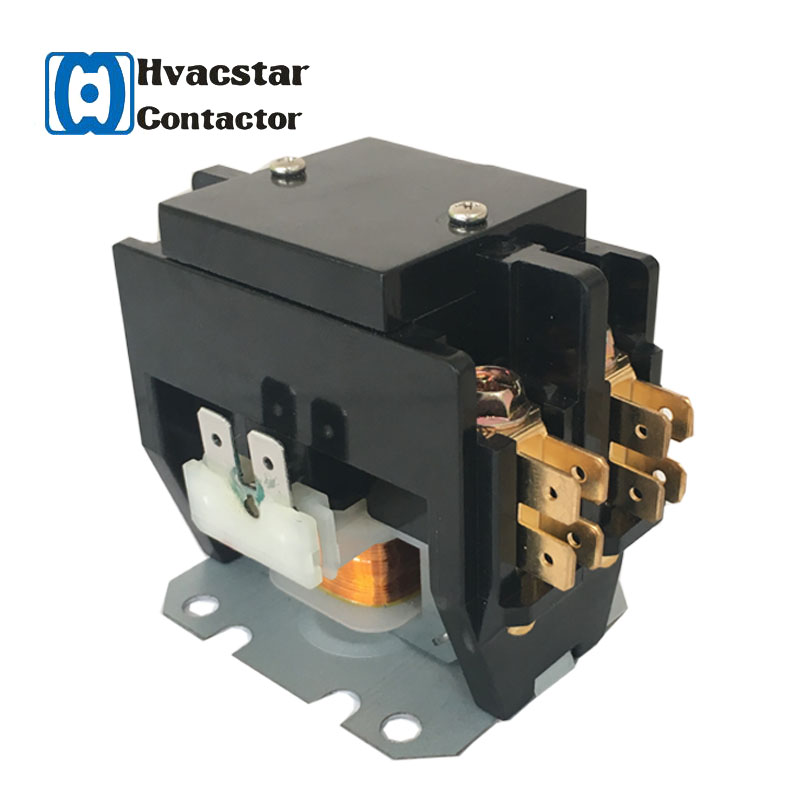

2-Pole 25A 240V AC Magnetic Contactor
This 2-pole magnetic contactor is rated for 25A at 240V AC. It is suitable for switching electrical circuits in HVAC&R systems.
Technical Specifications
Product Overview
High-Performance Definite Purpose Contactor
This 2-Pole 25A magnetic contactor is engineered for reliable switching in HVAC&R and air conditioning systems. It features a compact design with versatile wiring options, including quick connect terminals and screws, to ensure easy installation. UL certified and built with high-quality silver alloy contacts, it provides durable performance for controlling compressors, fans, and other electrical loads.
Electrical Ratings
Full Load Amps (FLA)
25 A
Full Load Current
25A Model Load Ratings
| Voltage (VAC) | Locked Rotor Amps (LRA) | Resistive Amps (RES) |
|---|---|---|
| 240/277V | 150 | 35 |
| 480V | 125 | 35 |
| 600V | 100 | 35 |
- Line Voltage
- 240 V
- Number of Poles
- 2-Pole
Coil Specifications
Coil Performance (60Hz)
| Parameter | Value |
|---|---|
| Inrush VA | 60 VA |
| Sealed VA | 6.0 VA |
| Insulation Class | 130°C Class B |
| Frequency | 50/60Hz |
Installation & Connectivity
Wiring Requirements
- Wire Size: 16-8 AWG
- Recommended Torque: 25 in. lbs
- Power Terminals: Dual .250 Quick Connects
- Coil Terminals: Dual .250 Quick Connects
- Connection Methods
- Quick Connect TerminalsScrewsBox LugsHex HeadSlottedPhillips
Environmental & Physical
- Ambient Operating Temperature
- -40°C to 65°C (-40°F to 150°F)
- Approximate Weight
- 0.45 kg
Compliance & Features
Certifications
UL ListedcULIEC 60947-4-1
Contact Materials
- Silver Cadmium Oxide
- Silver Tin Oxide Indium Oxide
Auxiliary Components
Available Auxiliary Switches
- One SPDT Switch Per Side
- Two SPDT Switches Per Side
- 1 NO / 1 NC Configuration
- Normally Open / Normally Closed options
