16A 250V Modular Contactor
This modular contactor is designed for remotely controlling circuits. It features a compact design and reliable performance for switching electrical loads.
Technical Specifications
Overview

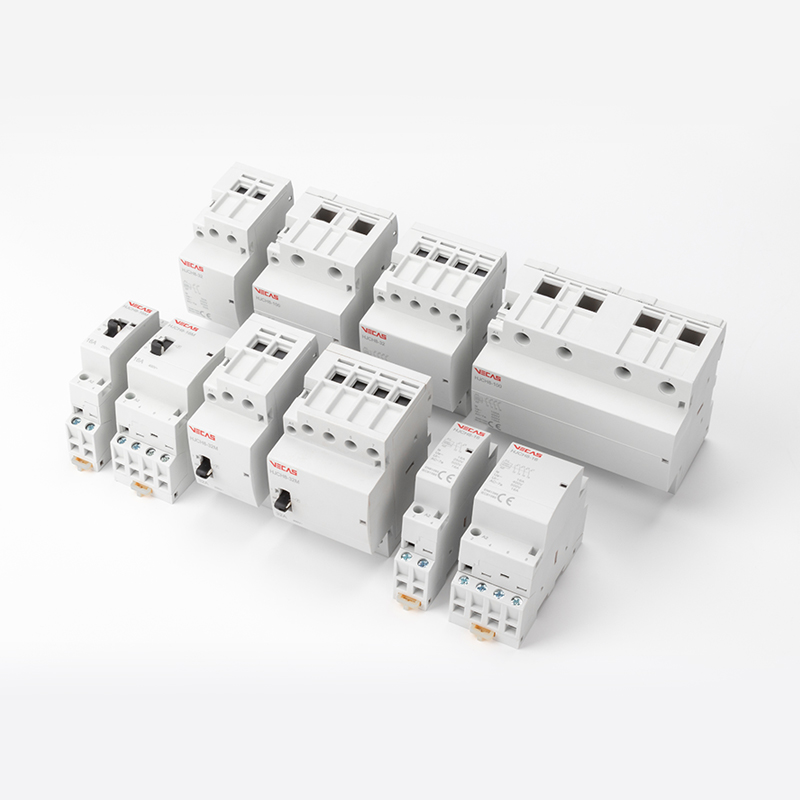

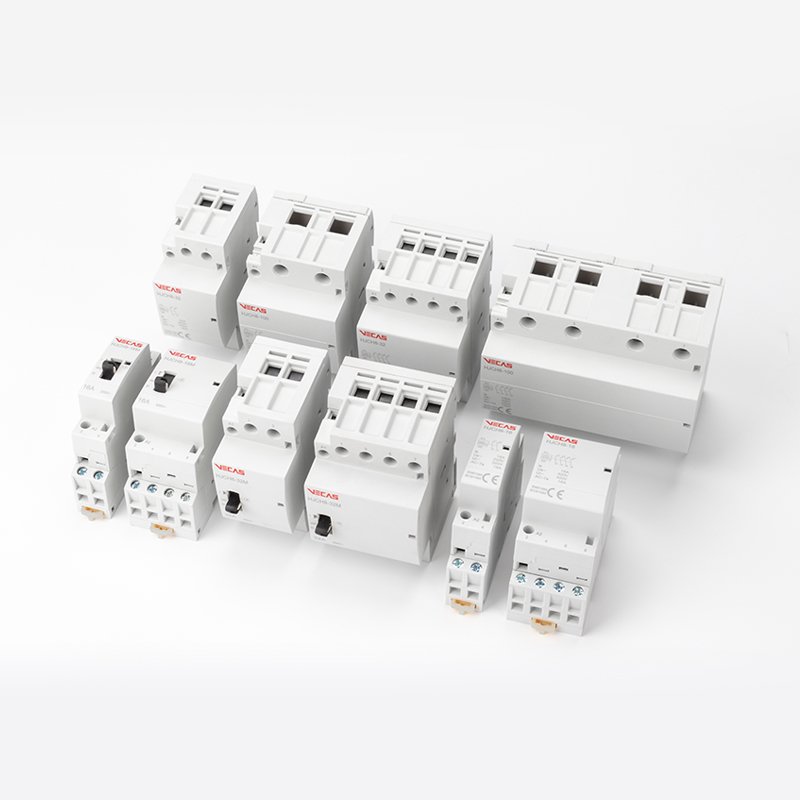

Modular AC Contactor
This modular contactor is designed for reliable remote switching and control of electrical loads, including heating systems, household appliances, and motors. Engineered for versatility, it supports AC 50/60Hz operations with a compact design suitable for DIN-rail mounting. It is an ideal solution for residential, commercial, and industrial electrical distribution boards.
Electrical Specifications
Rated Current
- 16
- 20
- 25
- 32
- 40
- 63
- 100
- Rated Voltage
- 400 V
- Rated Insulation Voltage (Ui)
- 500 V
- Utilization Categories
- AC-1AC-7aAC-7b
Mechanical & Environmental
Ingress Protection
IP20
- Available Pole Configurations
- 1P2P3P4P
- Mounting Type
- TH35-7.5 Steel DIN-Rail
- Operating Temperature Range
- 5°C to +40°C
- Pollution Class
- 2
Compliance & Features
Certifications
CBCERoHS
- Standards Compliance
- EN61095IEC61095
