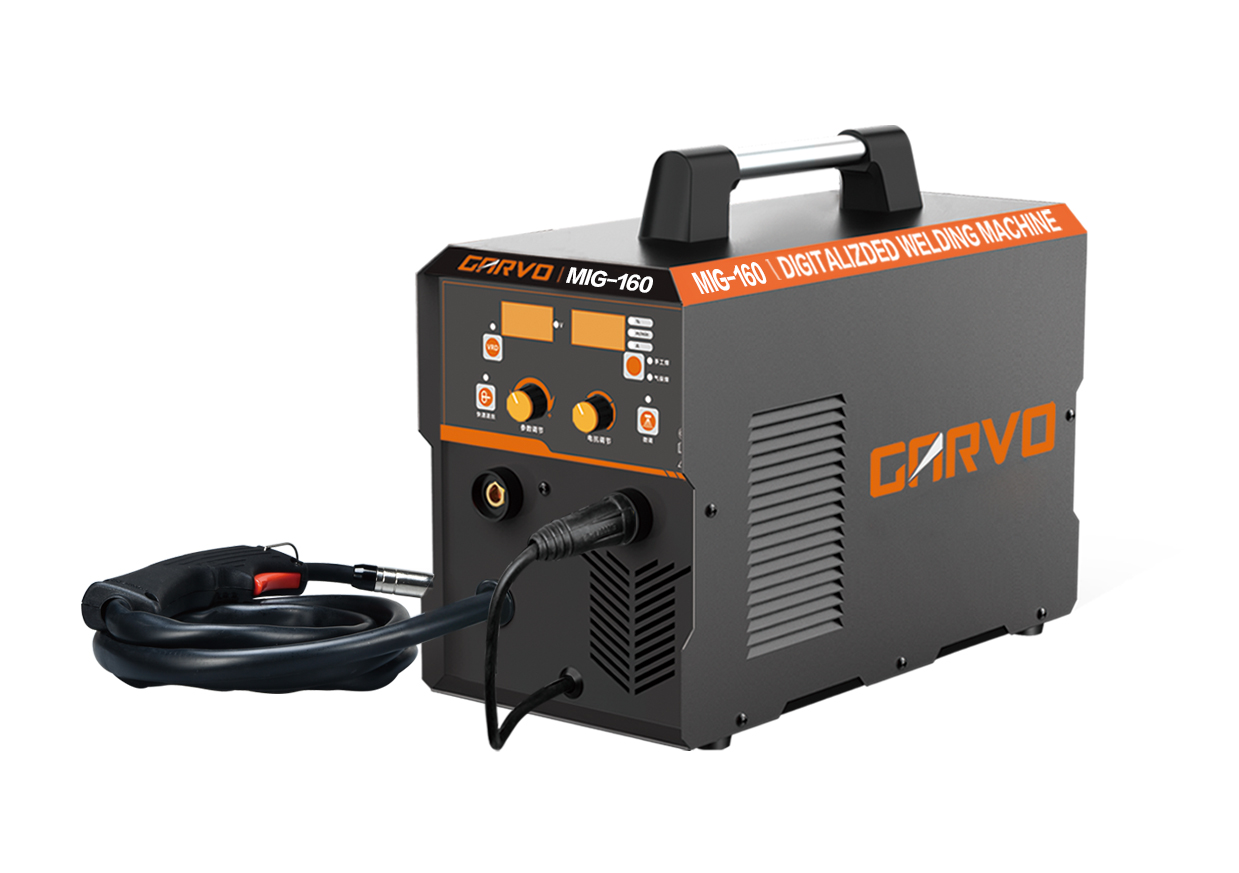

160A Inverter MIG Welder
The 160A Inverter MIG Welder is a compact and powerful welding solution. It utilizes inverter technology to provide a stable and efficient welding arc for clean and precise welds.
Technical Specifications
Overview
Versatile 160A Inverter Welding Solution
This 160A Inverter Welding Machine offers dual-functionality with both MIG and MMA welding capabilities, making it a versatile tool for various metal fabrication tasks. Designed with user-friendliness in mind, it features convenient controls for adjusting output voltage, current, and wire speed simultaneously, ideal for both new and experienced operators. Its compact, lightweight design ensures portability, while advanced inverter technology provides excellent arc strike performance and stable welding results even on rusted surfaces.
Performance Metrics
Key Welding Metrics
160 A
Max Current (MIG)
140 A
Max Current (MMA)
60 %
Duty Cycle
Technical Specifications
Electrical Data
| Parameter | MIG Mode | MMA Mode |
|---|---|---|
| Input Voltage | 220V ±15% | 220V ±15% |
| No-load Voltage | 65±5V | 65±5V |
| Rated Input Power | 4.4 KW | 4.5 KW |
| Rated Input Current | 20A | 20.5A |
Wire Diameter Range
- MIG: 0.6-0.8 mm
- MMA: 1.6-3.2 mm
- Supported Materials & Wire
- Flux-cored wireCarbon steel wire
Safety & Standards
Protection & Insulation
IP21SClass F Insulation
- Power Factor
- 0.8
