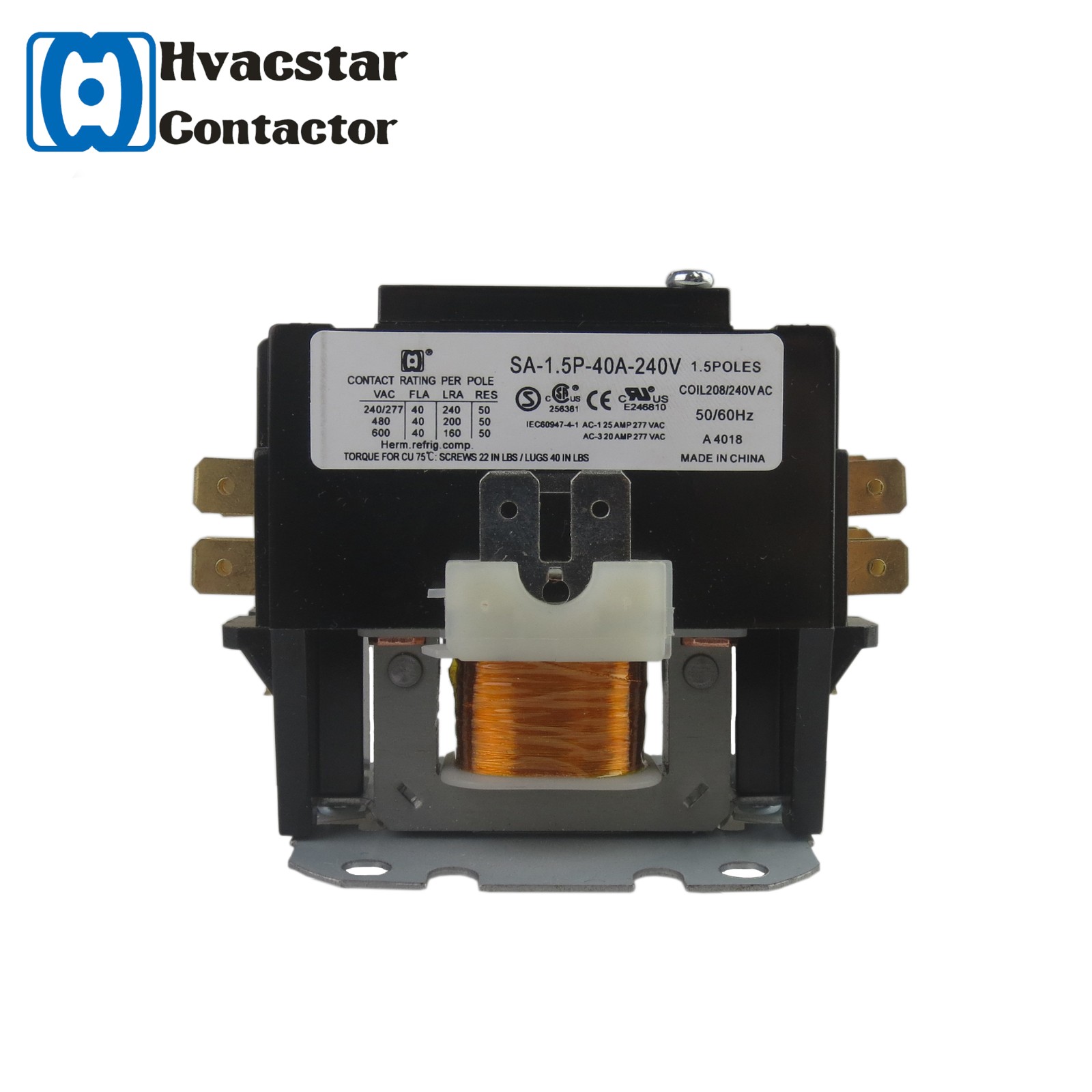

1.5 Pole AC Magnetic Contactor 208/240V for HVAC
This 1.5 pole AC magnetic contactor is designed for air conditioning applications. It features a 208/240V coil and a classic SA type configuration.
Technical Specifications
Overview
Reliable HVAC Switching Solution
This 1.5-pole AC magnetic contactor is engineered for demanding HVAC and refrigeration applications, offering robust performance in a compact design. It features a universal metal mounting plate for easy installation and is built to withstand rigorous operation with high electrical and mechanical life ratings. Designed for efficiency, the unit utilizes an EE magnet assembly to optimize performance while maintaining low power consumption.
Technical Specifications
Electrical Contact Ratings
| Voltage (VAC) | FLA (A) | LRA (A) | RES (A) |
|---|---|---|---|
| 240 | 40 | 240 | 50 |
| 480 | 40 | 200 | 50 |
| 600 | 40 | 160 | 50 |
- Coil Voltage
- 208/240V AC
- Frequency
- 50/60 Hz
- Pole Configuration
- 1.5 Pole
Performance & Durability
Life Cycle Ratings
250,000 cycles
Electrical Life
1,000,000 cycles
Mechanical Life
- Compliance Standards
- ARI 780/790IEC60947-4-1
Installation & Maintenance
Torque Specifications
- Screws: 22 in-lbs (CU 75°C)
- Lugs: 40 in-lbs
- Mounting
- Universal metal mounting plate
