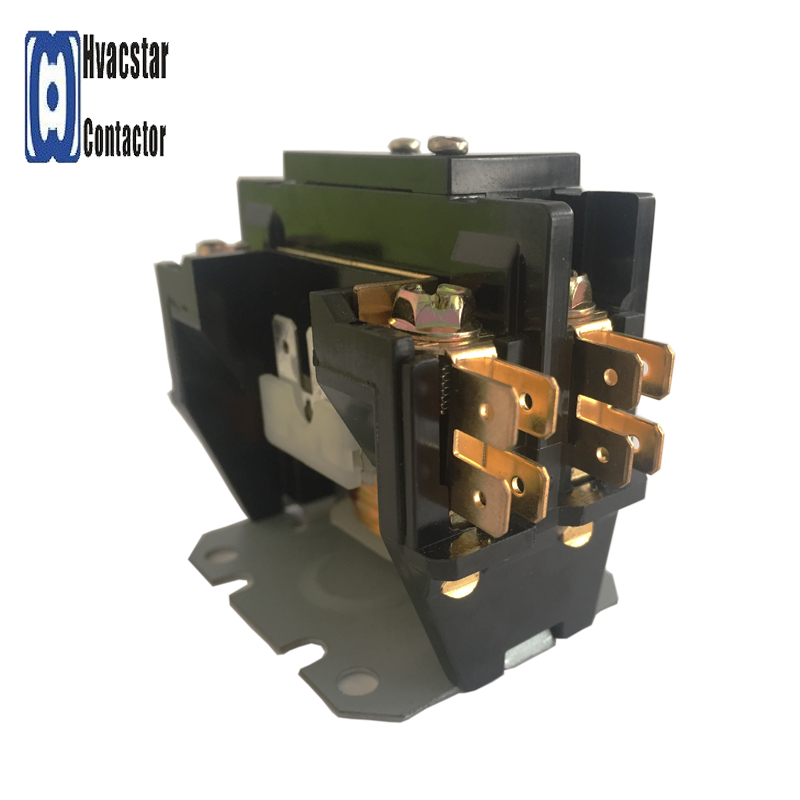

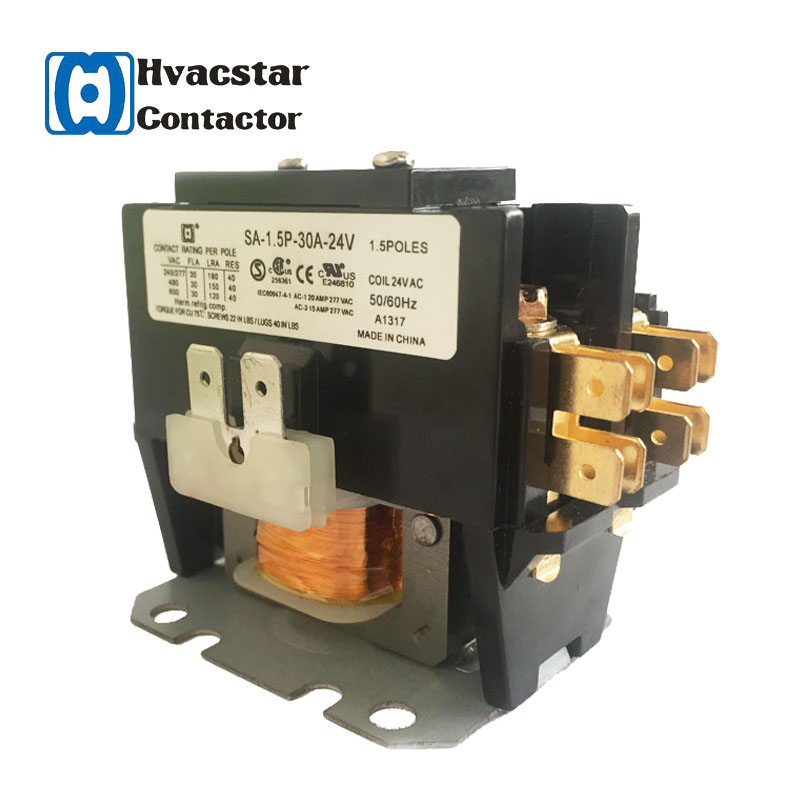

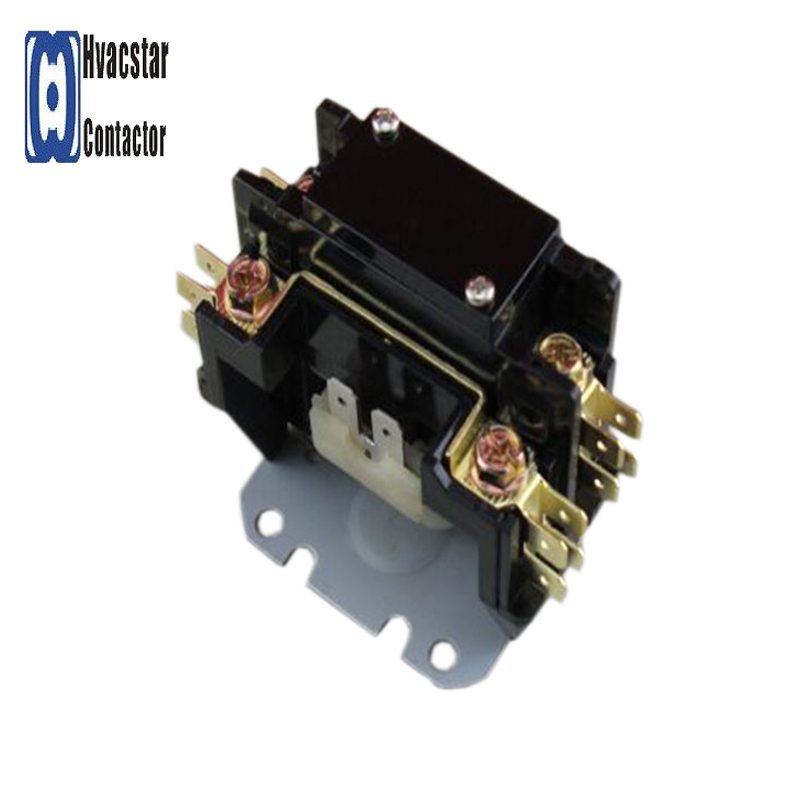

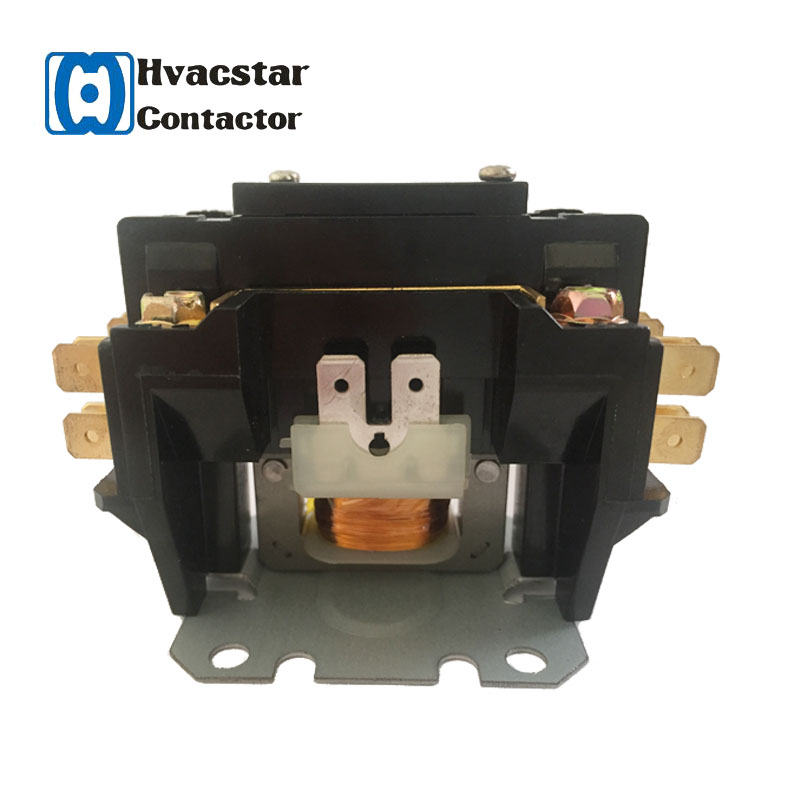

1.5-Pole 24V 30A Magnetic AC Contactor
This 1.5-pole magnetic AC contactor is designed for household applications. It operates on a 24V coil voltage and is rated for 30 Amps.
Technical Specifications
Overview
High-Performance Magnetic AC Contactor
This 1.5-pole magnetic AC contactor is engineered for reliable switching in HVAC and refrigeration applications. Built with high-quality silver cadmium oxide contacts, it ensures durability and consistent performance under demanding electrical loads. The unit is fully certified to meet international safety standards, making it a dependable choice for residential and light commercial equipment.
Electrical Specifications
- Coil Voltage
- 24 VAC
- Full Load Amps (FLA)
- 30 A
- Resistive Amps
- 40 A
- Number of Poles
- 1.5
Performance Metrics
Locked Rotor Amps (LRA)
180 A
at 240V
150 A
at 480V
120 A
at 600V
Physical and Environmental
- Operating Temperature
- -40°C to +65°C (-40°F to +150°F)
- Termination Type
- #10-32 screw
- Contact Material
- Silver Cadmium Oxide

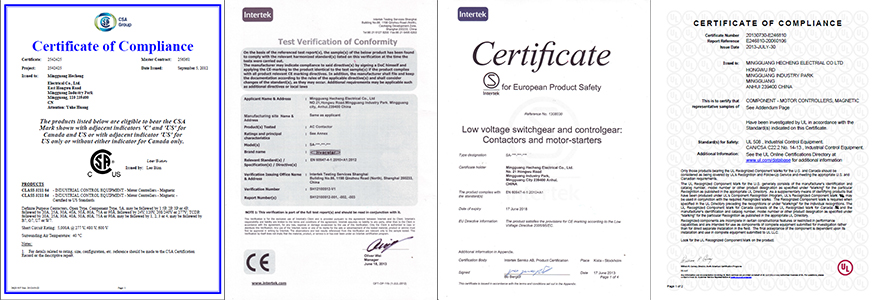

Compliance
Certifications
UL ListedCSAS MARKCCC Approved
