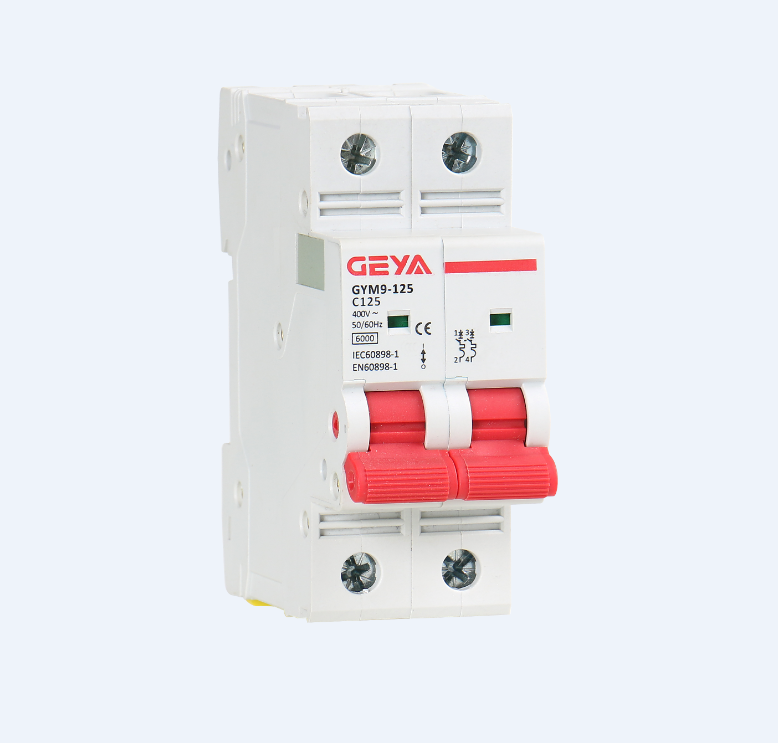

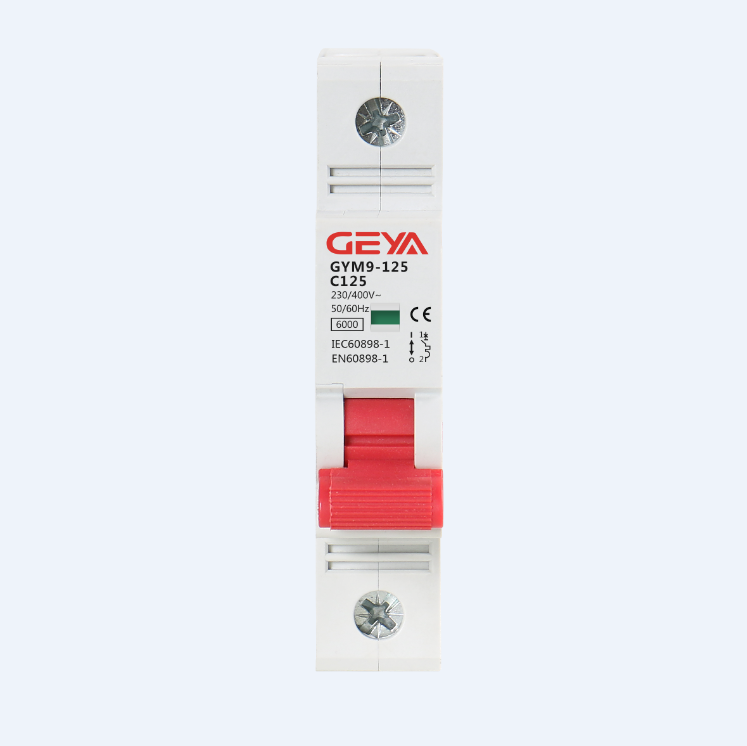

125A Miniature Circuit Breaker
This miniature circuit breaker is designed for circuit protection in residential, commercial, and industrial applications. It is rated for 230/400V~, 50/60Hz operation and compliant with IEC60898-1 and EN60898-1 standards.
Technical Specifications
Overview
Professional Circuit Protection
This miniature circuit breaker is a robust solution designed for reliable overload and short-circuit protection in residential, commercial, and industrial electrical systems. Engineered for versatility, it supports 230V/400V AC operations at 50/60Hz and is suitable for both frequent protection tasks and infrequent on-and-off switching. Its high-quality construction ensures safety and compliance with international standards, making it an essential component for high-rise and infrastructure projects.
Electrical Ratings
Rated Current
125 A
Rated Current
- Rated Voltage
- 230/400V AC
- Frequency
- 50/60Hz
Performance
- Breaking Capacity
- 6000 A
- Trip Characteristic
- C Curve
Compliance
- Standards & Certifications
- IEC60898-1EN60898-1CE
Applications
Typical Applications
- Residential Buildings
- Commercial Complexes
- Industrial Facilities
- High-rise Buildings
