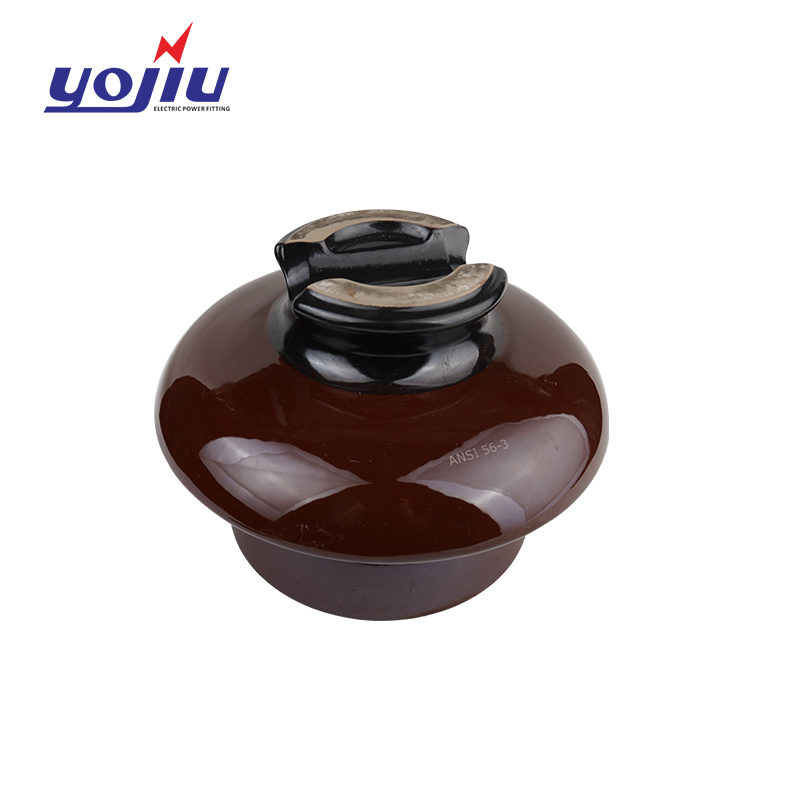

11KV Porcelain Electrical Insulator
This 11KV porcelain electrical insulator provides insulation and mechanical support for conductors. It is suitable for string, standoff, and pin-type applications.
Technical Specifications
Overview
High-Voltage Porcelain Insulator Solutions
This 11KV porcelain electrical insulator is engineered for reliable performance in power transmission and distribution networks. It provides essential mechanical support and electrical insulation for conductors, effectively preventing current leakage and maintaining safe clearances. Designed for versatility, it is suitable for string, standoff, and pin-type applications in various utility environments.
Technical Specifications
Voltage Rating
11 KV
Rated Voltage
- Insulator Configurations
- StringStandoffStrainPin TypeDisc
- Material
- High-durability Porcelain
- Standard Compliance
- ANSI 56-3
Applications
Suitable Networks
- Power Transmission Systems
- Distribution Networks
- Utility Infrastructure
- Cable and Fiber Optic Networks
- Overhead Line Fittings
Quality & Certification
Certifications
CEISO 9001ULBVSGS
Service & Logistics
Service Capabilities
| Service Type | Details |
|---|---|
| OEM Service | Available |
| Samples | Free samples provided |
| Lead Time | Approx. 15 days for large orders |
| Warranty | 1 Year |
