110kV Three-Phase Oil-Immersed Power Transformer
This 110kV transformer is characterized by its compact size, light weight, and high efficiency, resulting in reduced power grid loss and operational costs. It ensures dependable operation with low noise and minimal energy waste.
Technical Specifications
Overview
High-Efficiency 110kV Power Transformer

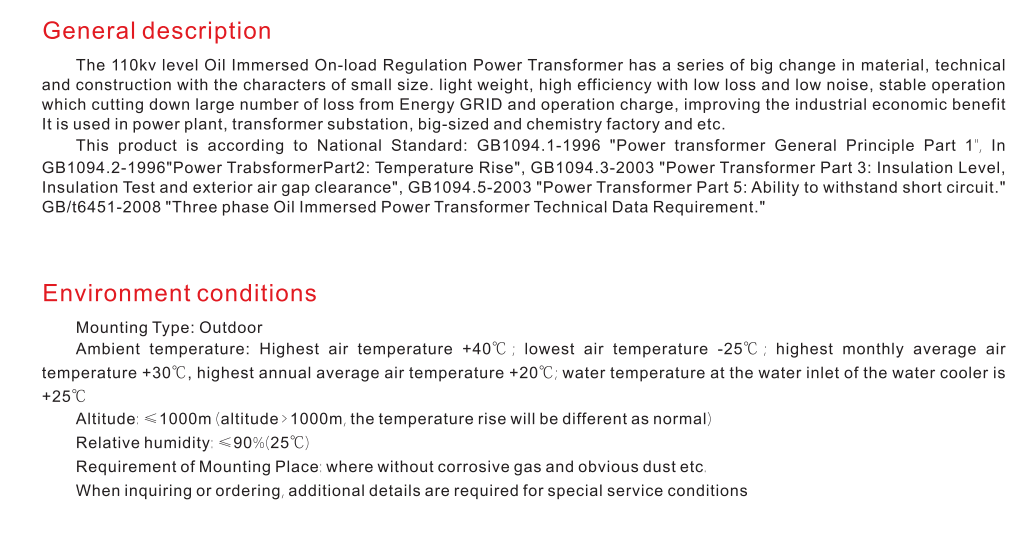

This 110kV three-phase oil-immersed power transformer is engineered for reliable voltage regulation in power transmission and distribution networks. Featuring advanced on-load tap changer technology, it enables seamless voltage adjustments without interrupting power supply. Its robust, compact, and lightweight design is optimized for high efficiency, low noise, and minimal grid losses, making it an ideal solution for substations, power plants, and large-scale industrial facilities.
Standards & Compliance
- National Standards Compliance
- GB1094.1-1996GB1094.2-1996GB1094.3-2003GB1094.5-2003GB/T6451-2008
Operating Environment
Operating Conditions
- Mounting Type: Outdoor
- Ambient Temperature: -25°C to +40°C
- Average Monthly Temp: ≤+30°C
- Average Annual Temp: ≤+20°C
- Altitude: ≤1000m
- Relative Humidity: ≤90% (at 25°C)
Technical Specifications
Key Performance Metrics
110 kV
Rated Voltage
6,300 kVA
Min Rated Capacity
180,000 kVA
Max Rated Capacity
Performance Data Summary (S10 Series)
| Capacity (kVA) | No-Load Loss (kW) | Load Loss (kW) | Impedance Voltage (%) |
|---|---|---|---|
| 6,300 | 8.37 | 34.2 | 0.77 |
| 10,000 | 11.88 | 50.35 | 0.72 |
| 25,000 | 23.4 | 104.5 | 0.62 |
| 63,000 | 46.8 | 222.3 | 0.48 |
