10kV Indoor Single Phase Epoxy Resin Current Transformer

This 10kV indoor current transformer is designed for single-phase systems. The post-type CT is constructed with epoxy resin, offering insulation and mechanical strength.

Request a Quote Download PDFPDF

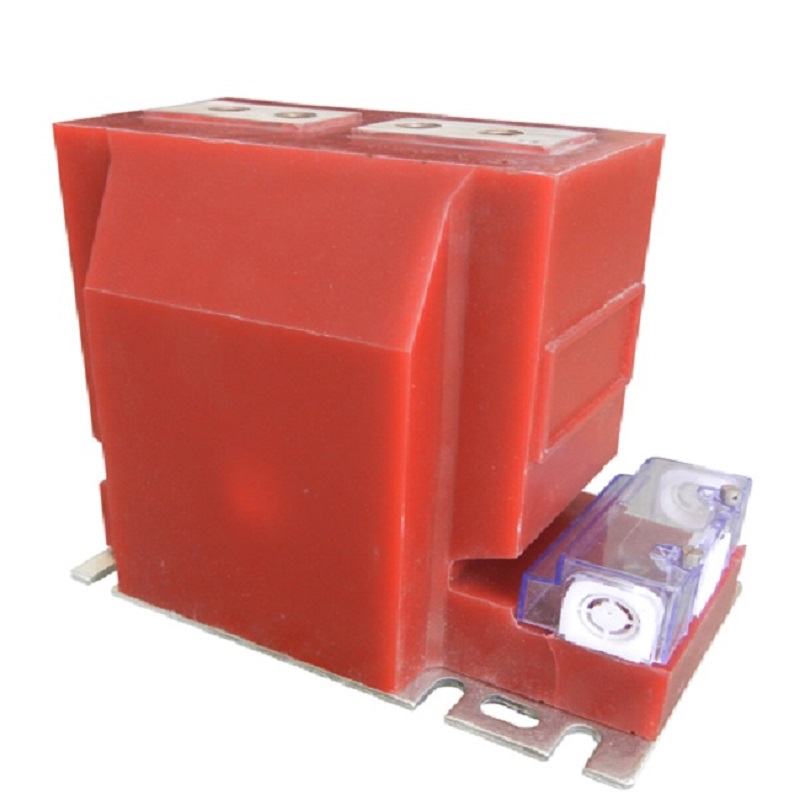

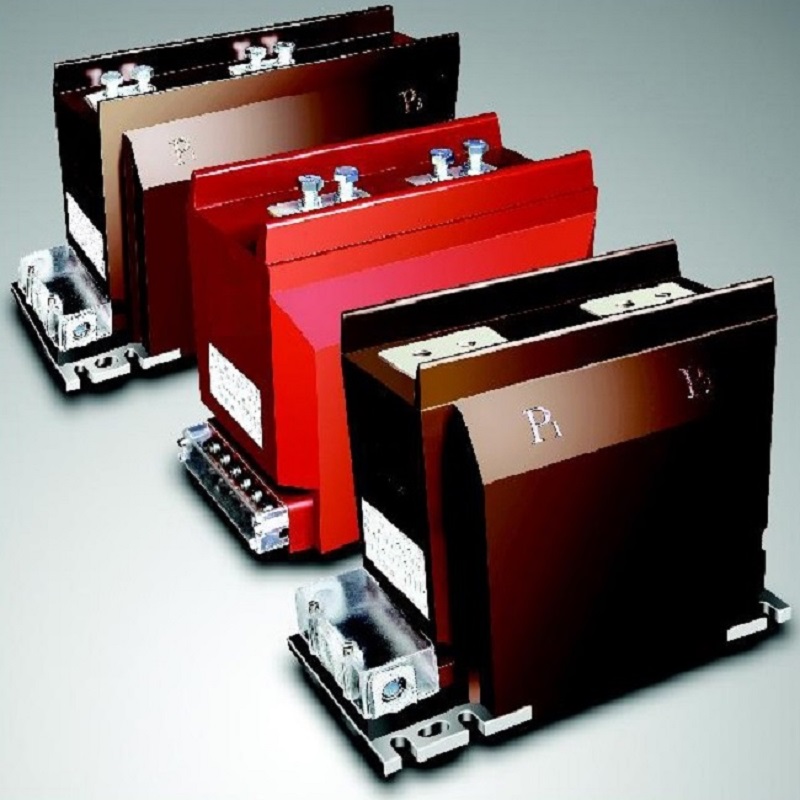

Lzzbj9-10 10kv Indoor Single Phase Epoxy Resin Post Type CT Current Transformer - Image 1

Technical Specifications

Product Overview

High-Performance Indoor Current Transformer

The LZZBJ9-10 is a specialized 10kV indoor single-phase current transformer engineered for reliable current measurement and protection in medium voltage power systems. Constructed with high-quality epoxy resin, this post-type transformer offers superior insulation and robust mechanical strength for demanding indoor environments. It is an essential component for switchgear and control panels, ensuring accurate monitoring of electrical transmission and distribution.

Technical Specifications

Installation Environment

Indoor

Available Model Variants

A1Q
A1G
A2Q
A2G
A4G
A5G
B
C1Q
C2Q/2
C2Q/3
C2Q/4
C3Q/3
C3Q/4
C4Q
C5Q
C6Q/3
C6Q/4

Rated Voltage: 10 kV
Construction Type: Post/Pillar Type
Insulation Material: Epoxy Resin
Design Series: 9
