10kV Dry-Type Current Transformer
This H-class insulated dry-type current transformer offers strong thermal shock resistance and a large overload capacity. It is flame resistant, features low loss and low noise, and is insensitive to humidity and dust.
Technical Specifications
Product Overview

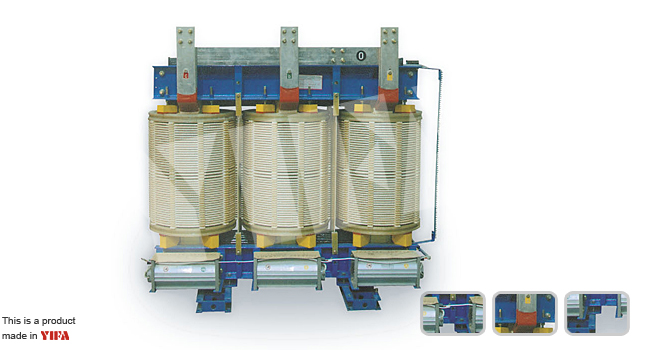

High-Efficiency 10kV Dry-Type Transformer
The SG(B) 10 series represents a modern, environmentally-friendly approach to voltage transformation for 10kV power systems. Designed with H-class insulation, this transformer offers superior thermal shock resistance, high overload capacity, and exceptional fire safety compared to traditional oil-filled models. Its dry-type construction eliminates oil leakage risks and toxic gas emissions, making it an ideal choice for high-requirement environments like airports, hospitals, power plants, and densely populated residential areas.
Key Features
- Safety & Environmental Compliance
- Flame-retardantSelf-extinguishingNon-poisonousLow partial dischargeLow noiseNo harmful gas emissions
Technical Specifications
Operating Metrics
Technical Parameters Table
| Capacity (kVA) | HV (kV) | Connection | Weight (kg) |
|---|---|---|---|
| 200 | 11 | Dyn11 | 1370 |
| 315 | 10 | Yyno | 1790 |
| 500 | 6 | Dyn11 | 2270 |
| 800 | 10 | Dyn11 | 2930 |
| 1250 | 10 | Dyn11 | 3770 |
Reliability
Resistance Capabilities
- Moisture-proof
- Mold-proof
- Salt mist-proof
- High thermal impact resistance
- Insulation Material
- Nomex-based insulation system
