Technical Specifications
Product Overview
High-Performance Circuit Protection

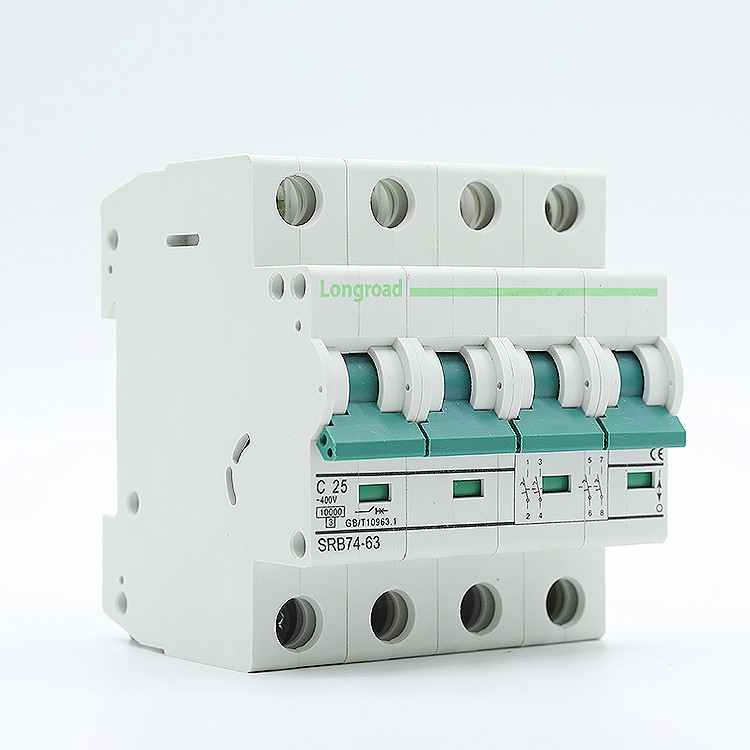

This 10kA Miniature Circuit Breaker (MCB) is engineered for robust overload and short-circuit protection across residential, commercial, and industrial electrical installations. It features a versatile design compatible with standard 35mm DIN rails and includes a clear contact position indicator for enhanced safety monitoring. Built for longevity, the device supports 20,000 mechanical cycles and operates reliably under diverse environmental conditions.
Electrical Specifications
Key Electrical Metrics
10,000 A
Short Circuit Capacity
500 V
Insulation Voltage
4 kV
Impulse Withstand
Available Rated Currents
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Tripping Curves
- B Type (3In-5In)C Type (5In-10In)D Type (10In-20In)
Mechanical & Environmental
IP Rating
IP20
- Mechanical Life
- 20000 cycles
- Electrical Life
- 4000 cycles
Installation & Mounting
Terminal Specifications
| Connection Type | Capacity |
|---|---|
| Cable | 25mm² (18-4AWG) |
| Busbar | 10mm² (18-8AWG) |
- Mounting Method
- DIN rail EN 60715 (35mm)
