100G Variable Frequency Drive
This variable frequency drive is designed for motor speed control in industrial applications. It features a digital panel for monitoring parameters such as frequency, voltage, and current.
Technical Specifications
Product Overview
Advanced Motor Speed Control
The 100G Variable Frequency Drive is designed for precise motor speed regulation, offering high-efficiency performance with low-frequency large torque capabilities. It features a robust design with smooth starting and stable output to ensure optimal motor protection and energy savings. The unit is equipped with a removable control panel for flexible remote installation and operation in various industrial environments.
Key Performance Metrics
Featured Performance
2.2 kW
Max Power
10 A
Max Current
1.3 kg
Net Weight
Technical Specifications
Power and Current Ratings
| Power Rating (kW) | Current Rating (A) |
|---|---|
| 0.4 | 2.4 |
| 0.75 | 4.5 |
| 1.5 | 7 |
| 2.2 | 10 |
Physical Dimensions
- Width
- 90 mm
- Height
- 152 mm
- Depth
- 132.5 mm
Control & Interface
Control Panel Features
- Removable panel for remote control

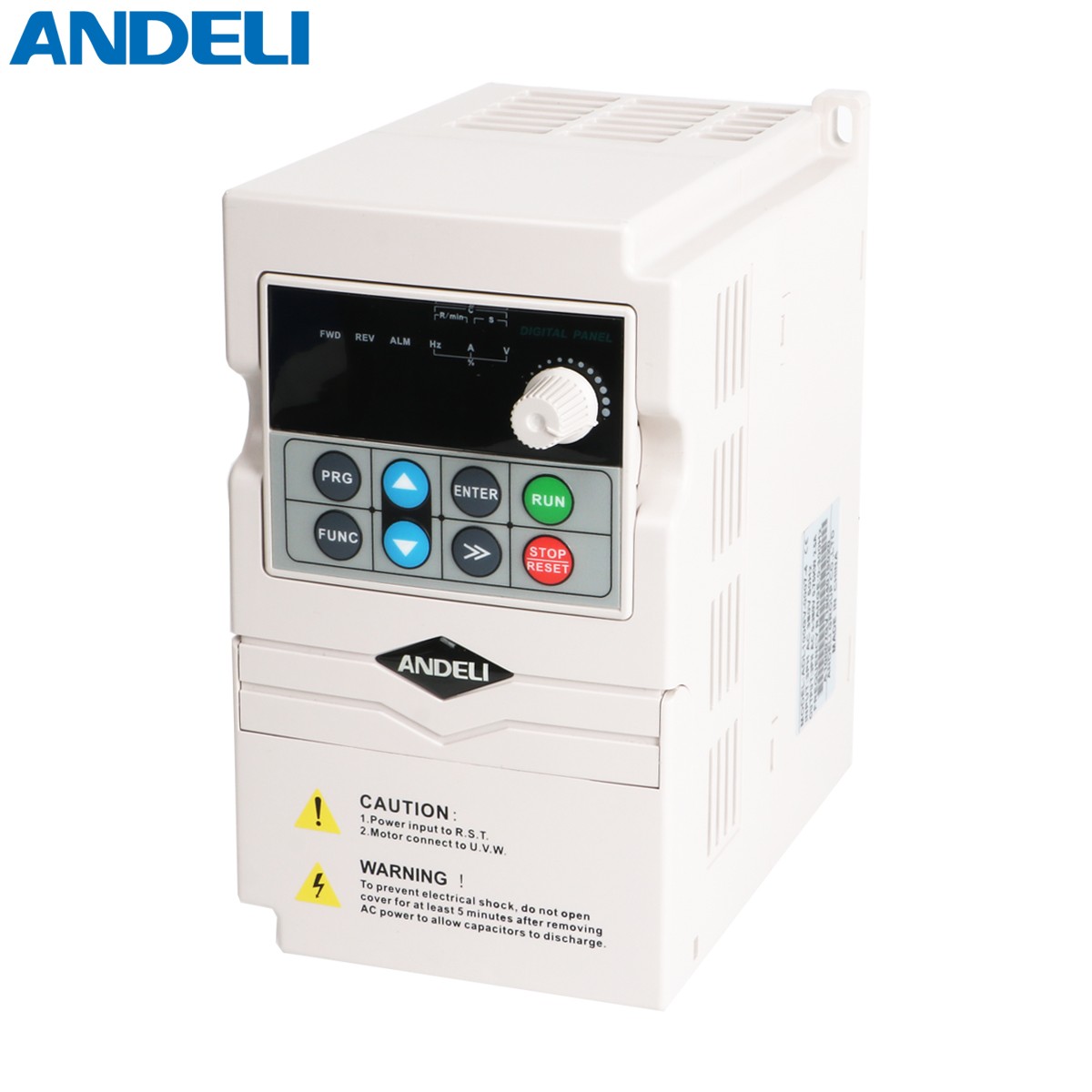

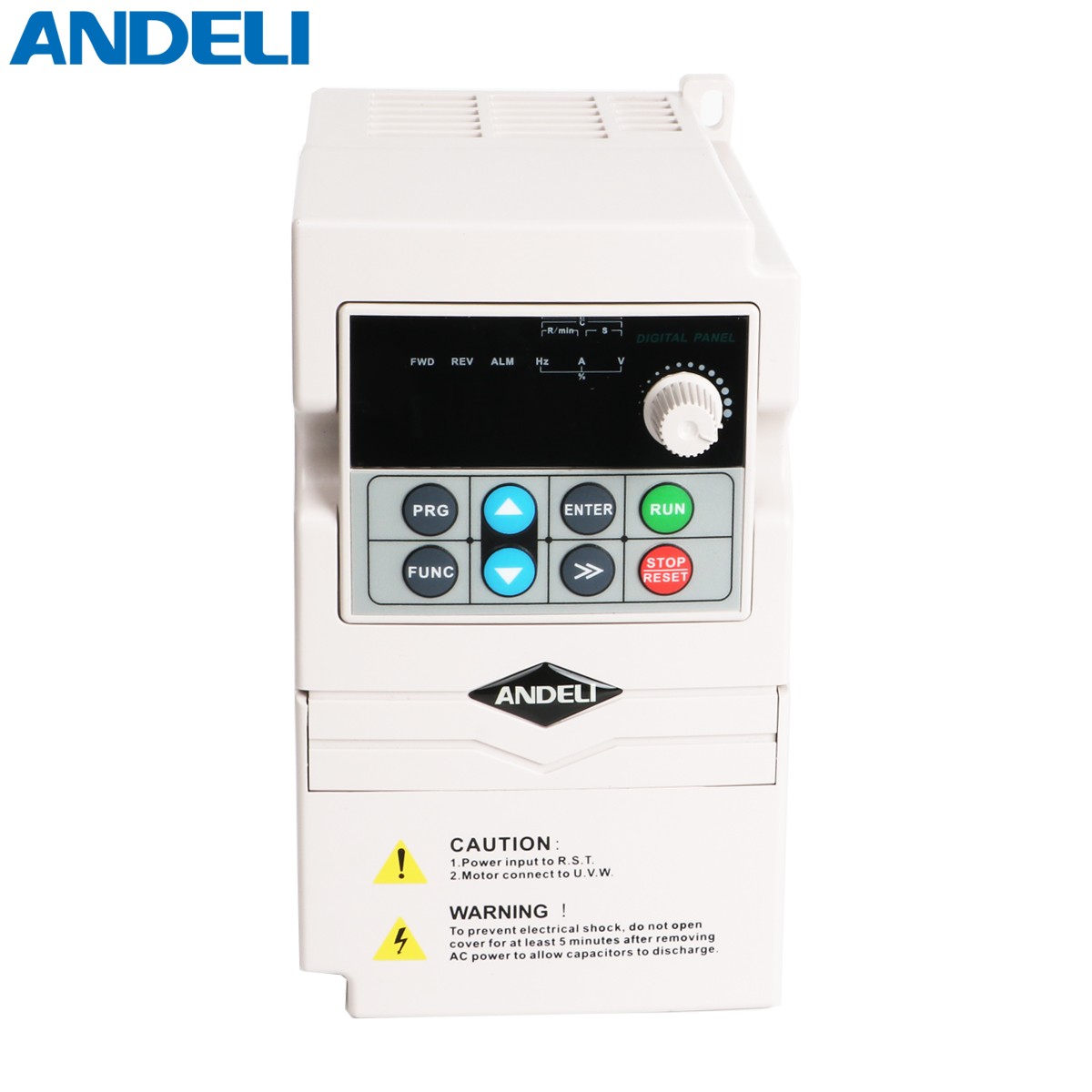

- Digital display for Hz, Voltage, and Current
- Rotary knob for frequency adjustment
- Status indicators (FWD, REV, ALM, RUN)
- Dedicated JOG and Shift functions
Hardware & Safety
- Internal Components
- Infineon IGBT ModuleOriginal ChipsetHigh-Efficiency Circuit Board
- Safety Protocol
- Wait 5 minutes after power-off for capacitor discharge before opening cover
Wiring Configuration
- Power Input Terminals
- R.S.T.
- Motor Output Terminals
- U.V.W.
