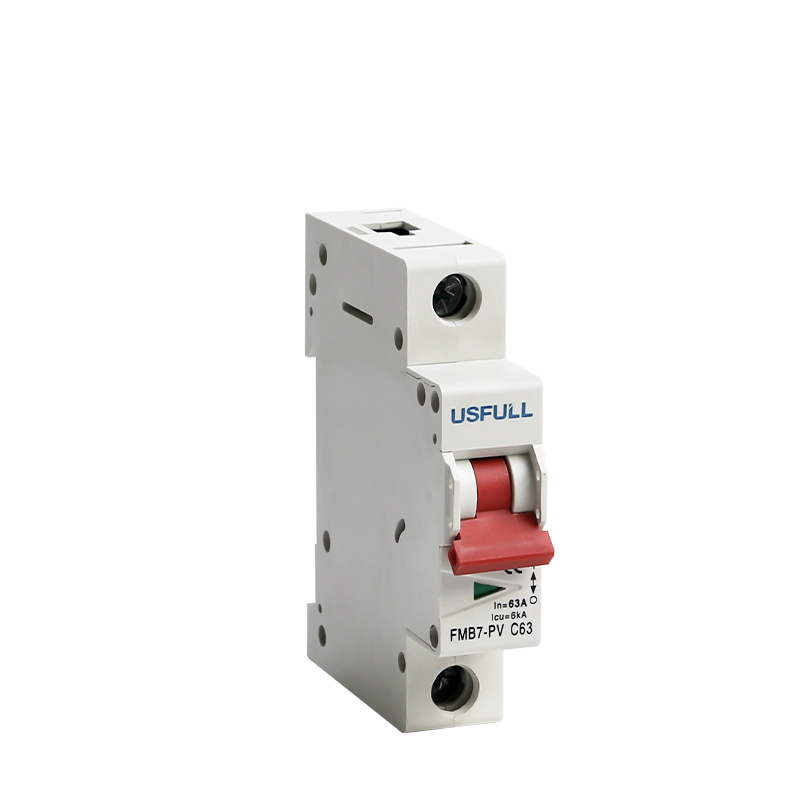

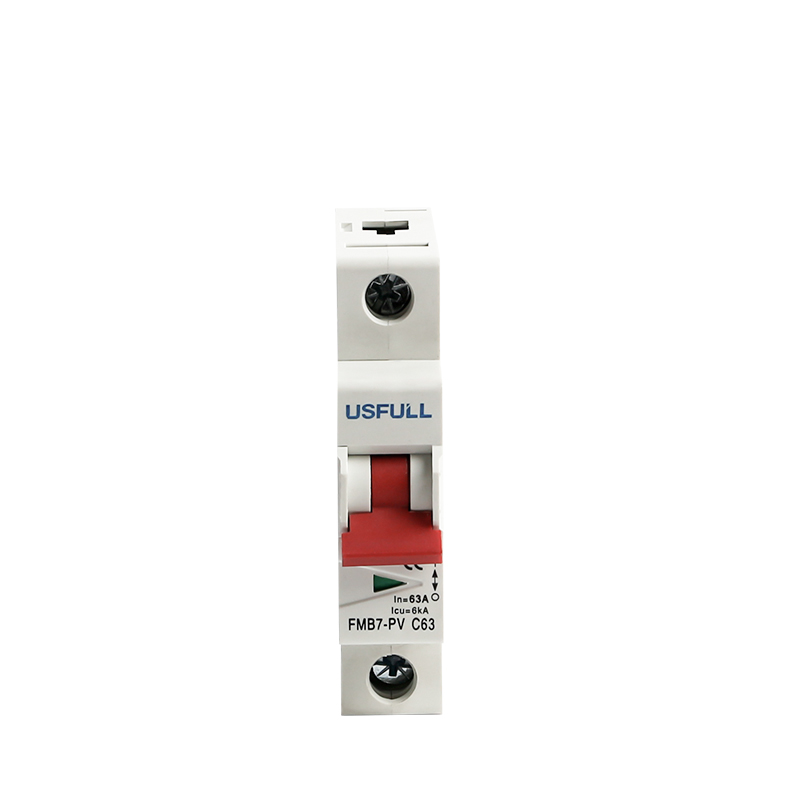

1000V DC Miniature Circuit Breaker for Solar PV Systems
This miniature circuit breaker is designed for DC applications, particularly photovoltaic (PV) systems. Rated for 1000V DC, it provides overcurrent and short-circuit protection.
Technical Specifications
Product Overview
Solar PV Protection
This miniature circuit breaker is specifically engineered for DC applications within photovoltaic systems. It provides critical overcurrent and short-circuit protection, ensuring the safe and reliable operation of solar panel arrays and associated DC infrastructure. With a robust 1000V DC rating and high breaking capacity, it is designed for seamless integration into distribution boards and control panels.
Key Performance Metrics
Rated Voltage
1,000 V DC
Rated Voltage
Breaking Capacity
6 kA
Breaking Capacity (Icu)
Rated Current Options
- 16
- 63
Technical Details
Suitable Applications
Photovoltaic SystemsDC CircuitsDistribution Boards
- Series
- FMB7-PV
- Standards
- IEC Compliant
