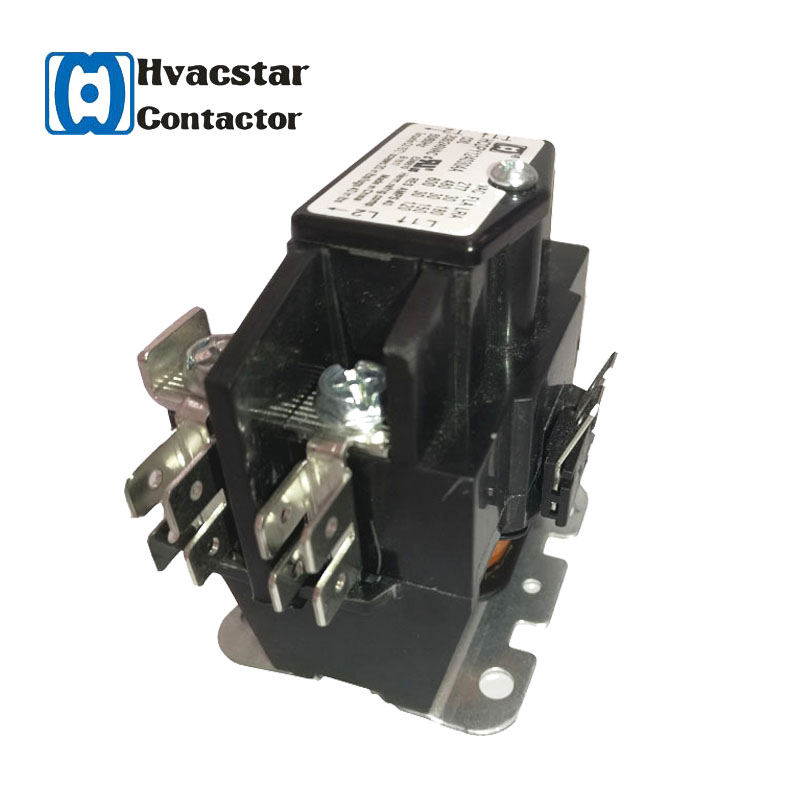

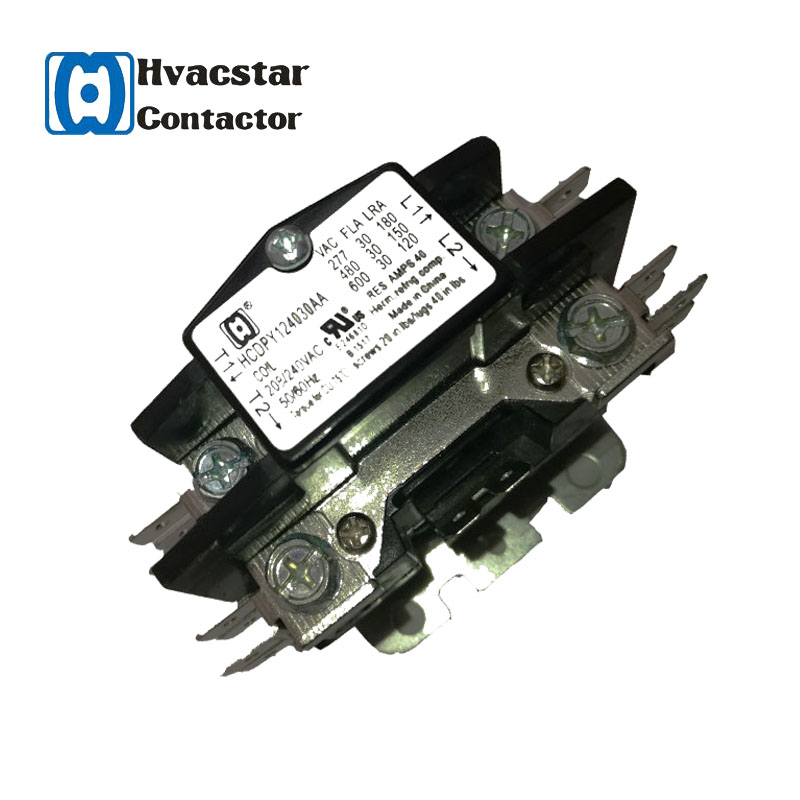

1-Pole HVAC Definite Purpose AC Contactor
This definite purpose contactor is designed for HVAC applications. It offers three convenient methods of wire connection: quick connect terminals, screws, or box lugs.
Technical Specifications
Product Overview
Reliable HVAC Switching
This 1-pole definite purpose AC contactor is engineered specifically for reliable electrical switching in air conditioning and HVAC systems. Designed for durability and performance, it effectively manages electrical loads in demanding environmental conditions. This component ensures consistent operation and safety for residential and commercial cooling equipment.
Electrical Ratings
Rated Current
40 A
Resistive Amps
30 A
Full Load Amps (FLA)
Voltage and Load Table
| Voltage (VAC) | FLA (A) | LRA (A) |
|---|---|---|
| 277 | 30 | 180 |
| 480 | 30 | 150 |
| 600 | 30 | 120 |
Technical Specifications
Torque Specifications
- Control Screws: 20 in-lbs
- Lugs: 40 in-lbs
- Coil Voltage
- 208-240VAC, 50/60Hz
- Pole Configuration
- 1-Pole
Quality Assurance
- Quality Control
- 100% Self-InspectionPre-packing Testing
Order Information
Customization
OEM AvailableODM Available
- Production Lead Time
- 15-20 days after deposit
