1-Pole 30A HVAC Definite Purpose AC Contactor

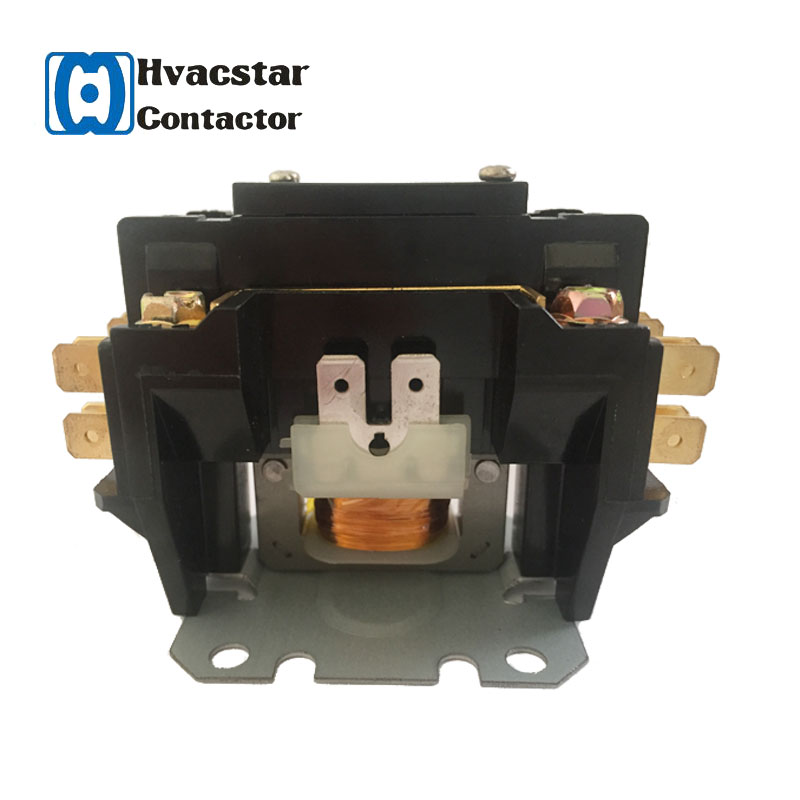

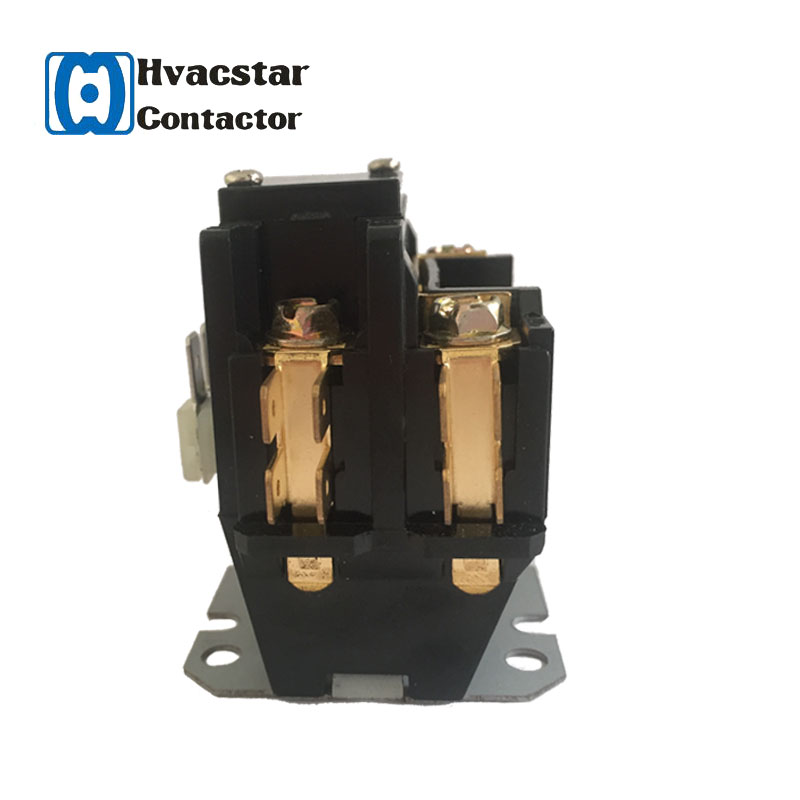

This is a 1-pole, 30A definite purpose AC contactor designed for HVAC applications. It is CUL certified and suitable for switching AC loads in air conditioning and refrigeration systems.
Technical Specifications
Product Overview
High-Performance HVAC Definite Purpose Contactor
This 1-Pole 30A magnetic contactor is engineered for reliable switching in air conditioning, refrigeration, and heating systems. It features a compact design with versatile wiring options including quick connect terminals, screws, or box lugs to simplify installation. Certified for safety and durability, it is a dependable component for controlling compressors, fans, and other inductive loads in demanding B2B HVAC applications.
Electrical Ratings
Contact Rating per Pole
| Voltage (VAC) | FLA (A) | LRA (A) | Resistive (A) |
|---|---|---|---|
| 240/277 | 30 | 180 | 40 |
| 480 | 30 | 150 | 40 |
| 600 | 30 | 120 | 40 |
- Rated Current (FLA)
- 30 A
- Number of Poles
- 1-Pole
- Coil Voltage
- 24VAC
- Frequency
- 50/60Hz
Installation & Physical
Wiring Specs
- Wire Size: AWG 16-8
- Screw Terminal Torque: 22-25 in. lbs
- Box Lug Torque: 40 in. lbs
- Terminal Type: #10-32 Screw
- Connection Methods
- Quick Connect TerminalsScrewsBox Lugs
Environmental & Safety
Compliance & Certifications

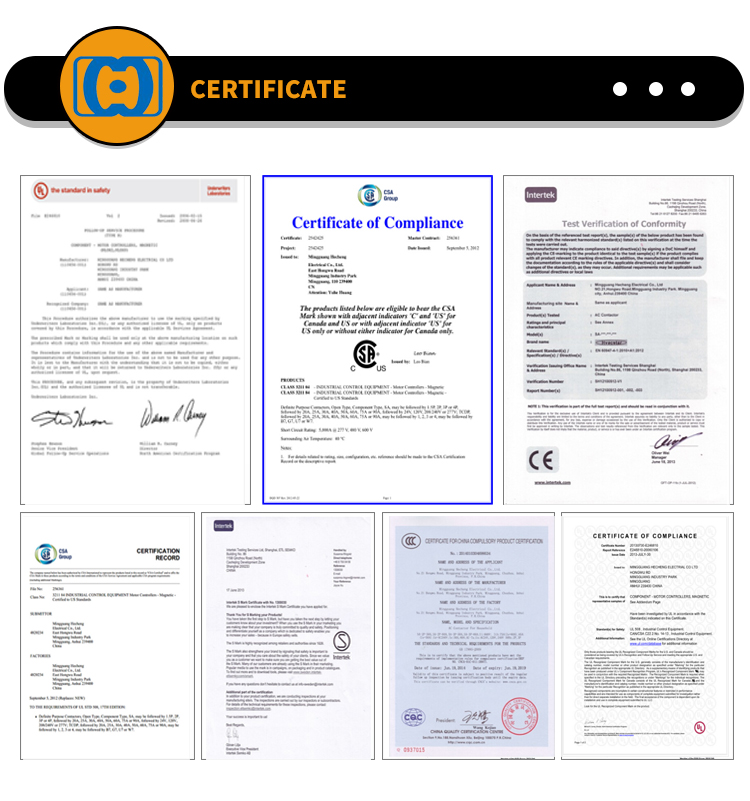

UL ListedCULCSACECCC
- Ambient Temperature Range
- -40°C to 65°C (-40°F to 150°F)
- Insulation System
- 130°C Class B
Service & Support
- Manufacturing Services
- OEM AvailableODM AvailableFree Samples
